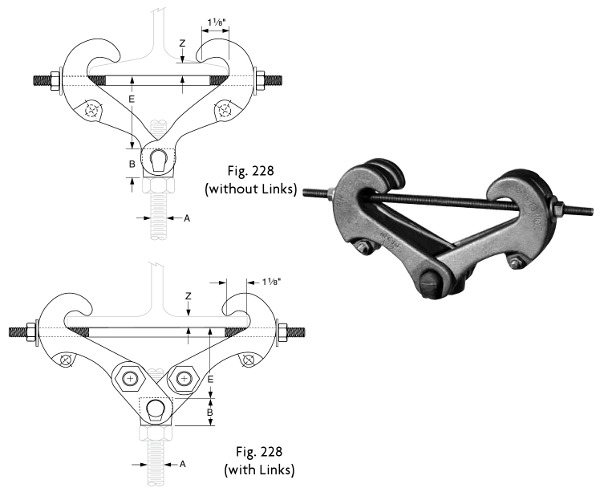

BAXTER-RUTHERFORD ICF, INC Beam ClampsFigure 228 Universal Forged Beam Clamp W/ Upper Nut Right Hand Thread
"• Material: Forged steel • Finish: Plain or Galvanized • For suspension of heavy loads from beams with flange widths to 15"" and flange thickness to 1.031 • Complies with Federal Specification A-A-1192A (Type 28 without links; Type 29 with links), WW-H-171-E (Type 30 & 31), ANSI/MSS SP-69 and MSS SP-58 (Type 28 without links; Type 29 with links) • Installation: Fit jaws over edges of lower beam flange and tighten nuts on tie rod to lock clamp in place • Features: Upper nut is tapped to any specified size up to the maximum rod size • Specify clamp size, figure number, name, rod size and finish • Note: The application of a load to a structural beam by means of a beam clamp produces a transverse stress, perpendicular to the axis of the beam, in the flange to which the load is applied. Size per load, beam flange width and rod size • Contact Edge for Rod Takeout Specs for different beam widths • Clamp sizes 3 and 5 furnished with links" Scroll down for full product description
|
|
| Item # | Clamp Size No. | Unit Of Measure |
Material List for Quote |
Item Specifications
| Item # | Clamp Size No. | Max Rod Size A (in.) | Max Load (lbs.) | Weight (lbs.) | Z Max (in.) | B (in.) | Jaw & Nut Size | Unit Of Measure |
Material List for Quote |
| AV228-1 | 1 | [5/8] | 2,160 | 3.3 | 0.60 | 1[1/16] | 228-1 | Ea. | Add |
| AV228-2 | 2 | [7/8] | 4,480 | 7.0 | 0.60 | 1[3/8] | 228-2 | Ea. | Add |
| AV228-3 | 3 | [7/8] | 4,480 | 10.6 | 0.60 | 1[3/8] | 228-2 | Ea. | Add |
| AV228-4 | 4 | 1[1/2] | 11,500 | 19.3 | 1.031 | 2[3/8] | 228-3 | Ea. | Add |
| AV228-5 | 5 | 1[1/2] | 11,500 | 31.0 | 1.031 | 2[3/8] | 228-3 | Ea. | Add |
