Pipe Supports

Figure 264 Adjustable Pipe Saddle Support

"• Size Range: 2-1?2"" through 36""

• Material: Cast iron saddle, locknut nipple and special cast iron reducer, assembled

• Finish: Plain or Galvanized

• Stanchion type support where vertical adjustment of

stationary pipe is required

• Complies with Federal Specification A-A-1192A (Type 38),

WW-H-171-E (Type 39), ANSI/MSS SP-69 and MSS SP-58 (Type 38)

• Installation: Adjustment is obtained by turning the locknut nipple. The lower end of the nipple is staked, upsetting

the threads to prevent separation of nipple and coupling during adjustment

• Features: Vertical adjustment of approximately 4-1?2""

• Saddle supports a broad range of pipe sizes

• Specify pipe size to be supported, figure number, name and finish

"
Scroll down for full product description

Item # Pipe Size (in.)Unit Of
Measure
 Material
List for Quote
Expand Table to Show All Columns
AV264-1010 Ea. Add
AV264-1212 Ea. Add
AV264-1414 Ea. Add
AV264-1616 Ea. Add
AV264-1818 Ea. Add
AV264-2-1/22[1/2] Ea. Add
AV264-2222 Ea. Add
AV264-2424 Ea. Add
AV264-2626 Ea. Add
AV264-33 Ea. Add
AV264-3-1/23[1/2] Ea. Add
AV264-3030 Ea. Add
AV264-3232 Ea. Add
AV264-3636 Ea. Add
AV264-44 Ea. Add
AV264-55 Ea. Add
AV264-66 Ea. Add
AV264-88 Ea. Add
AV268-2020 Ea. Add
Item Specifications
x

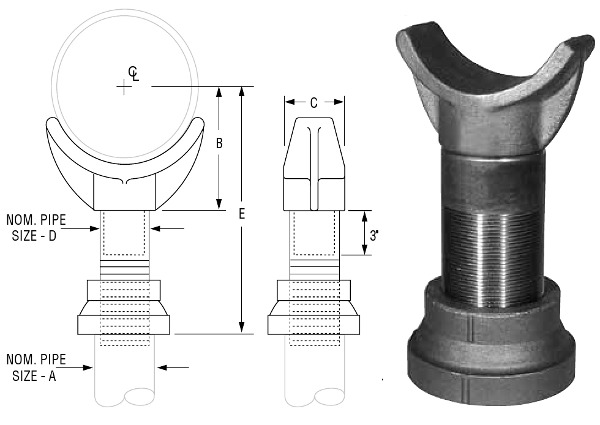

Item # Pipe Size (in.)Weight Complete (lbs.)Weight Saddle Only (lbs.)A (in.)B (in.)D (in.)E Min. (in.)E Max. (in.)Width C (in.)Max Load (lbs.)Unit Of
Measure
 Material
List for Quote
AV264-101025.217.838[1/2]2[1/2]13[1/2]18[1/4]3[5/8]3,800 Ea. Add
AV264-121229.021.639[5/16]2[1/2]1519[3/4]3[5/8]3,800 Ea. Add
AV264-141440.238.0410[15/16]316[1/4]20[3/4]4[5/8]5,300 Ea. Add
AV264-161653.242.0412[3/8]317[3/4]22[1/4]4[5/8]5,300 Ea. Add
AV264-181870.851.0613[7/8]3[1/2]19[1/2]244[5/8]6,700 Ea. Add
AV264-2-1/22[1/2]9.04.82[1/2]3[1/2]1[1/2]81331,800 Ea. Add
AV264-2222121.098.0615[1/2]421[5/16]25[13/16]6[3/4]7.300 Ea. Add
AV264-2424137.0110.0617[15/16]423[3/4]28[1/4]6[3/4]7.300 Ea. Add
AV264-2626154.0130.0618[1/2]424[5/16]28[13/16]6[3/4]7.300 Ea. Add
AV264-339.25.02[1/2]3[3/4]1[1/2]8[1/4]13[1/4]31,800 Ea. Add
AV264-3-1/23[1/2]9.45.22[1/2]41[1/2]8[1/2]13[1/2]31,800 Ea. Add
AV264-3030170.0150.0621[5/16]42731[1/2]6[3/4]7.300 Ea. Add
AV264-3232181.0161.1622[1/2]428[1/4]32[3/4]8[3/4]7.300 Ea. Add
AV264-3636249.0229.0624[1/2]430[1/4]34[3/4]8[3/4]7.300 Ea. Add
AV264-4415.07.634[1/4]2[1/2]9[1/4]143[5/8]3,800 Ea. Add
AV264-5516.78.334[7/8]2[1/2]1014[3/4]3[5/8]3,800 Ea. Add
AV264-6617.710.335[1/2]2[1/2]10[1/2]15[1/4]3[5/8]3,800 Ea. Add
AV264-8820.212.836[7/8]2[1/2]11[3/4]16[1/2]3[5/8]3,800 Ea. Add
AV268-2020104.885.0615[3/8]3[1/2]2125[1/2]6[3/4]6,700 Ea. Add
