BAXTER-RUTHERFORD ICF, INC Steel Pipe ClampsFigure 261 Extension Pipe Or Riser Clamp
"• Size Range: 3?4"" through 24"" • Material: Carbon steel • Finish: Plain, Galvanized or Epoxy coated • For support of stationary steel pipe risers, cast iron pipe or conduit • Product is not intended for use with hanger rods • Maximum Temperature: Plain 650° F, Galvanized and Epoxy 450° F • Complies with Federal Specification A-A-1192A (Type 8) WW-H-171-E (Type 8), ANSI/MSS SP-69 and MSS SP-58 (Type 8). UL, ULC Listed (Sizes 1-1?2"" - 8"") Installation: Clamp is fitted and bolted preferably below a coupling, hub or welded lugs on steel pipe. Bolt torques should be per industry standards • Clamp is designed for standard steel pipe O.D. and this must be considered in sizing the riser for other types of piping. • Specify pipe size, figure number, name and finish" Scroll down for full product description
|
Item # | Pipe Size (in.) | Unit Of Measure |
Material List for Quote |
Item Specifications

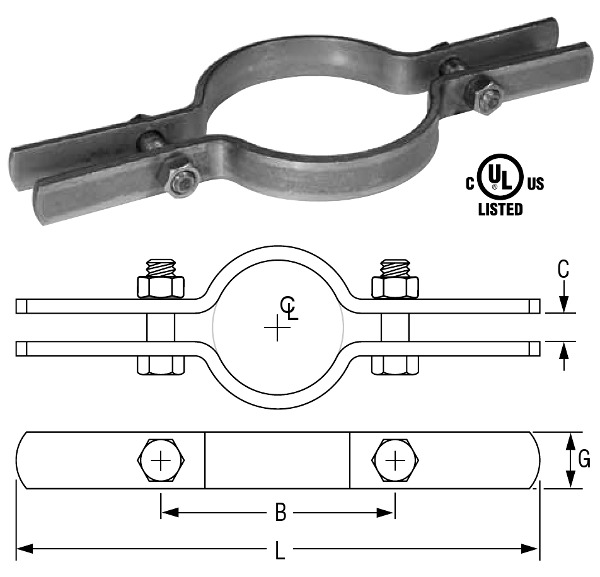

Item # | Pipe Size (in.) | Max Load (lbs.) | Weight (lbs.) | L (in.) | G (in.) | B (in.) | C (in.) | Bolt Diameter (in.) | Torque (ft./ lbs.) | Unit Of Measure |
Material List for Quote |
AV261-1 | 1 | 220 | 1.1 | 8[7/8] | 1 | 3[1/8] | [3/8] | [3/8] | 21 | Ea. | Add |
AV261-1-1/2 | 1[1/2] | 250 | 1.6 | 10[1/4] | 1 | 3[7/8] | [3/8] | [3/8] | 21 | Ea. | Add |
AV261-1-1/4 | 1[1/4] | 250 | 1.6 | 10 | 1 | 3[1/2] | [3/8] | [3/8] | 21 | Ea. | Add |
AV261-1/2 | [1/2] | 45 | 1.1 | 8[7/8] | 1 | 2[7/8] | [3/8] | [3/8] | 21 | Ea. | Add |
AV261-10 | 10 | 2,500 | 11.1 | 20[1/4] | 2 | 13[3/4] | [5/8] | [5/8] | 100 | Ea. | Add |
AV261-12 | 12 | 2,700 | 16.5 | 22[3/4] | 2 | 15[3/4] | [5/8] | [5/8] | 100 | Ea. | Add |
AV261-14 | 14 | 2,700 | 17.7 | 24 | 2 | 17[1/4] | [5/8] | [5/8] | 100 | Ea. | Add |
AV261-16 | 16 | 2,900 | 30.4 | 26 | 2[1/2] | 19[3/4] | [3/4] | [3/4] | 150 | Ea. | Add |
AV261-18 | 18 | 2,900 | 33.8 | 28 | 2[1/2] | 21[3/4] | [3/4] | [3/4] | 150 | Ea. | Add |
AV261-2 | 2 | 300 | 1.7 | 10[1/4] | 1 | 4[1/4] | [1/2] | [7/16] | 32 | Ea. | Add |
AV261-2-1/2 | 2[1/2] | 400 | 1.9 | 11[1/4] | 1 | 4[3/4] | [1/2] | [7/16] | 32 | Ea. | Add |
AV261-20 | 20 | 2,900 | 35.0 | 30 | 2[1/2] | 23[3/4] | [3/4] | [3/4] | 150 | Ea. | Add |
AV261-24 | 24 | 3,200 | 82 | 36[6/4] | 3 | 30 | 1 | [7/8] | 190 | Ea. | Add |
AV261-3 | 3 | 500 | 1.9 | 11[3/8] | 1 | 5[1/2] | [1/2] | [7/16] | 32 | Ea. | Add |
AV261-3-1/2 | 3[1/2] | 600 | 2.3 | 12[7/8] | 1 | 6[1/2] | [1/2] | [1/2] | 46 | Ea. | Add |
AV261-3/4 | [3/4] | 220 | 1.1 | 8[7/8] | 1 | 2[7/8] | [3/8] | [3/8] | 21 | Ea. | Add |
AV261-4 | 4 | 750 | 2.4 | 12[7/8] | 1 | 7 | [1/2] | [1/2] | 46 | Ea. | Add |
AV261-5 | 5 | 1,500 | 3.6 | 13[3/4] | 1[1/2] | 8 | [1/2] | [1/2] | 46 | Ea. | Add |
AV261-6 | 6 | 1,600 | 4.0 | 14[3/4] | 1[1/2] | 9 | [1/2] | [1/2] | 46 | Ea. | Add |
AV261-8 | 8 | 2,500 | 7.6 | 18[1/2] | 1[1/2] | 12 | [5/8] | [5/8] | 100 | Ea. | Add |
