Lindapter TYPE F3 -Pipe/Conduit Support
• Two part flange clamp with large clamping range • Bolt can be substituted with either threaded rod or hook bolts • For parallel flanges only • Malleable iron • Hot dip galvanized finish • WB represents product with bolt • NB represents product without bolt • Contact Edge for detailed specs and design data Scroll down for full product description
|
|
| Item # | Bolt Thread Z | Unit Of Measure |
Price | Material List for Quote | Buy Online |
Item Specifications

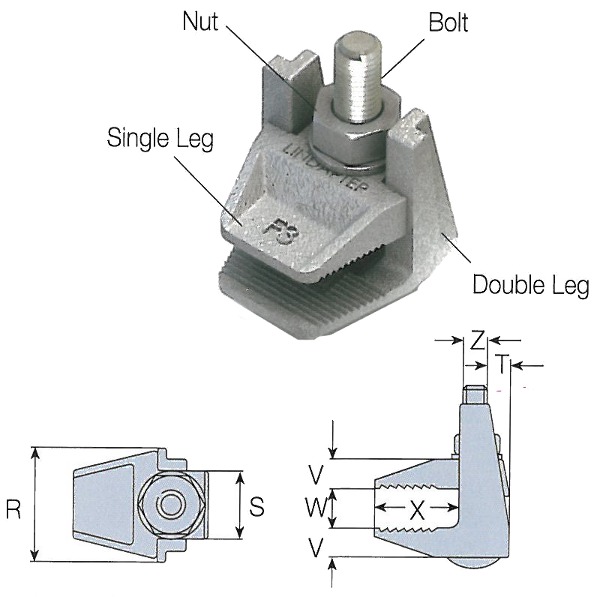

| Item # | Bolt Thread Z | Safe Working Load (4:1 Factor of Safety) Tensile/1 | Clamping Thickness W (Min-Max) | Torque (ft.lb). | Dimensions S | Dimensions T | Dimensions V | Dimensions X | Width R | Unit Of Measure |
Price | Material List for Quote | Buy Online |
| LDLF3037NB | M10 | 270 | [1/16]”-1[3/16]” | 15 | [7/8]” | [5/16]” | [3/8]” | 1” | 1[1/2]” | Ea. | $ 7.60 | Add | Buy |
| LDLF3037WB | M10 | 270 | [1/16]”-1[3/16]” | 15 | [7/8]” | [5/16]” | [3/8]” | 1” | 1[1/2]” | Ea. | $ 7.50 | Add | Buy |
| LDLF3050NB | M12 | 450 | [3/32]”-1[9/16]” | 29 | 1[1/8]” | [3/8]” | [1/2]” | 1[3/8]” | 1[15/16]” | Ea. | $ 11.74 | Add | Buy |
| LDLF3050WB | M12 | 450 | [3/32]”-1[9/16]” | 29 | 1[1/8]” | [3/8]” | [1/2]” | 1[3/8]” | 1[15/16]” | Ea. | $ 13.49 | Add | Buy |
| LDLF3062NB | M16 | 900 | [3/32]”-2[3/16]” | 69 | 1[3/8]” | [1/2]” | [5/8]” | 1[13/16]” | 2[3/8]” | Ea. | $ 19.38 | Add | Buy |
| LDLF3062WB | M16 | 900 | [3/32]”-2[3/16]” | 69 | 1[3/8]” | [1/2]” | [5/8]” | 1[13/16]” | 2[3/8]” | Ea. | $ 24.44 | Add | Buy |
| LDLF3075NB | M20 | 1,350 | [5/32]”-2[3/4]” | 130 | 1[3/4]” | [9/16]” | [3/4]” | 2[3/16]” | 3” | Ea. | $ 45.55 | Add | Buy |
| LDLF3075WB | M20 | 1,350 | [5/32]”-2[3/4]” | 130 | 1[3/4]” | [9/16]” | [3/4]” | 2[3/16]” | 3” | Ea. | $ 52.55 | Add | Buy |
