Lindapter Type HB-Hollo-Bolt - Countersunk HeadHollow Section (HSS) Connection

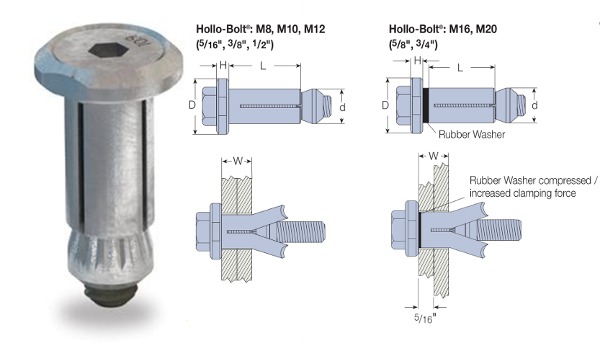

"• Suitable for steel hollow sections, tubes and where access is available from one side only • For corrosion protection, the Hollo-Bolt® comes with additional JS500 protection as standard • Steel, bright zinc plated plus JS500 steel, hot dip galvanized or stainless steel grade 316 • Sizes 5/8"" and 3/4"" have a patented collapse mechanism for optimized clamping force • Standard head style is Hex Head. Also available in Flush Fit, Countersunk and Button Head Security • Contact Edge for detailed specs and design data" Scroll down for full product description
|
|
| Item # | Size Metric (US Equiv.) Z | Bolt Length | Clamping Thickness W | Unit Of Measure |
Price | Material List for Quote | Buy Online |
Item Specifications
| Item # | Size Metric (US Equiv.) Z | Bolt Length | Clamping Thickness W | Outer Ply¹ min t | Sleeve Length (in.) | Outer Ø L | Torque (ft.lb.) | Safe Working Loads (5:1 Factor Of Safety) Tensile | Safe Working Loads (5:1 Factor Of Safety) Single S | Unit Of Measure |
Price | Material List for Quote | Buy Online |
| LDHBCSK08 #1 | M8 ([5/16]”) | 2” | [1/8]”-[7/8]” | 1[3/16]” | [9/16]” | 17 | 899 | 1,124 | Ea. | $ 7.70 | Add | Buy | |
| LDHBCSK08 #2 | M8 ([5/16]”) | 2[3/4]” | [7/8]”-1[5/8]” | 1[5/16]” | [9/16]” | 17 | 899 | 1,124 | Ea. | $ 10.95 | Add | Buy | |
| LDHBCSK10 #1 | M10 ([3/8]”) | 2” | [1/8]”-[7/8]” | 1[3/16]” | [3/4]” | 33 | 1,910 | 2,248 | Ea. | $ 8.43 | Add | Buy | |
| LDHBCSK10 #2 | M10 ([3/8]”) | 3” | [7/8]”-1[5/8]” | 1[7/8]” | [3/4]” | 33 | 1,910 | 2,248 | Ea. | $ 12.41 | Add | Buy | |
| LDHBCSK12 #1 | M12 ([1/2]”) | 2[1/4]” | [1/8]”-1” | 1[3/8]” | [13/16]” | 59 | 2,360 | 3,372 | Ea. | $ 9.77 | Add | Buy | |
| LDHBCSK12 #2 | M12 ([1/2]”) | 3[5/8]” | 1”-1[13/16]” | 2[1/4]” | [13/16]” | 59 | 2,360 | 3,372 | Ea. | $ 13.92 | Add | Buy | |
| LDHBCSK16 #1 | M16 ([5/8]”) | 3” | [1/2]”-1[1/8]” | [5/16]” | 1[5/8]” | 1[1/16]” | 140 | 4,720 | 6,744 | Ea. | $ 17.01 | Add | Buy |
