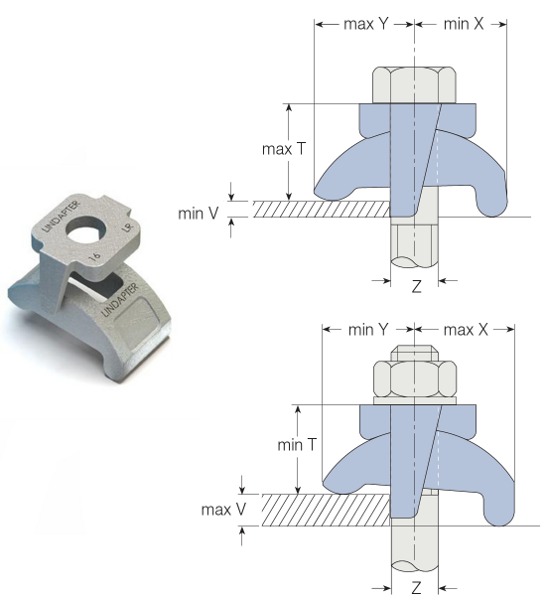

TYPE LR

Self Adjusting Steel Clamp

• Self adjusting clamp for various flange thicknesses and slopes up to 15°

• The leg of the saddle prevents the clamp from rotating during installation

• The LR tail spans slotted holes. For thicker flanges, packings P1 long and P2 long are available

• Malleable iron, bright zinc plated/hot dip galvanized

• Contact Edge for detailed specs and design data

Scroll down for full product description

Item # Grade 5 Bolt Size ZUnit Of
Measure
 Material
List for Quote
Expand Table to Show All Columns
LDLLR037[3/8]” Ea. Add
LDLLR050[1/2]” Ea. Add
LDLLR062[5/8]” Ea. Add
LDLLR075[3/4]” Ea. Add
LDLLR1001” Ea. Add
Item Specifications
x

Item # Grade 5 Bolt Size ZSafe Working Loads (5:1 Factor Of Safety) Tensile/Safe Working Loads (5:1 Factor Of Safety) FrictionTorque (ft./lbs.)Unit Of
Measure
 Material
List for Quote
LDLLR037[3/8]”33015 Ea. Add
LDLLR050[1/2]”1,30015750 Ea. Add
LDLLR062[5/8]”1,640337108 Ea. Add
LDLLR075[3/4]”3,300674210 Ea. Add
LDLLR1001”4,4301,012362 Ea. Add
