Lindapter

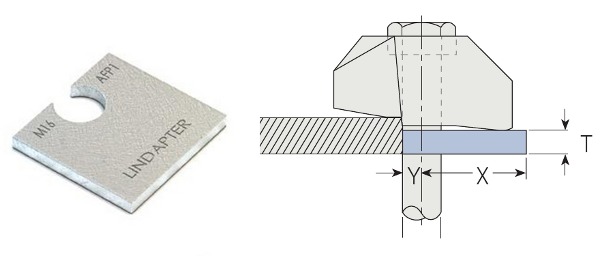

TYPE AFP1 / AFP2

Steel Clamp Accessory

• Packing used to adjust the tail length of the clamp to meet differing beam flange thicknesses

• Mild steel, hot dip galvanized

• Contact Edge for detailed specs and design data
Scroll down for full product description

Item # Bolt Size ZUnit Of
Measure
 Material
List for Quote
Expand Table to Show All Columns
LDLAF050P1[1/2]” Ea. Add
LDLAF050P2[1/2]” Ea. Add
LDLAF062P1[5/8]” Ea. Add
LDLAF062P2[5/8]” Ea. Add
LDLAF075P1[3/4]” Ea. Add
LDLAF075P2[3/4]” Ea. Add
LDLAF100P11” Ea. Add
LDLAF100P21” Ea. Add
Item Specifications
x

Item # Bolt Size ZYXTp1Tp2WidthUnit Of
Measure
 Material
List for Quote
LDLAF050P1[1/2]”[1/4]”1[5/16]”[3/16]”-1[9/16]” Ea. Add
LDLAF050P2[1/2]”[1/4]”1[5/16]”-[3/8]”1[9/16]” Ea. Add
LDLAF062P1[5/8]”[5/16]”1[5/8]”[3/16]”-2” Ea. Add
LDLAF062P2[5/8]”[5/16]”1[5/8]”-[3/8]”2” Ea. Add
LDLAF075P1[3/4]”[3/8]”1[13/16]”[3/16]”-2[3/16]” Ea. Add
LDLAF075P2[3/4]”[3/8]”1[13/16]”-[3/8]”2[3/16]” Ea. Add
LDLAF100P11”[1/2]”2[7/8]”[3/16]”-3[3/8]” Ea. Add
LDLAF100P21”[1/2]”2[7/8]”-[3/8]”3[3/8]” Ea. Add
