Lindapter

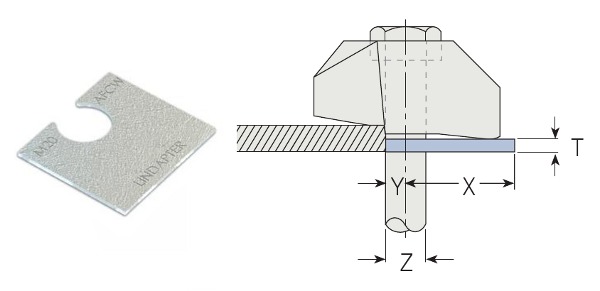

TYPE AFCW

Steel Clamp Accessory


• Packing used to adjust the tail length of the clamp to meet differing beam flange thicknesses; has a slight bend along its center line which flattens out during installation

• Mild steel; Hot dip galvanized finish

• Contact Edge for detailed specs and design data

Scroll down for full product description

Item # Unit Of
Measure
Material
List for Quote
Expand Table to Show All Columns
LDLAF050CW Ea. Add
LDLAF062CW Ea. Add
LDLAF075CW Ea. Add
Item Specifications

Item # Bolt Size ZYXTWidthUnit Of
Measure
Material
List for Quote
LDLAF050CW[1/2]”[1/4]”1[5/16]”[1/16]”1[9/16]” Ea. Add
LDLAF062CW[5/8]”[5/16]”1[9/16]”[1/16]”2” Ea. Add
LDLAF075CW[3/4]”[3/8]”1[5/8]”[1/16]”2[3/16]” Ea. Add
