Lindapter-Structural Fastening » Girder Clamp Accessories
Lindapter

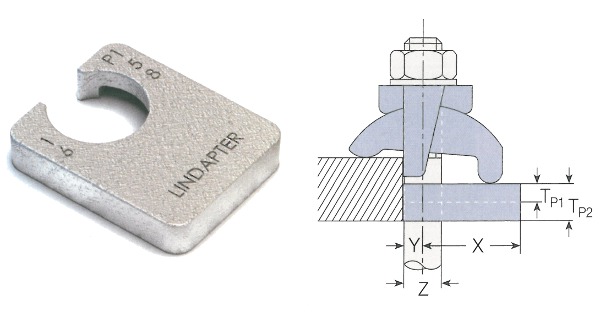

TYPE P1 Long / P2 Long

Steel Clamp Accessories

• Packing used to adjust the tail length of the clamp to meet differing beam flange thicknesses

• Mild Steel, malleable iron; Bright zinc plated or hot dip galvanized finish

• For use with Type LR Clamps

• Contact Edge for detailed specs and design data
Scroll down for full product description

Item # Grade 5 Bolt Size ZUnit Of
Measure
 Material
List for Quote
Expand Table to Show All Columns
LDLP1037L[3/8]” Ea. Add
LDLP1050LEG[1/2]” Ea. Add
LDLP1062LEG[5/8]” Ea. Add
LDLP1075L[3/4]” Ea. Add
LDLP1100L1” Ea. Add
LDLP2037L[3/8]” Ea. Add
LDLP2050L[1/2]” Ea. Add
LDLP2062L[5/8]” Ea. Add
LDLP2075L[3/4]” Ea. Add
LDLP2100L1” Ea. Add
Item Specifications
x

Item # Grade 5 Bolt Size ZYXTWidthUnit Of
Measure
 Material
List for Quote
LDLP1037L[3/8]”[3/16]”[15/16]”[3/16]”[15/16]” Ea. Add
LDLP1050LEG[1/2]”[1/4]”1[1/4]”[1/4]”1[3/16]” Ea. Add
LDLP1062LEG[5/8]”[5/16]”1[9/16]”[5/16]”1[3/8]” Ea. Add
LDLP1075L[3/4]”[3/8]”1[7/8]”[3/8]”1[11/16]” Ea. Add
LDLP1100L1”[1/2]”2[1/2]”[1/2]”2[1/8]” Ea. Add
LDLP2037L[3/8]”[3/16]”[15/16]”[3/8]”[15/16]” Ea. Add
LDLP2050L[1/2]”[1/4]”1[1/4]”[1/2]”1[3/16]” Ea. Add
LDLP2062L[5/8]”[5/16]”1[9/16]”[5/8]”1[3/8]” Ea. Add
LDLP2075L[3/4]”[3/8]”1[7/8]”[3/4]”1[11/16]” Ea. Add
LDLP2100L1”[1/2]”2[1/2]”1”2[1/8]” Ea. Add
