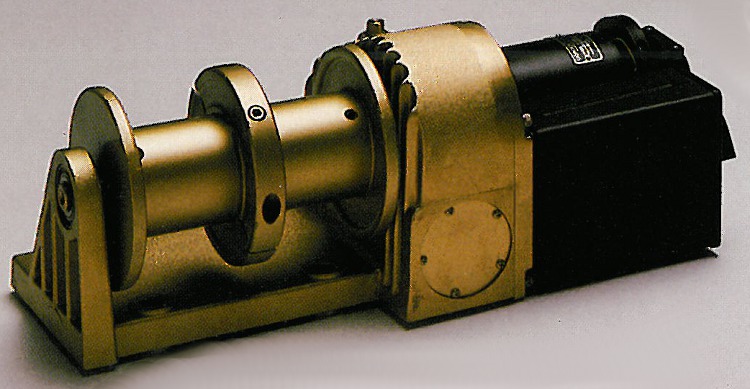

Power Winch Designation Code:

• Winch Series: 12=1200lbs, 7=700lbs

• Voltage: 15=115 volt, 30=230 volt

• Switch Control: S=Standard(mounted on winch), R=Remote (10-ft. remote cord, additional lengths available), MO=Momentary Selector Switch, Ma=Maintained Selector Switch, PNT=Pendant Remote Switch

• If Remote Disconnect is required, add an X after model # (Ex. 12-15 RMO X)

• If Double Drum is required add a D before model # (Ex. D 12-15 RMO)

Important:

• First cable layer should have at least the first five wraps not in use

• Each additional cable layer reduces capacity

• Block and tackle arrangement (use double line only): doubles capacity and cable on drum but reduces line speed by one-half

Cable On Drum, Cable Dia. (in.) x Drum Capacity (ft.) x Breaking Strength (lbs.):

• 1/8 x 512 x 2000

• 5/32 x 325 x 2800

• 3/16 x 215 x 4200

• 7/32 x 165 x 5600

• 1/4 x 135 x 7000

• Galvanized aircraft cable, 7 x 19, is recommended for strength and flexibility

Important:

Cordem specifies a minimum cable safety factor of 5:1 and a safety latch on all hooks.
