REED MANUFACTURING CO.

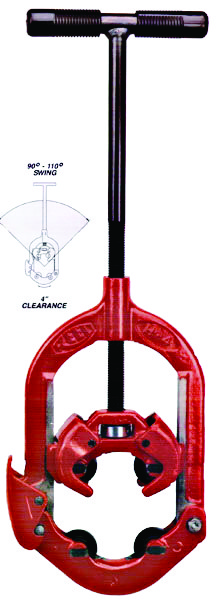

Hinged Cutters™


"• Four wheels cut steel, stainless steel, cast and ductile iron with only 90° to 110° handle swing

• Only 4"" clearance required around pipe

• Strong guide fingers ensure perfect alignment for square cuts

• A closed 360° frame forces all energy into cutting the pipe for maximum efficiency

• There is no shower of sparks in this cold cut

• This is the only hinged cutter that tracks every time and the only one recommended for ductile iron, steel, and stainless steel to Schedule 100

• This tool is a Reed invention

• Note: S= comes with wheels for steel; I= for cast and ductile iron; X= for schedule 80 steel; XX= for schedule 100 steel."
Scroll down for full product description

Item # Nom. Pipe Capacity (in.)Unit Of
Measure
Material
List for Quote
Expand Table to Show All Columns
RDH12I8 - 12 Ea. Add
RDH12S8 - 12 Ea. Add
RDH12X8 - 12 Ea. Add
RDH12XX8 - 12 Ea. Add
RDH21/2I1 - 2[1/2] Ea. Add
RDH21/2S1 - 2[1/2] Ea. Add
RDH21/2X1 - 2[1/2] Ea. Add
RDH4I2 - 4 Ea. Add
RDH4S2 - 4 Ea. Add
RDH4X2 - 4 Ea. Add
RDH6I4 - 6 Ea. Add
RDH6S4 - 6 Ea. Add
RDH6X4 - 6 Ea. Add
RDH8I6 - 8 Ea. Add
RDH8S6 - 8 Ea. Add
RDH8X6 - 8 Ea. Add
RDH8XX6 - 8 Ea. Add
Item Specifications

Item # Nom. Pipe Capacity (in.)Length (in.)Pipe Capacity Actual Ø (mm)Length (mm)Weight (kg)Unit Of
Measure
Material
List for Quote
RDH12I8 - 1234219 - 35686415.9 Ea. Add
RDH12S8 - 1234219 - 35686415.9 Ea. Add
RDH12X8 - 1234219 - 35686415.9 Ea. Add
RDH12XX8 - 1234219 - 35686415.9 Ea. Add
RDH21/2I1 - 2[1/2]1732 - 764193.3 Ea. Add
RDH21/2S1 - 2[1/2]1732 - 764193.3 Ea. Add
RDH21/2X1 - 2[1/2]1732 - 764193.3 Ea. Add
RDH4I2 - 42260 - 1255595.8 Ea. Add
RDH4S2 - 42260 - 1255595.8 Ea. Add
RDH4X2 - 42260 - 1255595.8 Ea. Add
RDH6I4 - 628114 - 1827118.8 Ea. Add
RDH6S4 - 628114 - 1827118.8 Ea. Add
RDH6X4 - 628114 - 1827118.8 Ea. Add
RDH8I6 - 832168 - 24081311.1 Ea. Add
RDH8S6 - 832168 - 24081311.1 Ea. Add
RDH8X6 - 832168 - 24081311.1 Ea. Add
RDH8XX6 - 832168 - 24081311.1 Ea. Add
