• Reed offers the best designed tools for stopping flow in PE pipe with capacities of 1/2” to 8”

• Sliding bar handles make work in tight places easier and increase leverage for tightening

• Other features include fine-pitched thread to allow for a controlled, low-effort squeeze; greased fittings to make operation easier and extend life; and aluminum parts to make tools lighter for easier handling

• Aluminum castings also withstand varied climate and soil conditions

• All tools use positive stops to prevent damage caused by over-clamping

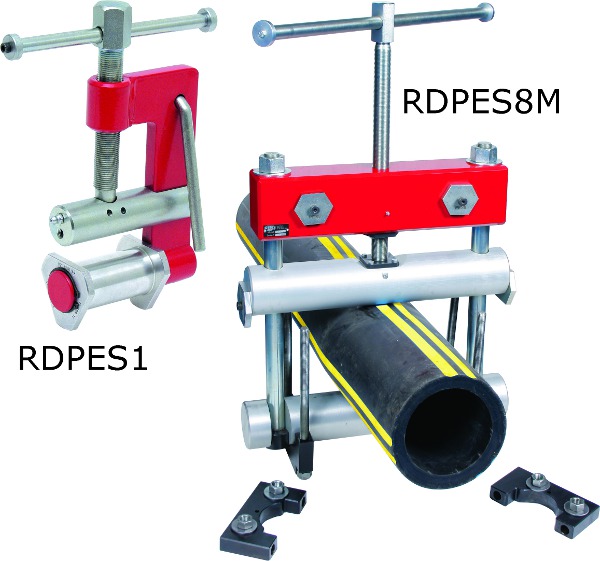

• PES1 models feature a stationary bottom bar

• The PES2 and PES4 series have an affixed bottom bar, which swings open to fit over any location on the pipe

• RDPES2PC160 features CTS-specialized stops for Pressure Class 160 tube

• PES2-2 models have a new double-bar design with two squeeze points in a row which provide better shut-off and extra protection against leaks, right in one tool

• Reed’s PES8s are available in manual or hydraulic models and also feature the new double-bar design - RDPES8M requires manual operation, uses two stops, and allows a dozen different pipe/SDR combinations - RDPES8H utilizes a hydraulic pump and offers a pressure gauge and saddle clamps

• An optional Flow Control Valve Kit is available to control release of the upper jay to reduce risk of static build-up

• Attention Utility Contractors: PES2 models can be used on both CTS and IPS PE pipe by simply changing the safety stops

• *RDPES2PC160 Rated for working pressure to 160 psi

Scroll down for full product description
