REED MANUFACTURING CO.

Valve & Curb Keys


• Upper shafts are made from heavy-gauge, mechanical steel tubing

• The keys have a telescoping design

• When telescoped in, they are under 4 feet long and fit easily in small utility trucks, behind pickup seats, and in car trunks

• When telescoped out, lengths of 5 feet to 7 feet are possible

• RDVK10 reaches nearly 10 feet when fully extended

• RDVKEXT shaft is available to extend the keys to over 12 feet

• For greater control and versatility, a variety of tools can be used on the end of T handles to turn curb stops

• Optional clip-on tools can be used to turn small valve wheels, curb box rods, pentagon bolts, and Buffalo box lids; Reed customers can choose keys according to the needs of their systems

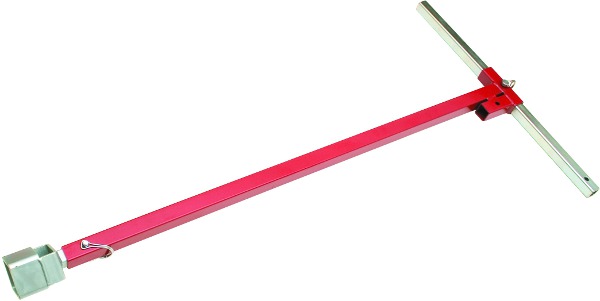

• The RDVKA45 (shown in picture) is an adjustable valve key for mains with the curb key at a 45 degree angle; this angle provides a visual indication of a ball valve’s open or closed status, the handle lines up with the pipe when the valve is in the open position - the handle crosses the pipe (seeming perpendicular) with the valve in the closed position

• RDVK916PENT fits gas company curb stops and lids with its 9/16” pentagon key

• RDVKEXT is an extension bar with 3 positions that can be used on most Reed keys for up to 6 feet of extra reach

• RDVKKIT uses the VK3 upper shaft to create all VK2 and VK3 variations of valve keys
Scroll down for full product description

Item # Desc.Unit Of
Measure
Material
List for Quote
Expand Table to Show All Columns
RDHWVKHydrant Wrench with hole Ea. Add
RDVK10Basic 10’ Valve Key Ea. Add
RDVK10-3CK1CK210’ Valve Key with CK1 a Ea. Add
RDVK10-3CK1EXT10’ Valve Key with CK1 K Ea. Add
RDVK2CK1Main Valve Key + 1” Curb Ea. Add
RDVK2CK2Main Valve Key + 2” Curb Ea. Add
RDVK2COMBOMain Valve Key + Combina Ea. Add
RDVK3CK1-2HLMain Valve Key + 1” Curb Ea. Add
RDVK3CK1CK2Main Valve Key + 1” Curb Ea. Add
RDVK3CK1COMBOMain Valve Key + 1” Curb Ea. Add
RDVK3CK1EXTMain Valve Key + 1” Curb Ea. Add
RDVK3CK1HWValve Key with CK1 curb Ea. Add
RDVK3CK1RODMain Valve Key + 1” Curb Ea. Add
RDVK3CK1WHLMain Valve Key + 1” Curb Ea. Add
RDVK916PENT[9/16]” Pentagon Key Ea. Add
RDVKAAdjustable Valve Key for Ea. Add
RDVKA45Adjustable Valve Key wit Ea. Add
RDVKEXTValve Key Extension Ea. Add
RDVKKITKit contains parts to ma Ea. Add
Item Specifications

Item # Desc.Closed Length (in.)Weight (lbs.)Unit Of
Measure
Material
List for Quote
RDHWVKHydrant Wrench with hole203.9 Ea. Add
RDVK10Basic 10’ Valve Key65.018.8 Ea. Add
RDVK10-3CK1CK210’ Valve Key with CK1 a65.020.2 Ea. Add
RDVK10-3CK1EXT10’ Valve Key with CK1 K65.027.5 Ea. Add
RDVK2CK1Main Valve Key + 1” Curb45.514.4 Ea. Add
RDVK2CK2Main Valve Key + 2” Curb45.514.5 Ea. Add
RDVK2COMBOMain Valve Key + Combina45.514.4 Ea. Add
RDVK3CK1-2HLMain Valve Key + 1” Curb45.515.4 Ea. Add
RDVK3CK1CK2Main Valve Key + 1” Curb45.518.4 Ea. Add
RDVK3CK1COMBOMain Valve Key + 1” Curb45.518.4 Ea. Add
RDVK3CK1EXTMain Valve Key + 1” Curb45.525.7 Ea. Add
RDVK3CK1HWValve Key with CK1 curb 45.519.5 Ea. Add
RDVK3CK1RODMain Valve Key + 1” Curb45.518.7 Ea. Add
RDVK3CK1WHLMain Valve Key + 1” Curb45.515.3 Ea. Add
RDVK916PENT[9/16]” Pentagon Key45.521.0 Ea. Add
RDVKAAdjustable Valve Key for45.514.4 Ea. Add
RDVKA45Adjustable Valve Key wit45.514.9 Ea. Add
RDVKEXTValve Key Extension72.011.3 Ea. Add
RDVKKITKit contains parts to ma45.542.5 Ea. Add
