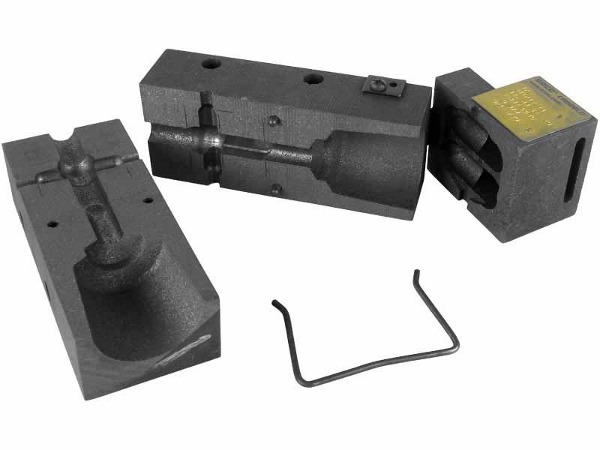

Cadweld (ERICO PRODUCTS INC ) GY Mold
• The two-piece GY mold lets you make connections in a trench in about half the time it would take with compression connections or other exothermic connections and at a fraction of the cost • Ergonomic two-piece molds use standard L160 and L159 handle clamps-the same clamps you use with other Cadweld® molds • Saves labor costs; a GY connection can be made by one person in about one minute-much faster than other methods • Simple to use • Easy cable alignment • Includes a new baffle mold cover which reduces emissions and extends the handle clamp life • Available with wear plates Warning: • Erico products shall be installed and used only as indicated in Erico’s product instruction sheets and training materials • Instruction sheets are available at www.erico.com and from your Erico customer service representative • Improper installation, misuse, misapplication or other failure to completely follow Erico’s instructions and warnings may cause product malfunction, property damage, serious bodily injury and death Scroll down for full product description
|
Item # | Mold Part Number | Unit Of Measure |
Material List for Quote |
|
CD115PLUSF20 | GY R142C | Ea. | Add | |
CD150PLUSF20 | GY R162V | Ea. | Add | |
CD200PLUSF20 | GY R182V | Ea. | Add | |
CD250PLUSF20 | GY R163D | Ea. | Add | |
CD300PLUSF20 | GY R283D | Ea. | Add | |
CD400PLUSF20 | GY F163Q | Ea. | Add | |
CD500PLUSF20 | GY F183Q | Ea. | Add | |
CD90PLUSF20 | GY R161T | Ea. | Add |
Item Specifications
Item # | Mold Part Number | Copper Clad Ground Rod (Run) (in.) | Conductor Size (Tap) | Unit Of Measure |
Material List for Quote |
CD115PLUSF20 | GY R142C | [1/2] | 1/0 CONC | Ea. | Add |
CD150PLUSF20 | GY R162V | [5/8] | 250 CONC | Ea. | Add |
CD200PLUSF20 | GY R182V | [3/4] | 250 CONC | Ea. | Add |
CD250PLUSF20 | GY R163D | [5/8] | 350 CONC | Ea. | Add |
CD300PLUSF20 | GY R283D | [3/4] | 350 CONC | Ea. | Add |
CD400PLUSF20 | GY F163Q | [5/8] | 500 CONC | Ea. | Add |
CD500PLUSF20 | GY F183Q | [3/4] | 500 CONC | Ea. | Add |
CD90PLUSF20 | GY R161T | [5/8] | 2 SOL | Ea. | Add |
