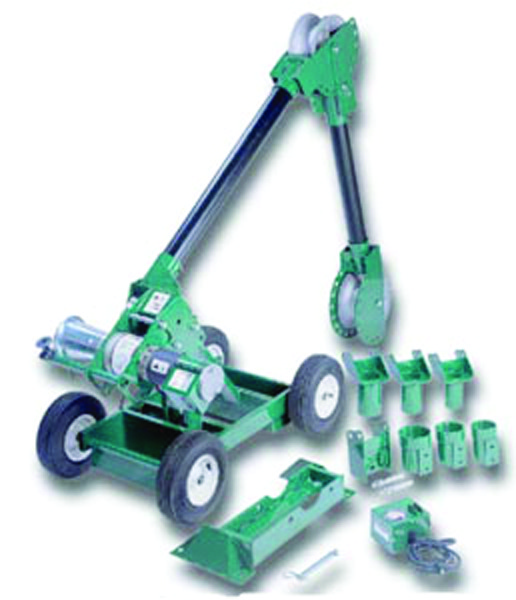

• Ultra Tugger® Cable Puller with Standard Force Gauge, Floor Mount, Versi-Boom™ System and “T” Stand includes Extensions and 3”, 3[1/2]” & 4” slip-on Couplers, Elbow, Wheeled Carriage, Screw-on Couplers, or Rope.

• Pulls up to 8,000 (35.8 kN) lbs. Versi-Boom™ System allows you to make versatile and fast set-ups and pull 10' (3 mm) or 20' (6 mm) of extra cable easily. Uses standard 3' rigid steel conduit for boom. Direct gear drive. Lightweight. Portable. Optional deluxe force gauge.

• Dimensions Length x Width x Height: - 11.5” x 26” x 8.5”

• Drive Motor 1[1/2] Horsepower

• Power Source 6800, 01, 02, and 05 120 V 20 A; Power Source 6800-22, 6802-22 and 6805-22 220 VAC 50 HZ;

• Pulling Force Maximum - 8,000 lbs. (35.8 kN), Continuous - 6,500 lbs. (28.9 kN); Pulling Speed - No Load: 9 fpm, At 2000 lbs. (8.8 kN): 8 fpm, Feet (Meters) At 4000 lbs. (17.9 kN): 7.5 fpm, At 6000 lbs. (26.7 kN): Per Minute 7 fpm, At 8000 lbs (35.8 kN): 6 fpm; Power Source 120 V 20 A; Recommended Rope - Average Breaking Strength or More 7/8 diameter (22.2 mm); Double-Braided Polyester Composite - Rated at 32,000 lbs. (142 kN)
