Fairmont (GREENLEE TOOLS INC )

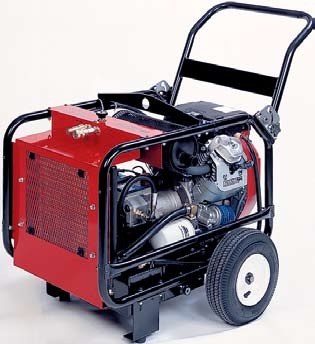

Hydraulic Power Unit

20 Hp


"• Electric key-start 20 hp Honda OHV engine with low-oil shutdown

• Variable oil flow to 10 gpm (38 lpm)

• Oversized oil cooler and electric fan ensures cool running

• Engine hour meter and tachometer

• Hydraulic oil level sight gauge and 10 micron oil filter

• Tubular frame protects components and allows easy access to maintenance points

• Integral grab rails for lifting the unit into trucks and trailers

• Heavy-duty lifting eye

• HTMA flat-face hydraulic couplers

• Easy access service points for engine oil, fuel, battery, and oil filter

• Sealed lead-acid battery

Specifications:

• Horsepower: 20 at 3,600 rpm (14.9 kW at 3,600 rpm)

• System: Open-center

• Rated Flow: 5 - 10 gpm

• Rated Pressure: 2,000 psi

• Fuel: Gasoline 3.3 gal.

• Hyd Oil Capacity: 3.1 gal.

• Dry Weight: 259 lb.

• Length: 34""

• Width: 31""

• Height (handle folded): 32"""
