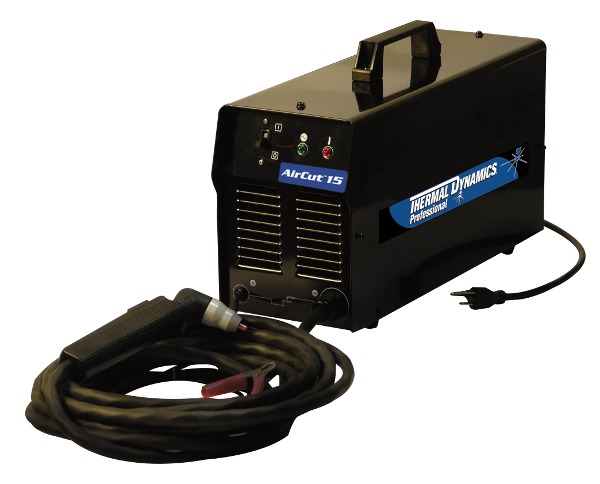

Thermadyne® (Thermadyne) Portable Plasma Cutting System w/ Built-In Air CompressorAirCut™15C
"• Internal Air Compressor: This unit comes standard with a built-in air compressor • Lightweight: Weighs only 29 lbs. (13.2 kg), almost 50% lighter than the competition • Superior Cutting Capacity: 1/8"" (3 mm) Recommended Cut, 3/16"" (5 mm) maximum capability • Easy to Use: 120V, 15 Amp plug standard. Plug it in anywhere • Faster Cut Speeds: 25% more cutting power provides 25% faster cut speeds than the competition Specifications: • Cut Capacity: 1/8"" (3 mm) Recommended Cut • Output Current: 15 Amps Fixed • Input Power: 120V (± 10%), Single Phase, 60Hz., 12 Amps • Duty Cycle: 35% @ 15A • Dimensions: Length 18"" (457 mm) • Width 6.5"" (165 mm) • Height 9.5"" (241 mm) • Weight: 29 lbs. (13.2 kg) • Ship Weight: 38 lbs. (17.2 kg) (includes Unit, Power Cable, Torch and Leads) • Work Cable: 19.5 ft. (5.9m) • Input Cable: 8.5 ft. (2.6m) • Gas Type: Air from Built-In Air Compressor • Pilot: CD Start • Control: Hand Torch Switch • Torch: PCH-10 • Torch Configuration: Hand 70°, 20' (6.1m) Leads" Scroll down for full product description
|
Item # | Unit Of Measure |
Material List for Quote |
TD1-1110-1 | Ea. | Add |
