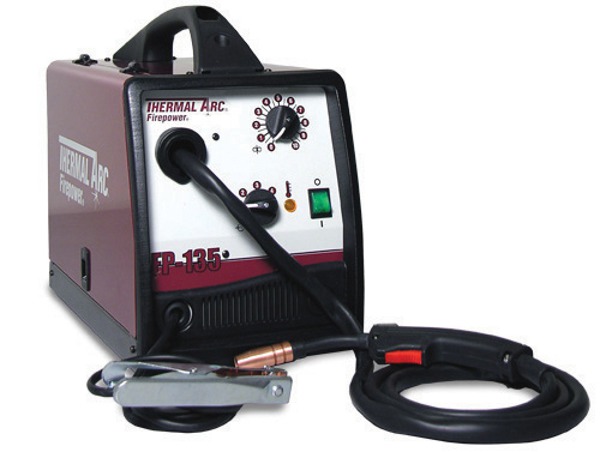

Thermadyne® (Thermadyne) MIG/Flux Cored Welding SystemFP-135
The new portable FP-135 dual purpose wire welder delivers a very versatile and effective welding performance. With its simple operation and key set up chart even the novice can achieve high quality, professional results. This system features a quick change internal polarity adjustment to change between MIG (GMAW) and flux cored (FCAW) welding. Designed to operate from a standard household outlet and delivers a high maximum output of 135 amps. The ready to weld system comes complete with Tweco® WeldSkill® gun, return cable & clamp, input power cord & plug, spool of flux cored wire and an operating manual. FP-135's high output and duty cycle makes this a great all round package. Optional cart also available Applications Include: • Home DIY Hobbyist • Farm / Ranch • Maintenance and repairs • General light duty fabrication & repair Primary Power: • Primary voltage 120 Volt • Supply plug NEMA 5-15P • Lead cord length 6 ft. (1.8m) • Rated kVA @ 90 Amps 2.8 kVA Scroll down for full product description
|
Item # | Maximum Output | Unit Of Measure |
Material List for Quote |
Item Specifications
Item # | Maximum Output | Duty Cycle @ 104?F | Current Range | Number Of Voltage Settings | Maximum Plate Thickness | Wire Diameter Range | Dimensions (HxWxD) | Weight | Unit Of Measure |
Material List for Quote |
TD1444-0326 | 135 Amp | 40% @ 90 Amp at 18V | 20-135 Amp | 4 | "[1/4]"" ( | ".023"" - .035"" (0.6 - 0.9mm)" | "12.75"" x 9.75"" x 17.35"" (375x250x440 mm)" | 56 lbs. (25.5kg) | Ea. | Add |
