SIMPSON STRONG TIE

BC Post Caps


The BC series offers dual purpose post cap/base for light cap or base connections.

Material: 18 gauge.

Finish: Galvanized.

1. Allowable loads have been increased 33% and 60% for earthquake or wind loading with no further increase allowed; reduced for other load durations according to the code.

Dimensions W1: 5 1/2

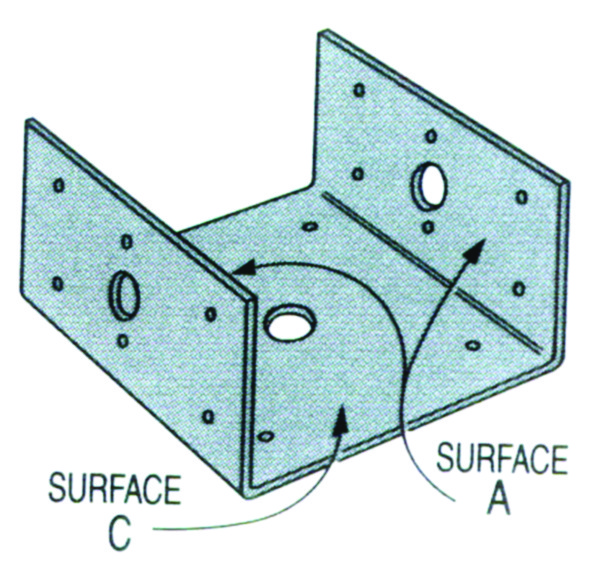

Fasteners (Each Side) Surface A: 6-16d
Scroll down for full product description

Item # Dimension W2Unit Of
Measure
Material
List for Quote
Expand Table to Show All Columns
SNBC65[1/2] Ea. Add
Item Specifications

Item # Dimension W2Dimension L1Dimension L2Dimension H1Dimension H2Fasteners (Each Side) Surface BFasteners (Each Side) Surface CUplift Avg UltUnit Of
Measure
Material
List for Quote
SNBC65[1/2]4[3/8]4[3/8]3[3/8]3[3/8]6-16d4700 Ea. Add
