SIMPSON STRONG TIE

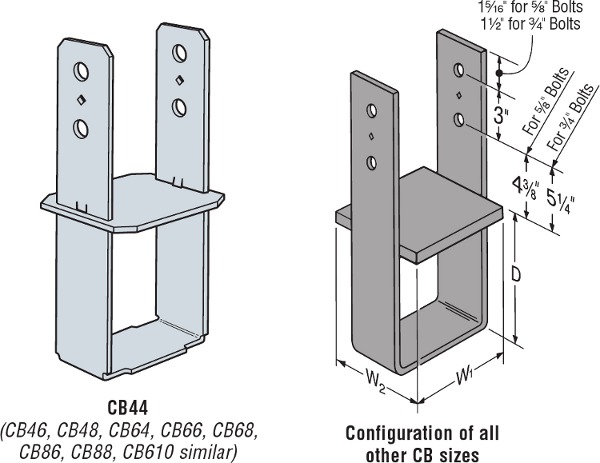

CB Column Bases

• Finish: CB44, CB46, CB48, CB66, CB68, CB610, CB86- galvanized, all other CB - Simpson Strong-Tie® gray paint or HDG

• Available in rough size. Other sizes available for CB specify W1 and W2 dimensions. Consult Simpson Strong-Tie for bolt sizes and allowable loads
Scroll down for full product description

Item # Nominal SizeUnit Of
Measure
 Material
List for Quote
Expand Table to Show All Columns
SNCB101010x10 Ea. Add
SNCB101210x12 Ea. Add
SNCB121212x12 Ea. Add
SNCB444x4 Ea. Add
SNCB464x6 Ea. Add
SNCB484x8 Ea. Add
SNCB6-76x Ea. Add
SNCB6106x10 Ea. Add
SNCB646x4 Ea. Add
SNCB666x6 Ea. Add
SNCB686x8 Ea. Add
SNCB868x6 Ea. Add
SNCB888x8 Ea. Add
Item Specifications
x

Item # Nominal SizeStrap (ga. and width)Base (ga.)W1 (in.)W2 (in.)D (in.)Machine Bolts (qty. x dia.)Allowable Uplift Loads-Bolts (160)Unit Of
Measure
 Material
List for Quote
SNCB101010x103 ga. x 339[1/2]9[1/2]82 x [3/4]6,650 Ea. Add
SNCB101210x123 ga. x 339[1/2]11[1/2]82 x [3/4]6,650 Ea. Add
SNCB121212x123 ga. x 3311[1/2]11[1/2]82 x [3/4]6,650 Ea. Add
SNCB444x47ga. x 273[9/16]3[9/16]82 x [5/8]4,200 Ea. Add
SNCB464x67ga. x 273[9/16]5[1/2]82 x [5/8]4,200 Ea. Add
SNCB484x87ga. x 273[9/16]7[1/2]82 x [5/8]4,200 Ea. Add
SNCB6-76x7 ga. x 375[1/2]782 x [5/8]4,200 Ea. Add
SNCB6106x107 ga. x 375[1/2]9[1/2]82 x [5/8]4,200 Ea. Add
SNCB646x47 ga. x 375[1/2]3[9/16]82 x [5/8]4,200 Ea. Add
SNCB666x67 ga. x 375[1/2]5[1/2]82 x [5/8]4,200 Ea. Add
SNCB686x87 ga. x 375[1/2]7[1/2]82 x [5/8]4,200 Ea. Add
SNCB868x63 ga. x 377[1/2]5[1/2]82 x [3/4]6,650 Ea. Add
SNCB888x83 ga. x 377[1/2]7[1/2]82 x [3/4]6,650 Ea. Add
