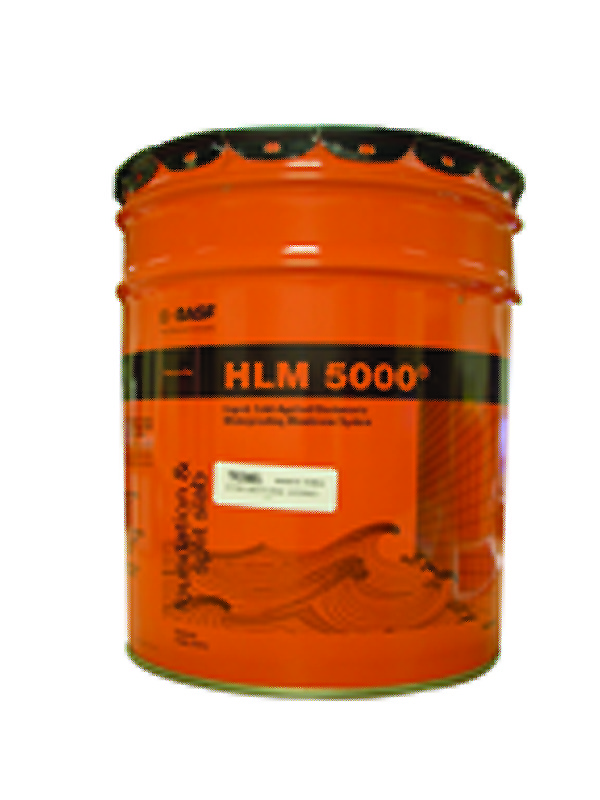

Sonoshield® HLM 5000® (Sonneborn)

Industrial Sealants

Div.7 07 14 00

HLM 5000® is a one-component, moisture-curing, bitumen-modified polyurethane elastomeric waterproofing membrane for exterior below-grade or between-slab applications. HLM 5000® comes in a variety of grades for different applications: HLM 5000® SL (self-leveling) is formulated for application by squeegee to horizontal areas. HLM 5000® S (spray) is a specially formulated version of 5000T for spray application. HLM 5000® R (roller) is formulated for application by roller to vertical and some horizontal surfaces.


• Standard and high-build systems

• Waterproof

• Elastomeric

• Wide service-temperature range

• Chemical resistant

• Seamless cold-applied membrane

• Asphalt-modified polyurethane


25 – 30 ft2/gallon at 55 – 65 wet mils (0.61 – 0.74 m2/L at 1.4 – 1.7 mm wet thickness) 25 – 30 ft2/gallon at 45 – 55 dry mils (0.61 – 0.74 m2/L at 1.1 – 1.4 mm dry thickness)

Coverage may vary with the application technique used; actual coverage rate and mil thickness depend on finish and porosity of the substrate.
Scroll down for full product description

Item # Size (gal.)Unit Of
List for Quote
Expand Table to Show All Columns
SO30-484-55 Ea. Add
SO30-485-0515 Ea. Add
SO30-486-55 Ea. Add
Item Specifications

Item # Size (gal.)TypeUnit Of
List for Quote
SO30-484-55Roller Ea. Add
SO30-485-0515Self Level Ea. Add
SO30-486-55Spray Ea. Add
