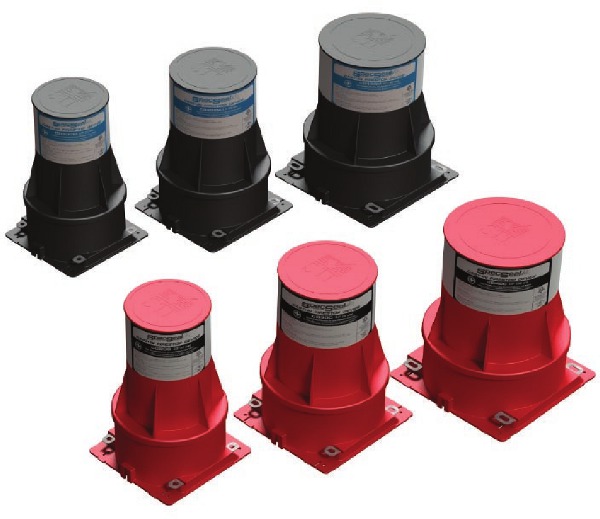

• The devices install easily and quickly. Simply position the sleeves as required, fasten to the form and pour the concrete

• The molded plastic body can be cut to adjust to the depth of the pour and is tough enough to resist the rigors of the concrete finishing process

• A variety of accessories permit installation under many construction conditions including variations in concrete depth and installation over pan decks

• The unique chambered intumescent system expands rapidly in the event of a fire to provide up to a three hour fire rating. A resilient gasket system seals against the propagation of smoke and provides additional protection against water exposure

• UL listed products

Application:

• 2”, 3”, 4” and 6” trade size plastic or metallic pipes

• Insulated metallic pipes

• Cable bundles

• Concrete ranging in depth from 2-1/2” to 8”

• Concrete greater than 8” using available extension tubes

• Concrete over steel deck using available Deck Adapter Kit

• Do not use for wall applications

Dimensions:

• 2” ID: Footprint 5-1/8” x 5-1/8” ; Min. Steel Deck Opening 3-5/8”

• 3” ID: Footprint 5-3/4” x 5-3/4” ; Min. Steel Deck Opening 4-1/4”

• 4” ID: Footprint 6-3/4” x 6-3/4” ; Min. Steel Deck Opening 5-1/4”

• 6” ID: Footprint 9” x 9” ; Min. Steel Deck Opening 7-1/4”

• SpecSeal® Cast-In Firestop Devices have been successfully tested in accordance with ASTM E814 (ANSI/UL1479) in one, two and three hour fire-rated floor assemblies. Consult Edge for individual system designs and application requirements
