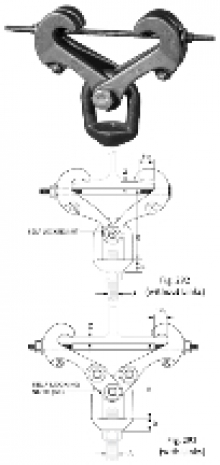

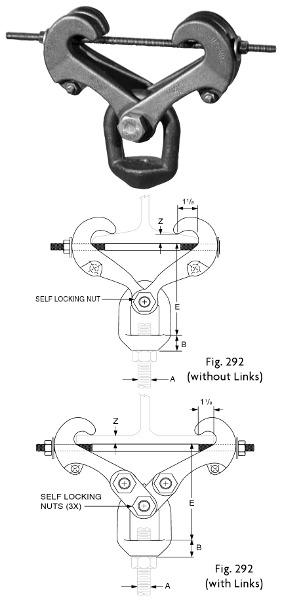

BAXTER-RUTHERFORD ICF, INC Beam ClampsFig. 292, 292L Universal Forged Steel Beam Clamp with Weldless Eye Nut
• Material: Forged steel • Finish: Plain or Galvanized • Service: For suspension of heavy loads from beams with flange widths to 15” and flange thickness to 1.031 • Approvals: Complies with Federal Specification A-A-1192A (Type 28 without links; Type 29 with links), WW-H-171-E (Type 28 without links; Type 29 with links), ANSI/MSS SP-69 and MSS-SP-58 (Type 28 without links; Type 29 with links) • Installation: Fit jaws over edges of lower beam flange and tighten nuts on tie rod to lock clamp in place Features: • Weldless eye nut provides for horizontal pipe movement without binding • Weldless eye nut is furnished tapped top any specified rod size up to the maximum rod size • Tie rod assures a tight non-slip fit to the beam Ordering: • Specify clamp size, figure number, name, rod size and finish Note: • The application of a load to a structural beam by means of a beam clamp produces a traverse stress, perpendicular to the axis of the beam, in the flange to which the load is applied • Clamp sizes 3,5 and 7 furnished with links Scroll down for full product description
|
Item # | Clamp Size No. | Unit Of Measure |
Material List for Quote |
Item Specifications
Item # | Clamp Size No. | Max Rod Size A (in.) | Max Load (lbs.) | Weight (lbs.) | Z Max (in.) | B (in.) | Jaw and Eye Nut Size (in.) | Unit Of Measure |
Material List for Quote |
AV292-1 | 1 | [3/4] | 3,230 | 3.9 | .60 | 1[1/4] | 292-1/1 | Ea. | Add |
AV292-2 | 2 | 1 | 5,900 | 9.2 | .60 | 1[11/16] | 292-2/2 | Ea. | Add |
AV292-3 | 3 | 1 | 5,900 | 13 | .60 | 1[11/16] | 292-2/2 | Ea. | Add |
AV292-4 | 4 | 1 | 5,900 | 21.7 | 1.031 | 1[1/2] | 292-3/2 | Ea. | Add |
AV292-5 | 5 | 1 | 5,900 | 33.9 | 1.031 | 1[1/2] | 292-3/2 | Ea. | Add |
AV292-6 | 6 | 1[1/2] | 11,500 | 23.9 | 1.031 | 2[1/8] | 292-3/3 | Ea. | Add |
AV292-7 | 7 | 1[1/2] | 11,500 | 35.8 | 1.031 | 2[1/8] | 292-3/3 | Ea. | Add |
AV292-8 | 8 | 2 | 11,500 | 36.8 | 1.031 | 4[9/16] | 292-3/4 | Ea. | Add |
AV292L-1 | 1 | [3/4] | 3,230 | 3.9 | .60 | 1[1/4] | 292-1/1 | Ea. | Add |
AV292L-2 | 2 | 1 | 5,900 | 9.2 | .60 | 1[11/16] | 292-2/2 | Ea. | Add |
AV292L-3 | 3 | 1 | 5,900 | 13 | .60 | 1[11/16] | 292-2/2 | Ea. | Add |
AV292L-4 | 4 | 1 | 5,900 | 21.7 | 1.031 | 1[1/2] | 292-3/2 | Ea. | Add |
AV292L-5 | 5 | 1 | 5,900 | 33.9 | 1.031 | 1[1/2] | 292-3/2 | Ea. | Add |
AV292L-6 | 6 | 1[1/2] | 11,500 | 23.9 | 1.031 | 2[1/8] | 292-3/3 | Ea. | Add |
AV292L-7 | 7 | 1[1/2] | 11,500 | 35.8 | 1.031 | 2[1/8] | 292-3/3 | Ea. | Add |
AV292L-8 | 8 | 2 | 11,500 | 36.8 | 1.031 | 4[9/16] | 292-3/4 | Ea. | Add |
