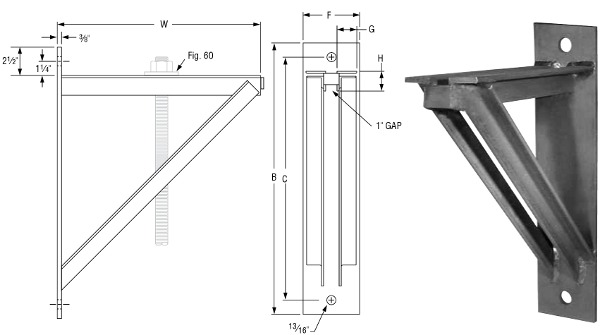

• Material: Carbon steel

• Finish: Plain or Galvanized

• Recommended for the support of loads from below or above bracket

• Complies with Federal Specification A-A-1192A (Type 32),

WW-H-171-E (Type 33), ANSI/MSS SP-69 and MSS SP-58 (Type 32).

• Determine size by dimensions most suitable to the installation

• Special welded steel brackets can furnished on order

• Orders for special brackets must be accompanied by a detailed sketch

• Installation: When bolted to a wall, an additional back plate may be required of such thickness and size as to properly distribute the weight over the wall. Size and thickness of the back plate is governed by the load to be carried and the nature and conditions of the wall. Back plates furnished upon request

• Features: If supporting pipe by rod, rod can be installed anywhere along the length of the bracket thus providing horizontal adjustment

• Specify bracket number, figure number, name and finish.
