Unistrut, Pipe Hangers & Caddy » Pipe Hangers & Supports
BAXTER-RUTHERFORD ICF, INC

Brackets

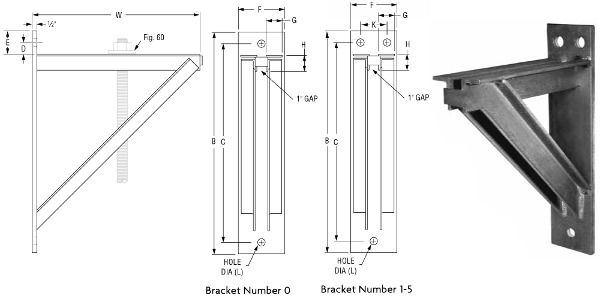

Figure 199 Heavy Welded Steel Bracket

• Material: Carbon steel

• Finish: Plain or Galvanized

• Recommended for the support of loads from above or below bracket

• Complies with Federal Specification A-A-1192A (Type 33),

WW-H-171-E (Type 34), ANSI/MSS SP-69 and MSS SP-58 (Type 33)

• Determine size by dimensions most suitable to the installation

• Max Load: 3,500 lbs.

• W Dimension: Type 0; 12”, Type 1; 18”, Type 2; 24”, Type 3; 30”, Type 4; 36”, Type 5; 42”

• Installation: When bolted to a wall, an additional back plate may be required of such thickness and size as to properly distribute the weight over the wall. Size and thickness of the back plate is governed by the load to be carried and the nature and conditions of the wall. Back plates furnished upon request

• Features: If supporting pipe by rod, rod can be installed at any point along the length of the bracket thus providing horizontal adjustment.

• Specify bracket number, figure number, name

• Special welded steel brackets can furnished on order

• Orders for special brackets must be accompanied by a detailed sketch

Scroll down for full product description

Item # Weight (lbs.)Unit Of
Measure
 Material
List for Quote
Expand Table to Show All Columns
AV199-024.3 Ea. Add
AV199-151.8 Ea. Add
AV199-265.8 Ea. Add
AV199-382.1 Ea. Add
AV199-4140.5 Ea. Add
AV199-5166.4 Ea. Add
Item Specifications
x

Item # Weight (lbs.)B (in.)C (in.)D (in.)E (in.)F (in.)G (in.)H (in.)K (in.)L (in.)Unit Of
Measure
 Material
List for Quote
AV199-024.31815[1/4]1[3/8]2[3/4]41[1/4]2-[13/16] Ea. Add
AV199-151.82421[3/8]1[7/16]2[3/4]5222[3/4][15/16] Ea. Add
AV199-265.83027[1/2]1[1/2]2[3/4]522[1/2]2[1/2]1[1/16] Ea. Add
AV199-382.13633[1/4]1[5/8]3522[1/2]2[1/2]1[1/16] Ea. Add
AV199-4140.542391[1/2]362[1/2]3[1/2]3[1/2]1[1/16] Ea. Add
AV199-5166.450461[1/2]3[1/2]62[1/2]3[1/2]3[1/2]1[1/16] Ea. Add
