Unistrut, Pipe Hangers & Caddy » Beam Clamps
UNISTRUT INTERNATIONAL

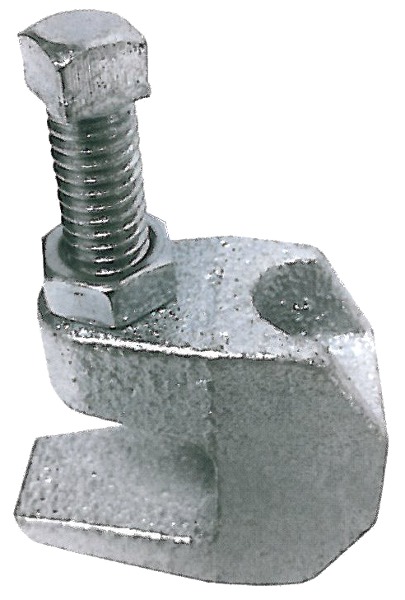

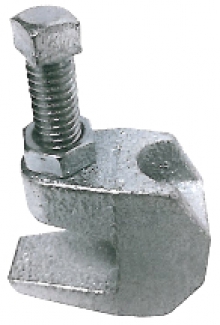

Beam Clamp

P8000 & P8001, Malleable

• Provides structural attachment to top or bottom of metal beams, purlins, channel or angle iron

Features:

• Set screw made of hardened steel

• Complies with Federal Specification A-A-192A (Type 19) and MSS SP-69 (Type 19)

Scroll down for full product description

Item # Rod SizeUnit Of
Measure
 Material
List for Quote
Expand Table to Show All Columns
UTP8000EG[3/8]” Ea. Add
UTP8000PL[3/8]” Ea. Add
UTP8001EG[1/2]” Ea. Add
UTP8001PL[1/2]” Ea. Add
Item Specifications
x

Item # Rod SizeMax Load TopMax Load BottomWeight (lbs.)Opening ABWUnit Of
Measure
 Material
List for Quote
UTP8000EG[3/8]”500250.33[3/4]”1[1/16]”[7/8]” Ea. Add
UTP8000PL[3/8]”500250.33[3/4]”1[1/16]”[7/8]” Ea. Add
UTP8001EG[1/2]”950760.34[3/4]”1[1/16]”1[1/16]” Ea. Add
UTP8001PL[1/2]”950760.34[3/4]”1[1/16]”1[1/16]” Ea. Add
