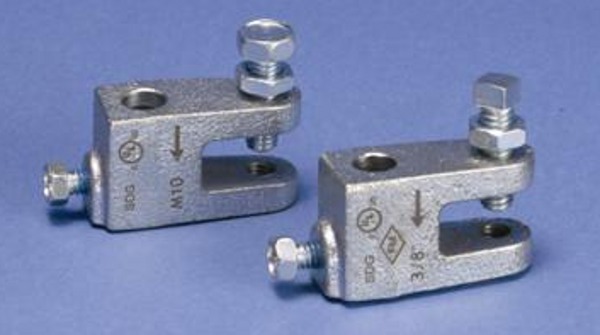

"Caddy Rod Lock provides a quick and economical solution for installing electrical and mechanical systems supported by threaded rod. The system includes the Caddy Rod Lock beam clamp and channel nut. Simply push the threaded rod through the mounting hole and it instantly locks into position. The system can even be used on threaded rod with slightly damaged threads or minor burrs.

• Fits 3/8” rod

• Load Rating for flanges 1/8""-5/16"" is 250 lbs. and for flanges 3/8""-7/16"" is 500 lbs.

• UL® 203 & UL 2239 Approved

• FM® Approved

• CRLB37EG Beam Clamp is FM Approved when installed in the bottom mount orientation

• CRLB37EG Beam Clamp is UL Listed for Fire Sprinkler Applications when a lock nut is installed on the threaded rod on the bottom side of the beam clamp

• For use on plain and electrogalvanized (EG) hardware only.

• Electrogalvanizd ductile iron

• 3:1 Safety Factor

"
