Unistrut, Pipe Hangers & Caddy » Pipe Clamps
UNISTRUT INTERNATIONAL

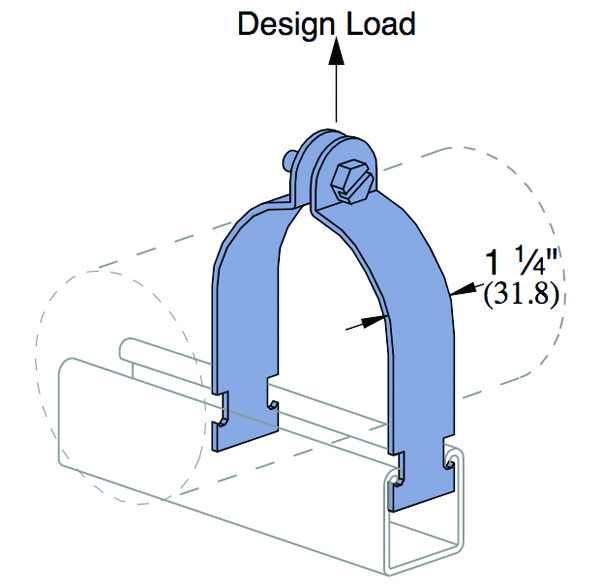

Pipe/Conduit Clamps

P14XX

• Slotted hex head screw and nut included

• For Thin Wall conduit (EMT)

• Call to specify material and finish

Scroll down for full product description

Item # Pipe SizeUnit Of
Measure
 Material
List for Quote
Expand Table to Show All Columns
UTP1426[3/8]” Ea. Add
UTP1426EG[3/8]” Ea. Add
UTP1426HG[1/2]” Ea. Add
UTP1427[1/2]” Ea. Add
UTP1427EG[3/4]” Ea. Add
UTP14281” Ea. Add
UTP1428EG1” Ea. Add
UTP14291[1/4]” Ea. Add
UTP1429EG1[1/4]” Ea. Add
UTP14301[1/2]” Ea. Add
UTP1430EG1[1/2]” Ea. Add
UTP14312” Ea. Add
UTP1431EG2” Ea. Add
Item Specifications
x

Item # Pipe SizeO.D. SizeThickness (ga.)Design LoadFinishWt/100 pcs (Lbs)Unit Of
Measure
 Material
List for Quote
UTP1426[3/8]”0.577”16400 Ea. Add
UTP1426EG[3/8]”0.577”16400Elec-Galv11 Ea. Add
UTP1426HG[1/2]”0.706”16400Hot-Dip11 Ea. Add
UTP1427[1/2]”0.706”16400 Ea. Add
UTP1427EG[3/4]”0.922”16400Elec-Galv12 Ea. Add
UTP14281”1.163”14600 Ea. Add
UTP1428EG1”1.163”14600Elec-Galv15 Ea. Add
UTP14291[1/4]”1.510”14600 Ea. Add
UTP1429EG1[1/4]”1.510”14600Elec-Galv18 Ea. Add
UTP14301[1/2]”1.71012800 Ea. Add
UTP1430EG1[1/2]”1.71012800Elec-Galv29 Ea. Add
UTP14312”2.19712800 Ea. Add
UTP1431EG2”2.19712800Elec-Galv33 Ea. Add
