Chicago Pneumatic Tool Co. Backfill Tampers

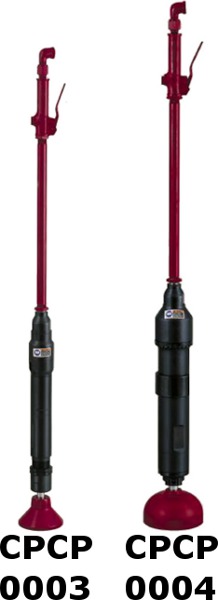

• Quickly and effectively compact soil around foundations and other structures and are indispensable for compacting backfill in trenches • The CPCP 0003 is well equipped to handle light to medium applications while the CPCP 0004 is ideal for heavier jobs CPCP 0003 & CPCP 0004 • Maximum power - slow, powerful blows efficiently and quickly compact all types of backfill, including clay and soils containing high percentages of finely crushed or powdered material • Heat-treated cylinder and chrome plated piston significantly extend tool life • Adjustable packing maintains a positive air seal • Aluminum butt held with clamp screw for quick, easy replacement • Exhaust deflector directs air, moisture and oil away from operator • Integral oiler continuously lubricates tool during operation • Well-balanced, smooth-operating tool is easily guided by one person • 1/2” (NPT) air inlet thread • For quieter operation, optional mufflers are available Scroll down for full product description
|
|
| Item # | Valve Type | Unit Of Measure |
Material List for Quote |
Item Specifications
| Item # | Valve Type | Bore & Stroke (in.) | Blows Per Minute (bpm) | Net Weight (lbs.) | Overall Length (in.) | Piston Rod Body Dia. (in.) | Piston Rod Butt Size (in.) | Unit Of Measure |
Material List for Quote |
| CPCP 0003 | Simplate | 11[7/16] x 6 | 800 | 30 | 52 | [7/8] | 5 | Ea. | Add |
| CPCP 0004 | Ring | 2[1/4] x 6 | 780 | 42 | 50 | 1 | 6[1/4] | Ea. | Add |
| CPCP 0035 | Simplate | 1[1/2] x 5[1/2] | 800 | 36 | 4/[1/4] | - | - | Ea. | Add |
