Chicago Pneumatic Tool Co.

Combi Drills/Hammers


• These versatile tools are both a drill and a chipping hammer; a push of the rotation release button easily and quickly converts the tool to a hammer

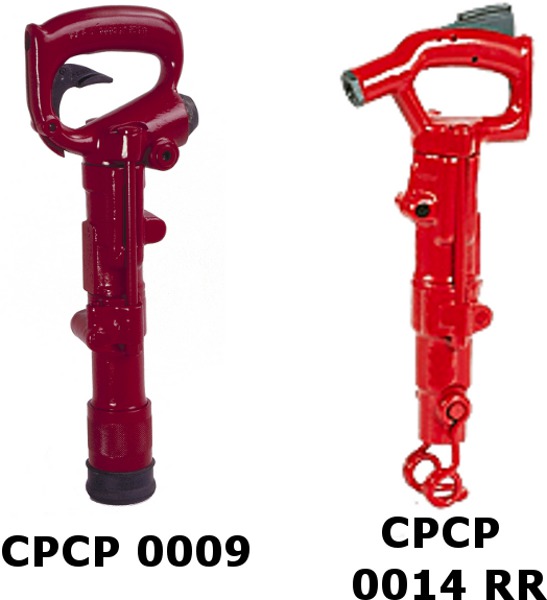

• The CPCP 009 and CPCP 0014 RR rotary hammers are designed for a wide variety of construction and maintenance applications such as driving or setting masonry anchors and drilling holes in concrete, bricks or rock; as a hammer, these tools can be used for chipping, scarifying, scaling and cleaning welds

All Models:

• Excellent power-to-weight ratio helps drill holes faster and easier than comparable electric rotary hammers

• Built-in oiler provides continuous lubrication

• Teasing throttle for precise control

• Rotation release button converts tool to a hammer (except on CPCP 0009 AC)

• Cushioned piston for smooth operation and long tool life

• Muffler available to reduce noise

CPCP 009:

• Right hand rotation

• With an adaptor, can be used with electric hammer drill bits

• Spline version available

• Adapter (R137586) round to SDS

CPCP 0014:

• Superior drilling rates

• Greater drilling capacity compared to plug hole drills

• Designed for production drilling of small holes
Scroll down for full product description

Item # Net Weight (lbs.)Unit Of
Measure
Material
List for Quote
Expand Table to Show All Columns
CPCP 0009 A8 Ea. Add
CPCP 0009 AC8 Ea. Add
CPCP 0009 F8 Ea. Add
CPCP 0014 RR15 Ea. Add
Item Specifications

Item # Net Weight (lbs.)Overall Length (in.)Type of Chuck (in.)Chuck Size (in.)Unit Of
Measure
Material
List for Quote
CPCP 0009 A814[3/4]round shank[3/4] x 3[ Ea. Add
CPCP 0009 AC814[3/4]round shank[3/4] x 3[ Ea. Add
CPCP 0009 F814[3/4]spline drive Ea. Add
CPCP 0014 RR1518[1/2]spring hex shank[7/8] x 3[ Ea. Add
