Chicago Pneumatic Tool Co. Chipping Hammers

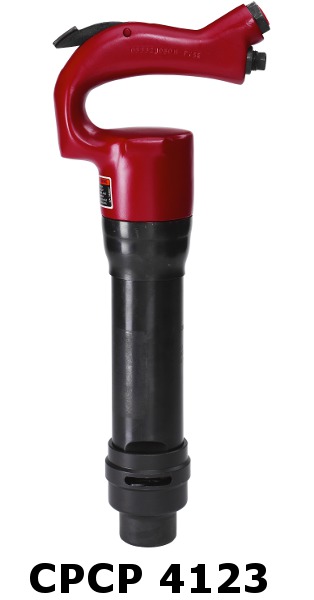

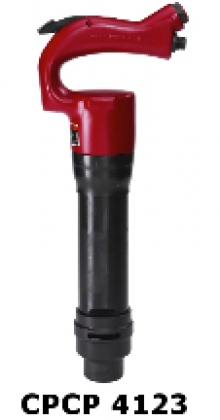

CPCP 0012: • The new addition to the CP range of pneumatic hammers for light chipping and scaling duties • Since the CPCP 0012 is light and has medium hitting power, it is very easy to handle and control for more precise jobs • Typical applications include alteration work, hole making and trimming CPCP 4123: • The most popular chipping hammer; the CPCP 4123 is used for a wide variety of construction and industrial applications, from light to medium chipping to heavy cutting; choose the cylinder size that best suits your particular application • Classic simplate valve • Heat treated cylinder • Now with spline lock instead of clip locking mechanism CPCP 4125: • They extra features of the CPCP 4125 make it more suitable for tough construction and industrial applications, including foundries, shipyards, refineries, or fabrication shops • Even in hot, dirty working conditions, it will consistently hit hard and last longer than conventional hammers • Unique ring valve as standard for harder blow in tough applications or dirty environments • Chrome plated cylinder for extra durability • Spline locking to prevent loosening of handle or cylinder CPCP 4123 & CPCP 4125: • Powerful, yet compact and lightweight • Rugged construction, hardened steel cylinder and handle • Teasing throttle for precise control • Open grip handle with self closing outside trigger • Available in 2”, 3” or 4” cylinder stroke versions Choice of bushing: • .680” Round chisel rotates freely • .580” Hex prevents chisel rotation CPCP 4130: • Designed to tackle punishing jobs with the hard hitting power that you expect from CP • It is used for medium-duty to heavy-duty chipping, cutting and trimming operations; the four bolt handle provides higher air flow and durability • Locking mechanism with four high-strength 1/2” bolts • “D” handle with outside trigger and extra safety mechanism • Muffler assembly as standard • Simplate valve for smooth operation • Strong and reliable • Available in 3” or 4” cylinder stroke versions Choice of bushing: • .680” Round chisel rotates freely • .580” Hex prevents chisel rotation CPCP 4132: • A durable 4-bolt chipping hammer with inside trigger and standard retainer; available in two cylinder sizes to suite your particular application Scroll down for full product description
|
Item # | Old Model Name | Unit Of Measure |
Material List for Quote |
Item Specifications
Item # | Old Model Name | Weight (lbs.) | Cylinder Stroke | Length (in.) | Blows Per Minute (bpm) | Air Consump. (CFM) | Muffler Included As Standard | Chuck Size (in.) | Unit Of Measure |
Material List for Quote |
CPCP 0012 2BR | 12 | 2 | 16 | 2600 | 20 | yes | .680” Rnd | Ea. | Add | |
CPCP 0012 2H | 12 | 2 | 16 | 2600 | 20 | yes | .580” Hex | Ea. | Add | |
CPCP 4123 2H | CPCP 4123 PYRE | 13 | 2 | 12[7/8] | 2400 | 25 | - | .580” Hex | Ea. | Add |
CPCP 4123 2R | CPCP 4123 PYRA | 13 | 2 | 12[7/8] | 2400 | 25 | - | .680” Rnd | Ea. | Add |
CPCP 4123 3H | CPCP 4123 PYSE | 15 | 3 | 14[7/8] | 1920 | 26 | - | .580” Hex | Ea. | Add |
CPCP 4123 3R | CPCP 4123 PYSA | 15 | 3 | 14[7/8] | 1920 | 26 | - | .680” Rnd | Ea. | Add |
CPCP 4123 4H | CPCP 4123 PYTE | 16 | 4 | 15[1/2] | 1500 | 27 | - | .580” Hex | Ea. | Add |
CPCP 4123 4R | CPCP 4123 PYTA | 16 | 4 | 15[1/2] | 1500 | 27 | - | .680” Rnd | Ea. | Add |
CPCP 4125 2H | CPCP 4125 PALE | 13 | 2 | 13[1/4] | 2400 | 26 | - | .580” Hex | Ea. | Add |
CPCP 4125 2R | CPCP 4125 PALA | 13 | 2 | 13[1/4] | 2400 | 26 | - | .680” Rnd | Ea. | Add |
CPCP 4125 3H | CPCP 4125 PAME | 15 | 3 | 14[1/4] | 1920 | 27 | - | .580” Hex | Ea. | Add |
CPCP 4125 3R | CPCP 4125 PAMA | 15 | 3 | 14[1/4] | 1920 | 27 | - | .680” Rnd | Ea. | Add |
CPCP 4125 4H | CPCP 4125 PANE | 16 | 4 | 15[1/4] | 1500 | 28 | - | .580” Hex | Ea. | Add |
CPCP 4125 4R | CPCP 4125 PANA | 16 | 4 | 15[1/4] | 1500 | 28 | - | .680” Rnd | Ea. | Add |
CPCP 4130 3H | CPCP 4130 3HO | 18[1/2] | 3 | 16[1/2] | 1920 | 26 | yes | .580” Hex | Ea. | Add |
CPCP 4130 3R | CPCP 4130 3RO | 18[1/2] | 3 | 16[1/2] | 1920 | 26 | yes | .680” Rnd | Ea. | Add |
CPCP 4130 4H | CPCP 4130 4HO | 19[1/2] | 4 | 17[3/4] | 1500 | 27 | yes | .580” Hex | Ea. | Add |
CPCP 4130 4R | CPCP 4130 4RO | 19[1/2] | 4 | 17[3/4] | 1500 | 27 | yes | .680” Rnd | Ea. | Add |
CPCP 4132 3H | 18 | 3 | 17 | 1800 | 33.23 | yes | .580” Hex | Ea. | Add | |
CPCP 4132 3R | 18 | 3 | 17 | 1800 | 33.23 | yes | .680” Rnd | Ea. | Add | |
CPCP 4132 4H | 19 | 4 | 17 | 1800 | 33.23 | yes | .580” Hex | Ea. | Add | |
CPCP 4132 4R | 19 | 4 | 17 | 1800 | 33.23 | yes | .680” Rnd | Ea. | Add |
