Why Lift-All?

Lift-All Promotes User Safety

  • Safety Seminars and Sling Inspections are available to all users.
  • Lift-All quality assurance procedures produce consistently superior products.
  • Warning, Inspection and operationg practices information is supplied with every order.
  • By manufacturing all types of slings, Lift-All will, without prejudice, recommend the best sling for the application.

 Lift-All Saves You Time

  • Our engineering staff can design the slings or lifting devices needed for special lifting applications.
  • Lift-All ins the only source that can manufacture all of your sling needs.
  • Local manufacturing and warehousing from five U.S. locations assures prompt delivery.
  • Edge is fully trained and well qualified to assist in sling selection, applicatiion decisions and inspections.

 Lift-All Saves You Money

  • Our combination of uncompromising product quality, service and technology makes Lift-All your best choice in long term value.



Important Lift-All Documents




Lift-All Web Slings           Lift-All OSHA &
  "How To Order"        Manufacturer Requirements

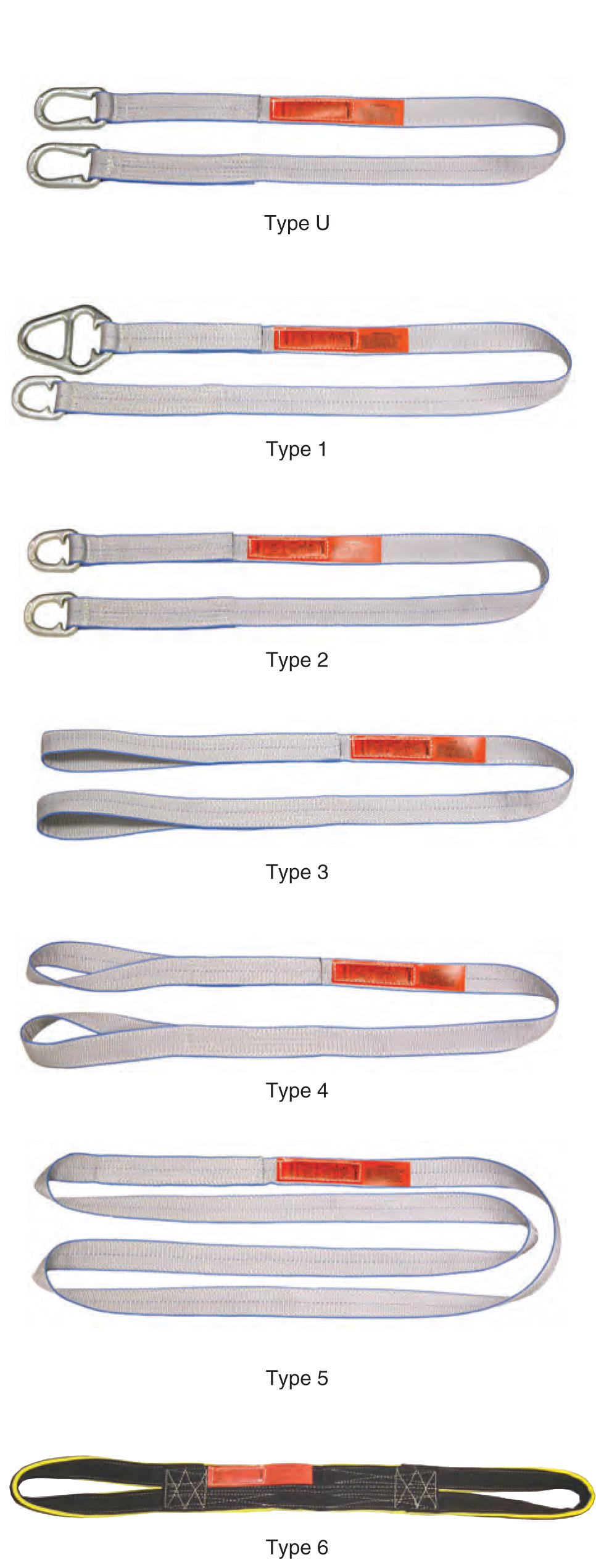

 STANDARD WEB SLING TYPES

Hardware Slings


Unilink and Web-Trap hardware can help to extend sling life by protecting the webbing from abrasion on rough crane hooks. Hardware can often be reused, lowering sling replacement costs.


 Type U (UU) - has the preferred and economical Unilink fitting on each end for use in a vertical, choker or basket hitch. Unilinks allow choking from either end to save time and vary wear points.


Type 1 (TC) - has a Web-Trap triangle and choker fitting on either end. Typical use is in a choker hitch. Can also be used in vertical and basket hitches.


Type 2 (TT) - has a Web-Trap triangle on each end. Normally used in a basket hitch, but can also be used in a vertical hitch. They cannot be used as a choker.


Type 3 (EE) - Flat Eye slings are very popular and can be used in all three types of hitches. They are easier to remove from beneath the load than sling Types 1, 2 and 4. Unless Type 4 is requested, Type 3 will be supplied as the standard EE sling.


Type 4 (EE) - Twisted Eye slings are similar to Type 3 except the eyes are turned 90° to form a better choker hitch. The eyes of a Type 4 nest better on the crane hook.


Type 5 (EN) - Endless slings are versatile and the most economically priced. They can be used in all three types of hitches. The sling can be rotated to minimize wear. The sling legs can be spread for improved load balance.


Type 6 (RE)-An endless sling with butted edges sewn together to double the sling width. They have reinforced eyes and wear pads on both sides of body and eyes for premium wear resistance.
