Electrical Tools
Spokane, WA 509-535-9841
Billings, MT 406-248-7196
Yakima, WA 509-248-1144
Gillette, WY 307-682-8522

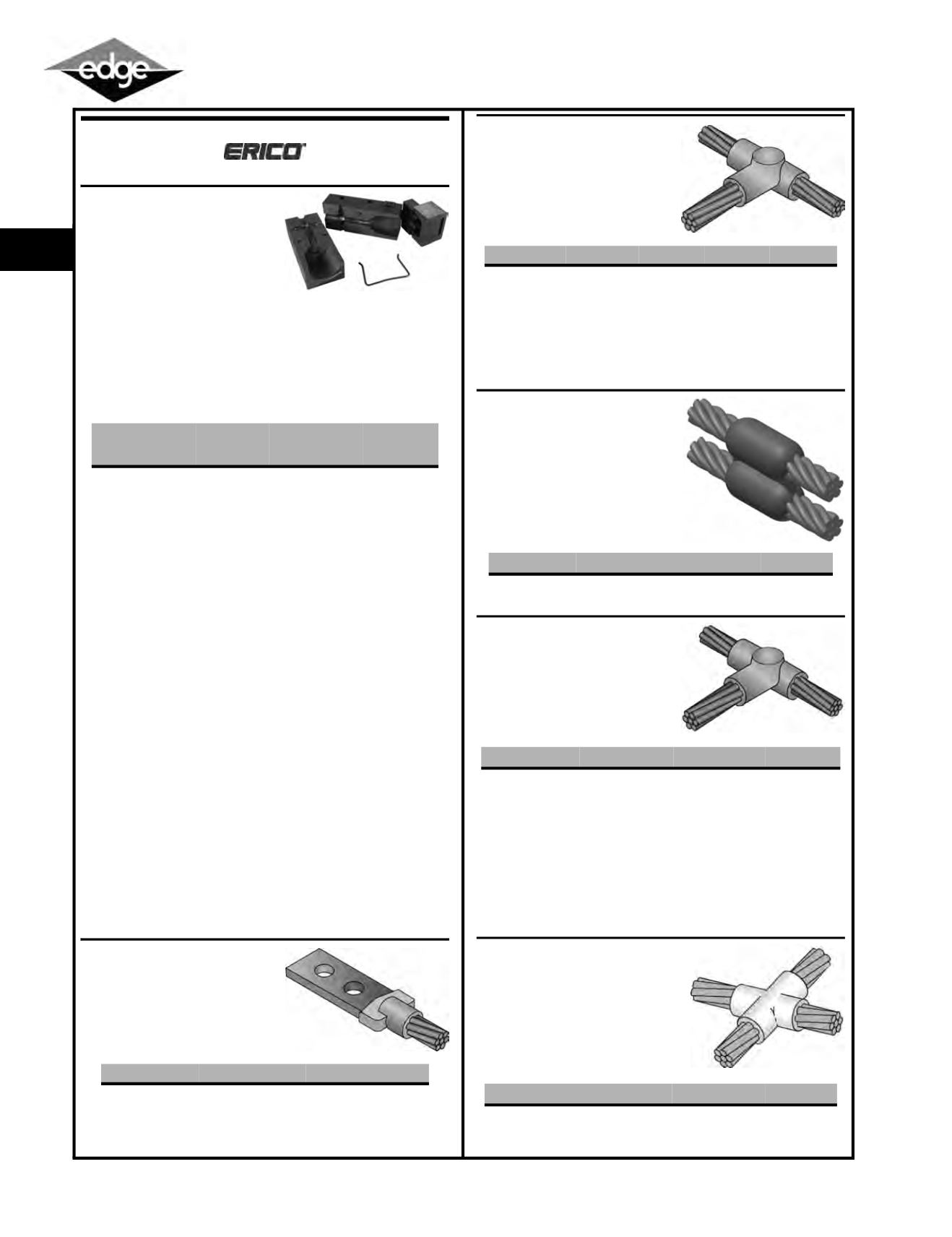

ERICO/CADDY
GY Mold
Cadweld
•
The two-piece GY mold lets you
make connections in a trench in
about half the time it would take
with compression connections or
other exothermic connections and
at a fraction of the cost
•
Ergonomic two-piece molds use standard L160 and L159 handle
clamps-the same clamps you use with other Cadweld® molds
•
Saves labor costs; a GY connection can be made by one person in
about one minute-much faster than other methods
•
Includes a new baffle mold cover which reduces emissions and
extends the handle clamp life
•
Available with wear plates
ERICO/CADDY
Lug
Cadweld
•
Cable to lug or bus bar
ERICO/CADDY
TA Connection
Cadweld
•
Connection Type: TA
•
Mold Family: Cable to cable
•
Mold Type: Standard mold
•
Ease of Use: Preferred
ERICO/CADDY
Parallel Horizontal
Conductors
•
Parallel through connection of
horizontal cables
ERICO/CADDY
Horizontal Tee Cables
•
Tee of horizontal run and tap
cables
ERICO/CADDY
Horizontal X Cables
•
Cross of horizontal cables, tap
cable cut-cables in same plane
Item #
Mold Part
Number
Copper Clad
Ground Rod
(Run) (in.)
Conductor
Size (Tap)
CD115PLUSF20 GY R142C
¹⁄₂
1/0 CONC
CD115PLUSF20 GY R142G
¹⁄₂
2/0 CONC
CD150PLUSF20 GY R142L
¹⁄₂
3/0 CONC
CD150PLUSF20 GY R142Q
¹⁄₂
4/0 CONC
CD150PLUSF20 GY R142V
¹⁄₂
250 CONC
CD90PLUSF20 GY R161T
⁵⁄₈
2 SOL
CD90PLUSF20 GY R161V
⁵⁄₈
2 CONC
CD115PLUSF20 GY R162C
⁵⁄₈
1/0 CONC
CD115PLUSF20 GY R162G
⁵⁄₈
2/0 CONC
CD150PLUSF20 GY R162L
⁵⁄₈
3/0 CONC
CD150PLUSF20 GY R162Q
⁵⁄₈
4/0 CONC
CD150PLUSF20 GY R162V
⁵⁄₈
250 CONC
CD250PLUSF20 GY R163D
⁵⁄₈
350 CONC
CD400PLUSF20 GY F163Q
⁵⁄₈
500 CONC
CD90PLUSF20 GY R181T
³⁄₄
2 SOL
CD90PLUSF20 GY R181V
³⁄₄
2 CONC
CD115PLUSF20 GY R182C
³⁄₄
1/0 CONC
CD115PLUSF20 GY R182G
³⁄₄
2/0 CONC
CD150PLUSF20 GY R182L
³⁄₄
3/0 CONC
CD150PLUSF20 GY R182Q
³⁄₄
4/0 CONC
CD200PLUSF20 GY R182V
³⁄₄
250 CONC
CD300PLUSF20 GY R283D
³⁄₄
350 CONC
CD500PLUSF20 GY F183Q
³⁄₄
500 CONC
Item #
Run Size (in.)
Tap Size
CDLAC-2QEK
¹⁄₄
x 3 Lug/Bus
4/0 Concentric
CDLAC-3QEH
¹⁄₄
x 2 Lug/Bus 500 KCM Concentric
Item # Run Family Run Size Tap Family Tap Size
CDTAC-2S1K Copper
Ropelay
4/0
Ropelay
Copper
Solid
#4 Solid
CDTAC-4L2Q Copper
Concentric
750 KCM
Concentric
Copper
Concentric
4/0
Concentric
CDTAC-9J9J Copper
weld
Stranded
19/#6
Copper
weld
Copper
weld
Stranded
19/#6
Copper
weld
Item # Cable Size Run Cable Size Tap Weld Metal
CDPTC-1T1T 2 SOL
2 SOL
65
Item #
Cable Size Run Cable Size Tap Weld Metal
CDTAC-1T1T
2 SOL
2 SOL
45
CDTAC-1V1L
2
4
45
CDTAC-2C2C
1/0
1/0
90
CDTAC-2G2G
2/0
2/0
90
CDTAC-2Q2Q
4/0
4/0
150
CDTAC-2Q2G
4/0
2/0
90
CDTAC-2V2G
250
2/0
90
Item #
Cable Size Run Cable Size Tap Weld Metal
CDXAC-2Q2Q 4/0
4/0
200
