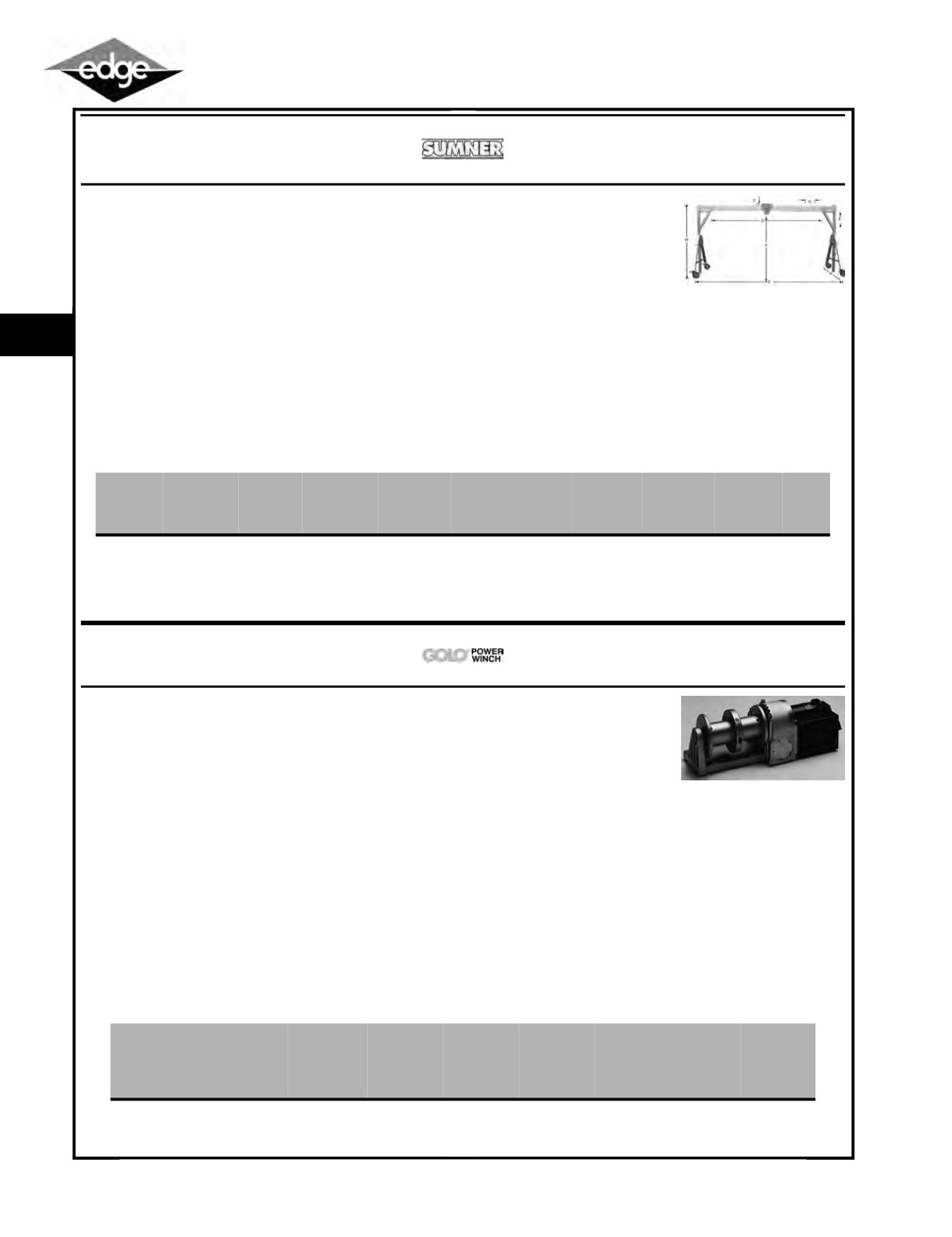

SUMNER
2 Ton Aluminum Gantry
GH2T
Lightweight, portable and easily assembled GH2T Gantry Lift for mechanical contractors. The GH2T Gantry lift
has a lift capacity of up to 2 metric tons (4,400 lbs) and is available in 4 Imperial sizes (8, 10, 12 and 15 foot)
•
Simpler to transport, assemble and adjust than comparable Gantry lifts
•
The entire assembly is light enough to be erected by a two-man crew
•
The advanced design allows a pivoting feature where the beam with trolley is inserted into receiver of each A-Frames then raised and final
bolting of beam occurs
•
Height adjustments can be made on either side by one man using the adjustable mast lifting handle and removable quick-action mast locking
pin
•
Beams come with convenient carrying handles on both ends
•
A-frame assemblies fold up and lock in folded position with plunger pins
•
The entire assembly is pinch-point free
•
The Sumner GH2T Gantry lift consists of 3 main components: two A-frames and a cross beam. A-frames lock in folded position using
plunger pins and feature a removable quick action locking pin. Adjustable lifting handle allow height adjustments to be made in 6-inch
increments. Each A-frame has two 8-inch lockable casters and weighs 113 lbs with casters. The trolley features a set screw that holds it in
place during assembly and weights approximately 15 lbs. Cross beams come in seven sizes (8, 10, 12 and 15 foot) and feature two span
adjustments on either end of 13-inches as well as nylon carrying handles.
GOLO
Electric Winch
Power Winch Designation Code:
•
Winch Series: 1200=1200, 7=700
•
Voltage: 15=115 volt, 30=230 volt
•
Switch Control: S=Standard(mounted on winch), R=Remote (10-ft. remote cord, additional lengths
available), MO=Momentary Selector Switch, Ma=Maintained Selector Switch
•
If Remote Disconnect is required, add an X after model # (Ex. 12-15 RMO X)
•
If Double Drum is required add a D before model # (Ex. D 12-15 RMO)
Important:
•
First cable layer should have at least the first five wraps not in use
•
Each additional cable layer reduces capacity
•
Block and tackle arrangement (use double line only): doubles capacity and cable on drum but reduces line speed by one-half
Cable On Drum, Cable Dia. (in.) x Drum Capacity (ft.) x Breaking Strength (lbs.):
•
1/8 x 512 x 2000
•
5/32 x 325 x 2800
•
3/16 x 215 x 4200
•
7/32 x 165 x 5600
•
1/4 x 135 x 7000
•
Galvanized aircraft cable, 7 x 19, is recommended for strength and flexibility
Important:
Cordem specifies a minimum cable safety factor of 5:1 and a safety latch on all hooks.
Item # Model No.
Max/Min
Height To
Lifting
Eye (A)
Max Height
To Top Of
Beam (B)
MaxHeight
To Top Of
Trolley (C)
Max
Working
Span (D)
Span
Between
Wheels
(E)
Height
Adjustment
(F)
Span
Adjustment
(G)
Max Width
Of A
Frame (H)
Weight
(lbs.)
SU785101 GH2T-7.5 113”/83”
131”
2
¹⁄₂
”
142”
15’
6”
13”
60
³⁄₄
”
328
SU785100 GH2T-15 113”/83”
131”
2
¹⁄₂
”
52”
7.5’
6”
13”
60
³⁄₄
”
287
Item #
Lift Capacity
(lbs.) 1st
Drum Cable
Layer
Lift Capacity
(lbs.) Full
Drum
Line Speed
(ft./min.) In
1st Drum
Cable Layer
Line Speed
(ft./min.) In
Full Drum
Line Speed
(ft./min.)Out
1st. Drum
Cable Layer
Line Speed
(ft./min.)
Out Full
Drum
Line Speed
(ft./min.) No
Load 1st.
DrumCable
Layer
Line Speed
(ft./min.) No
Load Full
Drum
GO12-15-RPNT 1200
700
17
25
37
54
28
41
