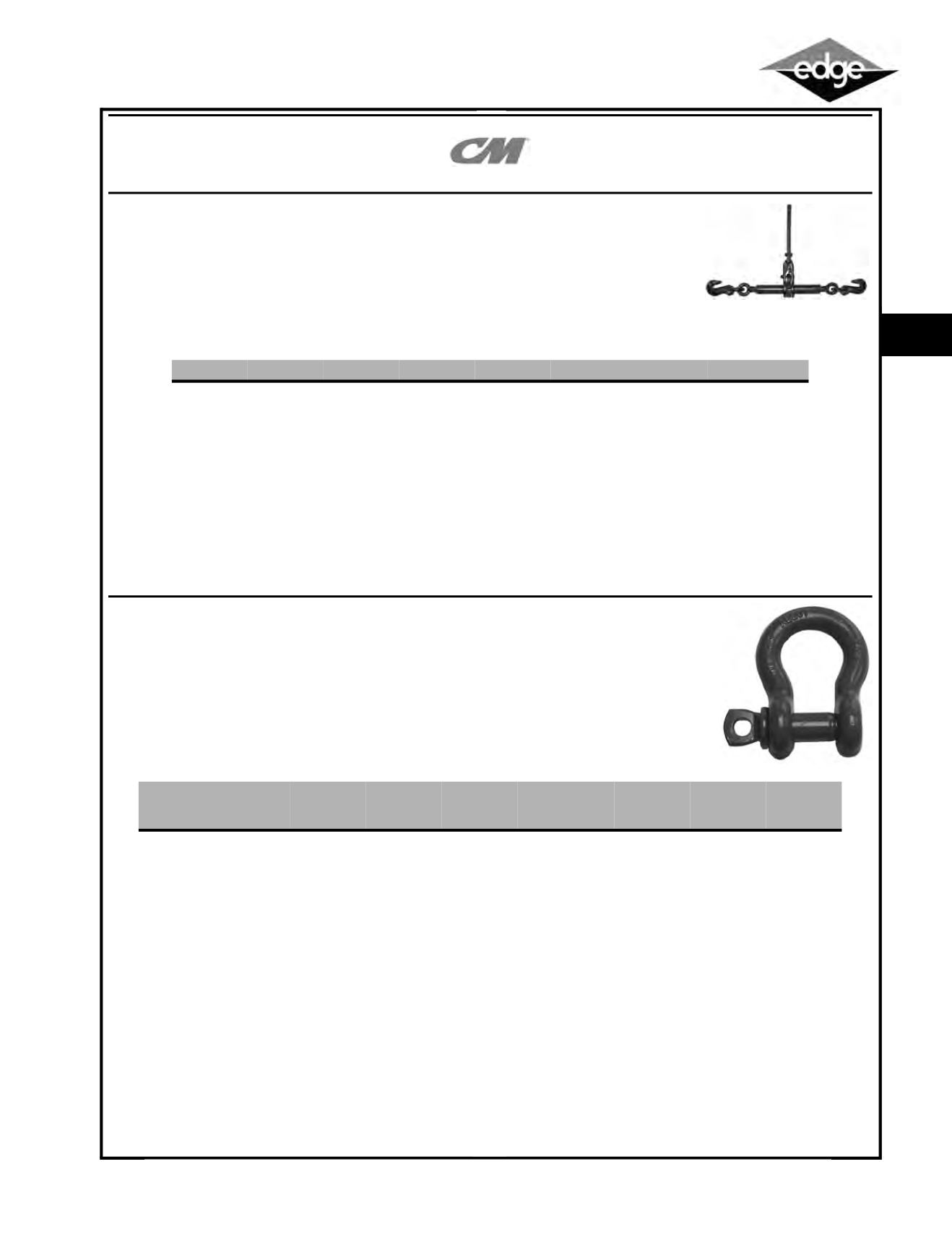

COLUMBUS MCKINNON CORP.
Binders
Ratchet Type Load Binder
• Each ratchet component is forged from pure alloy steel
• Handle is designed loose using self-locking one-way bolts allowing easy removal of unwanted debris
• Proof tested to 50% of the minimum breaking strength
• Gears are permanently welded to the barrel
COLUMBUS MCKINNON CORP.
CM Super Strong Anchor Shackles
Screw Pin Type
• All shackle pins are forged from alloy steel, heat treated and tempered to give greater strength
• All shackles are marked with size (inches and millimeters) and working load limit in tons
• Ultimate strength equals 6 times working load limit
• Proof load equals 2.2 times working load limit
• Built-in distortion detectors (3/16” - 2”)
Item # Size (G30) Size (G43) Size (G70) End Fittings Working Load Limit (lbs.) Take Up (in.)
CM48364 ¹⁄₄ ¹⁄₄ - Hook/Hook 2,600 4
CM48811 - - - Eye/Eye (no
hook)
5,400 8
CM48363 - - - Eye/Eye (no
hook)
13,000 8
CM48810 ³⁄₈ ³⁄₈ ⁵⁄₁₆ Hook/Hook 5,400 8
CM48360 ³⁄₈ ³⁄₈ ³⁄₈ Hook/Hook 7,100 8
CM48365 ³⁄₈ ³⁄₈ ⁵⁄₁₆ Hook/Hook 5,400 8
CM48366 ¹⁄₂ ¹⁄₂ ³⁄₈ Hook/Hook 9,200 8
CM48367 ⁵⁄₈ ⁵⁄₈ ¹⁄₂ Hook/Hook 13,000 8
Item # Size (in.)
Work. Ld.
Lmt. (tons)
P Dia. of Pin
(in. )
L Inside
Lgth. (in. )
B Inside Wdth.
at Bow (min.)
(in. )
R OD of
Eye (max.)
(in. )
W Wdth.
Btwn. Eyes
(in. ) Desc.
CMM646P ¹⁄₄ ³⁄₄ ⁵⁄₁₆ 1¹⁄₈ ³⁄₄ ⁷⁄₈ ¹⁵⁄₃₂ Painted
CMM647P ⁵⁄₁₆ 1 ³⁄₈ 1¹⁄₄ ¹³⁄₁₆ 1 ¹⁷⁄₃₂ Painted
CMM648P ³⁄₈ 1¹⁄₂ ⁷⁄₁₆ 1⁷⁄₁₆ ¹⁵⁄₁₆ 1 ¹⁄₈ ²¹⁄₃₂ Painted
CMM649P ⁷⁄₁₆ 2 ¹⁄₂ 1¹¹⁄₁₆ 1¹⁄₁₆ 1 ¹⁄₄ ³⁄₄ Painted
CMM650P ¹⁄₂ 3 ⁵⁄₈ 1⁷⁄₈ 1³⁄₁₆ 1 ³⁄₈ ¹³⁄₁₆ Painted
CMM651P ⁵⁄₈ 4¹⁄₂ ³⁄₄ 2³⁄₈ 1¹⁄₂ 1 ⁷⁄₈ 1¹⁄₁₆ Painted
CMM652P ³⁄₄ 6¹⁄₂ ⁷⁄₈ 2¹³⁄₁₆ 1³⁄₄ 2 ¹⁄₈ 1 ¹⁄₄ Painted
CMM653P ⁷⁄₈ 8¹⁄₂ 1 3⁵⁄₁₆ 2 2 ³⁄₈ 1⁷⁄₁₆ Painted
CMM654P 1 10 1¹⁄₈ 3³⁄₄ 2⁵⁄₁₆ 2 ⁵⁄₈ 1¹¹⁄₁₆ Painted
