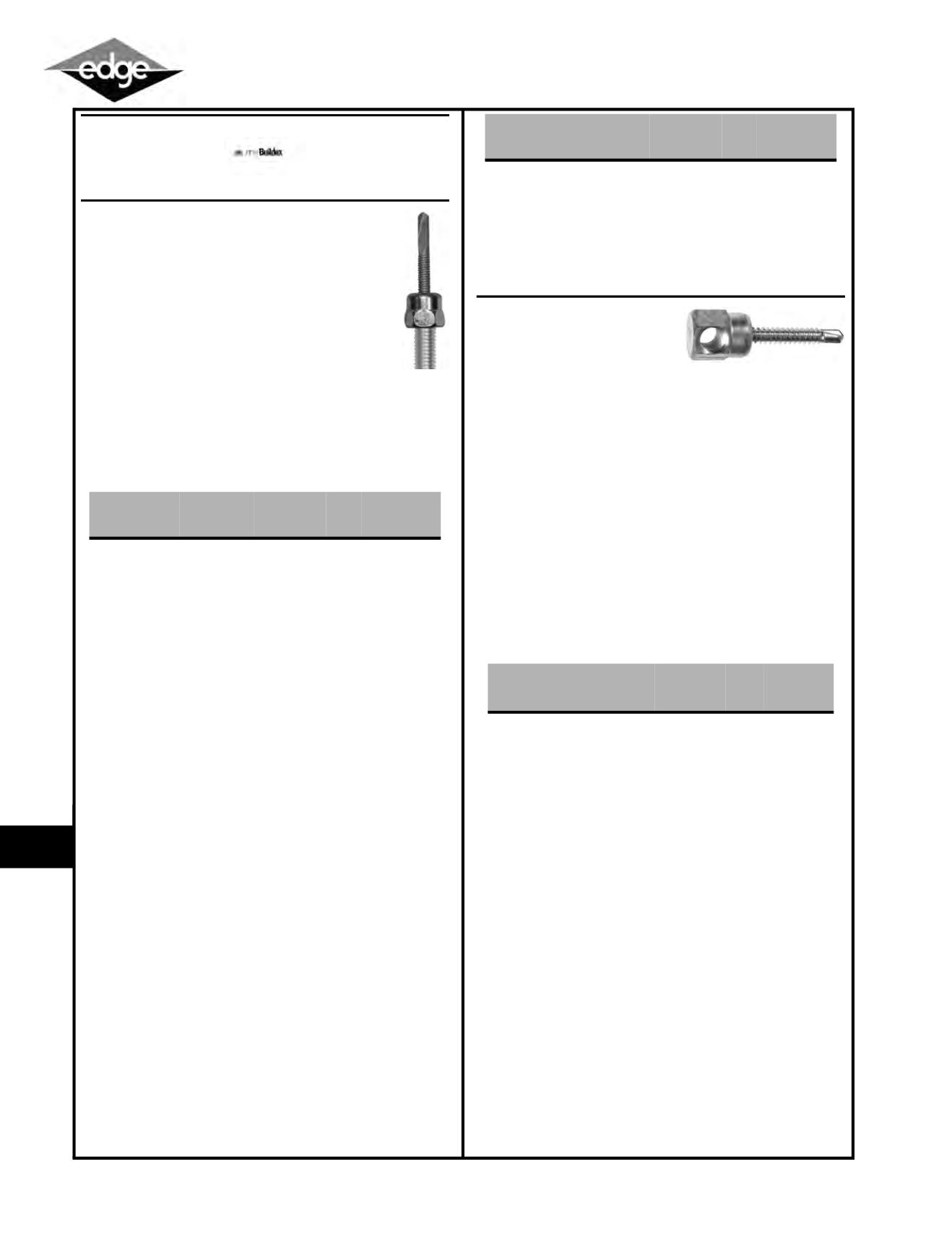

BUILDEX
Sammys® For Steel
Vertical Application
Sammys®
•
Made with Teks® self-drilling fasteners - no pre-drilling
required
•
Installs into steel range from 20 gauge – 1/2”
thicknesses
•
Saves time from traditional methods
•
Reduces installation costs
•
Quick to install using the Sammys® Nut Driver with a
cordless drill/driver
•
A standard screwgun with a depth sensitive nosepiece should be
used to install Teks; for optimal fastener performance, the
screwgun should be a minimum of 6 amps and have an RPM
range of 0-2500
•
1/4”-3/8” use #14 Black Nut Driver #8113910, 1/2” use #14 SW
Red Nut Driver # 8114910
•
Made in the USA
BUILDEX
Sammys®
Sidewinder™ For Steel
Horizontal Application
Sammys®
•
Made with Teks® self-drilling fasteners - no pre-drilling required
•
Installs into steel range from 20 gauge – 1/2” thicknesses
•
A standard screwgun with a depth sensitive nosepiece should be
used to install Teks; for optimal fastener performance, the
screwgun should be a minimum of 6 amps and have an RPM
range of 0-2500
•
Saves time from traditional methods
•
Reduces installation costs
•
Quick to install using the Sammys Nut Driver with a cordless
drill/driver
•
Use #14 SW Red Nut Driver # 8114910
•
Sammys for Seismic
•
Part numbers 8054957 and 8056957 meet UL Standard 203A for
branch/end of line restraint using 3/8” or 1/2” all thread
•
Made in the USA
Item #
Model
Size
Rod
Size
(in.)
Ultimate
Pullout (lbs.)
RABX8024957 DSTR 100*
¹⁄₄
-20 X 1
TEKS 3
¹⁄₄
1510
(20GA.)
RABX8025957 DST 100
¹⁄₄
-14 X 1
TEKS 3
¹⁄₄
446 (20GA.)
RABX8026957 DST 150
¹⁄₄
-14 X 1
¹⁄₂
TEKS 3
¹⁄₄
970 (16GA.)
RABX8027957 DST 200
¹⁄₄
-14 X 2
TEKS 3
¹⁄₄
446 (20GA.)
RABX8030957 TEK 500 12-24 X 1
¹⁄₂
TEKS 5
¹⁄₄
3125 (
³⁄₁₆
”)
RABX8038957 DSTR 1*
¹⁄₄
-20 X 1
TEKS 3
³⁄₈
1510
(20GA.)
RABX8037957 DSTR 1
¹⁄₂
* 12-24 X 1
¹⁄₂
TEKS 5
³⁄₈
1510 (
³⁄₁₆
”)
RABX8039957 DSTR 516*
⁵⁄₁₆
-18 X 1
¹⁄₄ ³⁄₈
2200
(20GA.)
RABX8040957 DST 10
¹⁄₄
-14 X 1
TEKS 3
³⁄₈
446 (20GA.)
970 (16GA.)
RABX8077925 DST10-SS
¹⁄₄
-14 X 1
TEKS 3
³⁄₈
446 (20GA.)
970 (16GA.)
RABX8041957 DST 15
¹⁄₄
-14 X 1
¹⁄₂
TEKS 3
³⁄₈
446 (20GA.)
970 (16GA.)
RABX8078925 DST 15-SS
¹⁄₄
-14 X 1
¹⁄₂
TEKS 3
³⁄₈
446 (20GA.)
970 (16GA.)
RABX8042957 DST 20
¹⁄₄
-14 X 2
TEKS 3
³⁄₈
446 (20GA.)
970 (16GA.)
RABX8043957 DST 25
¹⁄₄
-14 X 2
¹⁄₂
TEKS 3
³⁄₈
446 (20GA.)
970 (16GA.)
RABX8044957 DST 30
¹⁄₄
-14 X 3
TEKS 3
³⁄₈
446 (20GA.)
970 (16GA.)
RABX8045957 DST 516
⁵⁄₁₆
-18 X 1
¹⁄₄
TEKS 3
³⁄₈
1500 (
³⁄₁₆
”)
RABX8046957 TEK 50 12-24 X 1
¹⁄₂
TEKS 5
³⁄₈
3125 (
³⁄₁₆
”)
RABX8031925 DST 2.0
¹⁄₄
-14 X 2
TEKS 3
¹⁄₂
446 (20GA.)
970 (16GA.)
RABX8033925 DSTR 1.0*
¹⁄₄
-20 X 1
TEKS 3
¹⁄₂
1510
(20GA.)
RABX8034925 DSTR 5.16*
⁵⁄₁₆
-18 X 1
¹⁄₄
TEKS 3
¹⁄₂
2200
(20GA.)
RABX8035925 DST 5.16
⁵⁄₁₆
-18 X 1
¹⁄₄
TEKS 3
¹⁄₂
1500 (
³⁄₁₆
”)
RABX8036925 TEK 5.0 12-24 X 1
¹⁄₂
TEKS 5
¹⁄₂
3125 (
³⁄₁₆
”)
* Includes Retaining Nut
