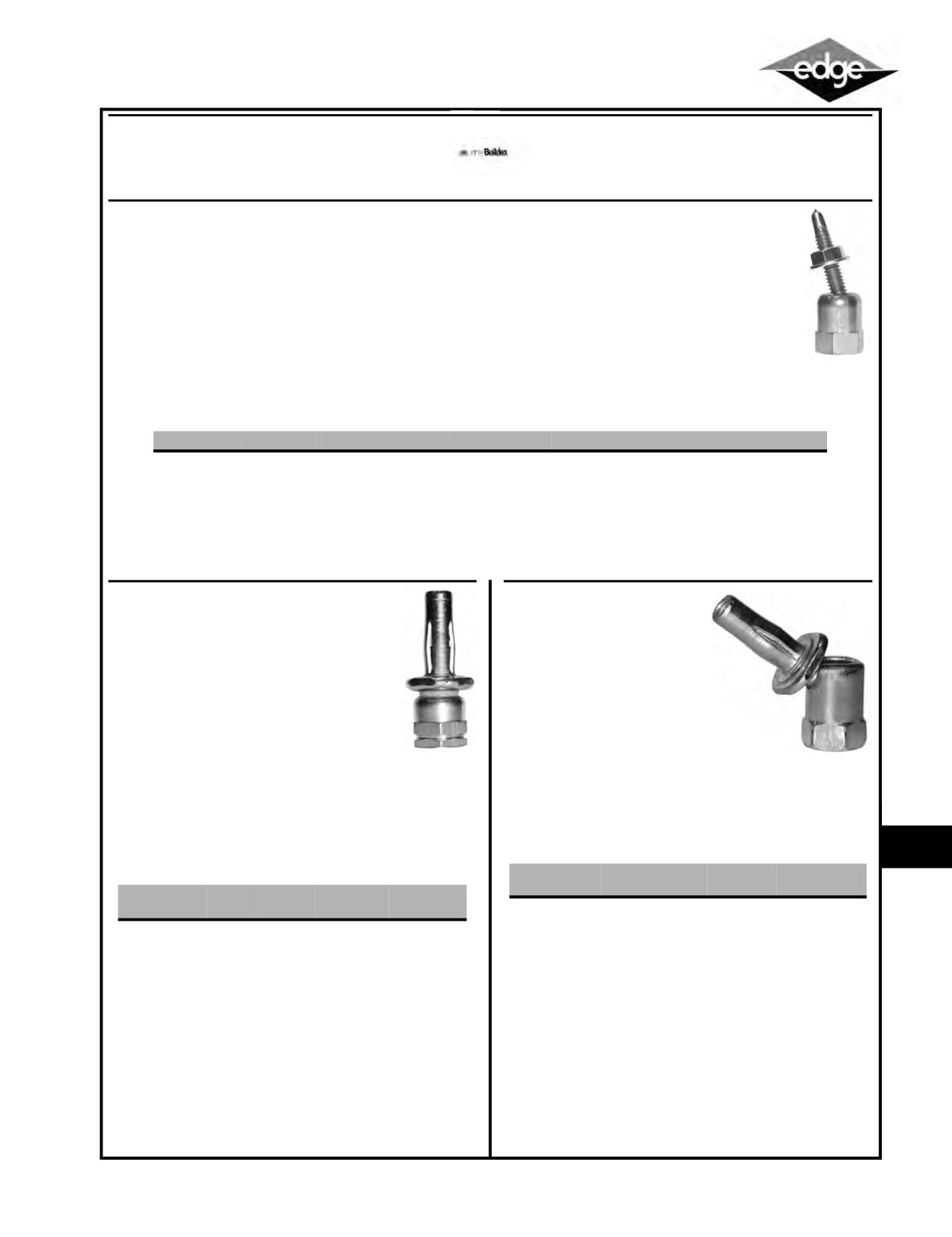

BUILDEX
Sammys® Swivel Head™
For Structural Steel and Bar Joist
Swivel Applications
Sammys®
•
Eliminates distortion of threaded rod in sloped roof applications
•
Accommodates 3-1/2 x 12 pitch
•
Installs into angled z-purlin; allows threaded rod to hang plumb
•
Allows 17° deflection from vertical
•
3/8” use #14 Black Nut Driver #8113910, 1/2” use #14 SH Orange Nut Driver # 8273910
•
Sammys for Seismic:
•
Part number 8270957 meets UL Standard 203A for branch/end of line restraint using 3/8” or 1/2” all thread
•
Made in the USA
BUILDEX
Sammys® X-Press®
Vertical Apllication
Sammys®
•
The Sammys® X-Press™ expands to provide
direct vertical attachment in light gauge steel deck
or purlin, (22 ga. - 1/8”)
•
Installs in seconds with Sammys® X-Press It™
Tool, saving time & installation costs
•
Use in applications where access to the back of
the installed fastener is prohibited: metal roof deck, tubular steel,
or vapor barrier fabric
•
Less jobsite material needed
•
No retaining nut required
•
Provides design flexibility
•
Made in the USA
BUILDEX
Sammys® X-Press
Swivel™
Swivel Application
Sammys®
•
The X-Press Swivel™ allows you
to hang plumb in extreme roof
pitches: 89° in z-purlin, 45° in
metal deck for 12/12 pitch
•
Installs in seconds with Sammys®
X-Press It™ Tool, saving time &
installation costs
•
Use in applications where access to the back of the installed
fastener is prohibited: metal roof deck, tubular steel, or vapor
barrier fabric
•
Sammys for Seismic:
•
Part numbers 8295922, 8272957 and 8271957 meet UL Standard
203A for branch/end of line restraint using 3/8” or 1/2” all thread
Item #
Model
Size (in.)
Rod Size (in.)
Ultimate Pullout (lbs.)
RABX8137957 SH-DSTR 1*
¹⁄₄
-20 X 1 TEKS 3
³⁄₈
3220 (
³⁄₁₆
”)
RABX8268957 SH-TEK 50 12-24 X 1
³⁄₄
TEKS 5
³⁄₈
2368 (
¹⁄₂
” Steel Vertical) 1306 (45° Off Vertical)
2281 (
³⁄₁₆
” HSS) 1585 (
³⁄₁₆
” HSS 45° Off Vertical)
RABX8270957 SH-TEK 5.0 12-24 X 1
³⁄₄
TEKS 5
¹⁄₂
2368 (
¹⁄₂
” Steel Vertical) 1306 (45° Off Vertical)
2281 (
³⁄₁₆
” HSS) 1585 (
³⁄₁₆
” HSS 45° Off Vertical)
* DOES Not Comply With ROHS Requirements / Includes Retaining Nut
Item #
Model
Rod Size
(in.)
Application
Ultimate
Pullout (lbs.)
RABX8181922 XP 200
¹⁄₄
Metal Deck
1146
(22GA.)
RABX8150922 XP 20
³⁄₈
Metal Deck
1146
(22GA.)
RABX8153922 XP 35
³⁄₈
Purlin
1783
(16GA.)
RABX8150922 XP 20
³⁄₈
Metal Deck
(Pre-Pour)
Metal Deck
(Post-Pour)
1146
(22GA.)
Item #
Model
Rod
Size(in) Application
Ultimate
Pullout (lbs.)
RABX8294922 SXP 20
³⁄₈
Metal Deck
1061
(22 GA. Vert)
829
(45° Off Vert)
RABX8295922 SXP 35
³⁄₈
Purlin
1675
(16 GA. Vert)
1558
(89° Off Vert)
RABX8272957 SXP 2.0
¹⁄₂
Metal Deck
1061
(22 GA. Vert)
829
45° Off Vert)
RABX8271957 SXP 3.5
¹⁄₂
Purlin
1675
(16 GA. Vert)
1558
(89° Off Vert)
