Anchors & Fastener Systems
Spokane, WA 509-535-9841
Billings, MT 406-248-7196
Yakima, WA 509-248-1144
Gillette, WY 307-682-8522

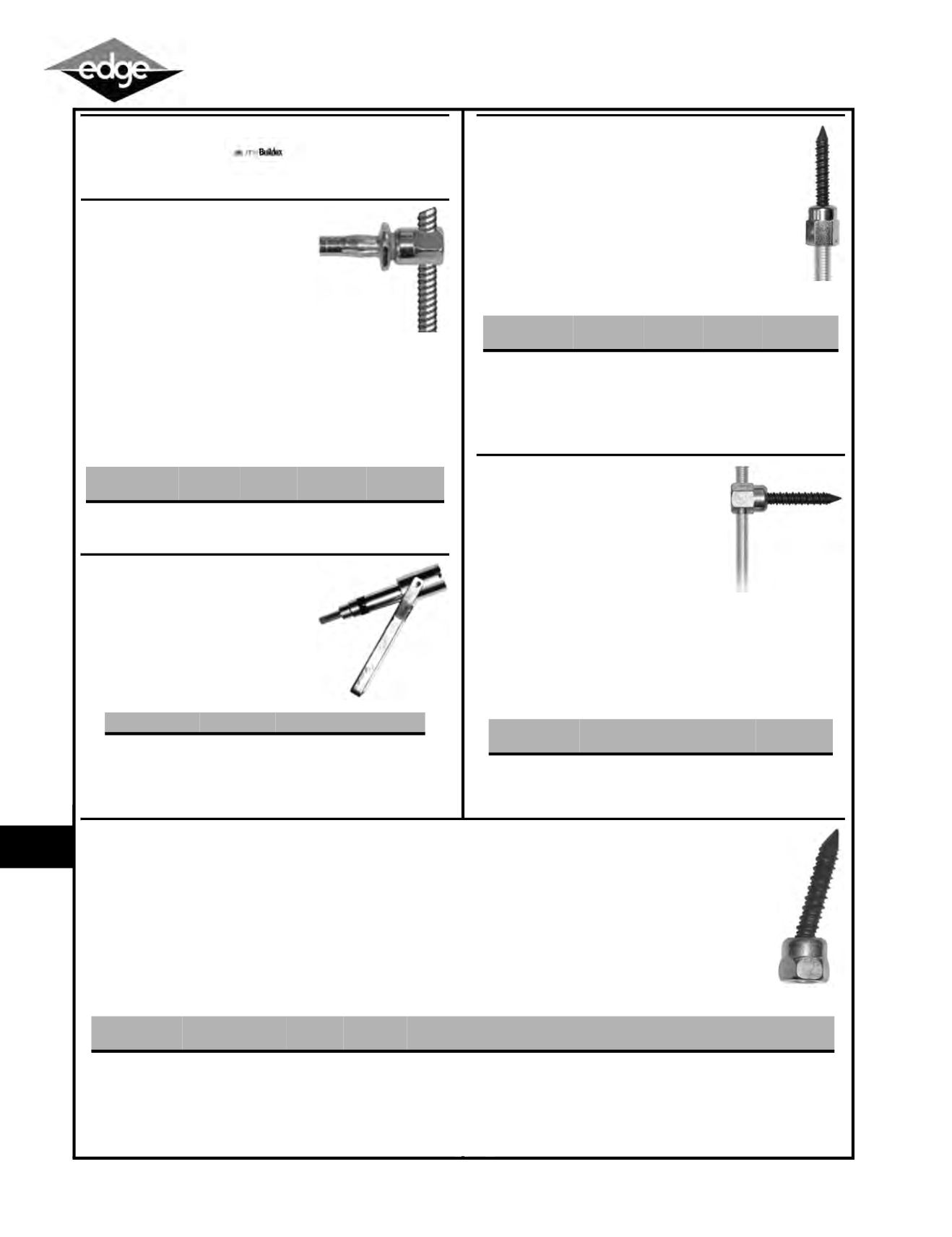

BUILDEX
Sammys® X-Press
Sidewinder™
Horizontal Application
Sammys®
•
The Sidewinder X-Press Sidewinder™
expands to provide horizontal
attachment in: 16 ga - 3/16” steel -
purlin, tubular steel
•
Installs in seconds with Sammys® X-Press It® Tool, saving time &
installation costs
•
Use in applications where access to the back of the installed
fastener is prohibited; metal roof deck, tubular steel, or vapor
barrier fabric
•
Sammys for Seismic:
•
Meets UL Standard 203A for branch/end of line restraint using 3/8”
or 1/2” all thread
BUILDEX
Sammys® X-Press It™
Install Tool
Sammys®
•
The Sammy® X-Press™ expands to
provide direct vertical attachment in:
metal deck (22-16 gauge), z-purlin
(18-16 gauge)
•
Made in the USA
BUILDEX
Sammys® For Concrete
Vertical Application
Sammys®
•
Easy two step process (Drill hole & drive Sammys®
concrete anchor)
•
1/4” pre-drilled pilot hole required
•
Concrete Installation Tool available for a one tool
installation process
•
1/4”-3/8” use #14 Black Nut Driver #8113910, 1/2” use
#14 SW Red Nut Driver # 8114910
•
Made in the US
BUILDEX
Sidewinder® For Concrete
Horizontal Application
Sammys®
•
Easy two step process (Drill hole & drive
Sammys concrete anchor)
•
1/4” pre-drilled pilot hole required
•
Concrete Installation Tool available for a
one tool installation process
•
Use #14 SW Red Nut Driver # 8114910
•
Sammys for Seismic:
•
Part number 8061957 meets UL Standard 203A for branch/end of
line restraint using 3/8” or 1/2” all thread
•
Made in the USA
BUILDEX
Sammys® Swivel Head™ For Concrete
Swivel Application
Sammys®
•
Installs vertically and swivels up to 89° in wood & concrete structures
•
Eliminates distortion of threaded rod
•
1/4” pre-drilled pilot hole required
•
Concrete installation tool available for a one piece installation process
•
Use #14 SH Orange Nut Driver # 8273910
•
Made in the USA
Item #
Model
Rod
Size (in.) Application
Ultimate
Pullout (lbs.)
RABX8293957 SWXP 35
³⁄₈
Purlin
1798
(16 GA.)
Item #
Model
Desc.
RABX8194910 UXPIT Universal X-Press It Tool
RABX8152910 XPDB
²⁵⁄₆₄
” Drill Bit
Item #
Model
Size (in.)
Rod Size
(in.)
Ultimate
Pullout (lbs.)
RABX8058957 CST 200
⁵⁄₁₆
x1
³⁄₄
¹⁄₄
2400
RABX8059957 CST 20
⁵⁄₁₆
x1
³⁄₄
"
³⁄₈
2400
RABX8145925 CST 20-SS
⁵⁄₁₆
x1
³⁄₄
³⁄₈
2400
RABX8060925 CST 2
⁵⁄₁₆
x1
³⁄₄
¹⁄₂
2400
Item #
Model
Size (in.)
Rod
Size (in.)
Ultimate
Pullout (lbs.)
RABX8062957 SWC 200
⁵⁄₁₆
x1
³⁄₄
¹⁄₄
2450
RABX8061957 SWC 20
⁵⁄₁₆
x1
³⁄₄
³⁄₈
2450
Item #
Model
Size (
in.)
Rod Size
(in.)
Ultimate Pullout (lbs.)
RABX8269957 SH-GST/CST 20
⁵⁄₁₆
X 1
³⁄₄
³⁄₈
2537 IN 3000 PSI Concrete 1459 @ 45° Off Vertical IN 3000 PSI Concrete
2852 IN 6000 PSI Concrete 1636 @ 45° Off Vertical IN 6000 PSI Concrete
RABX8303957 SH-GST/CST 2.0
⁵⁄₁₆
X 1
³⁄₄
¹⁄₂
2537 IN 3000 PSI Concrete 1459 @ 45° Off Vertical IN 3000 PSI Concrete
2852 IN 6000 PSI Concrete 1636 @ 45° Off Vertical IN 6000 PSI Concrete
