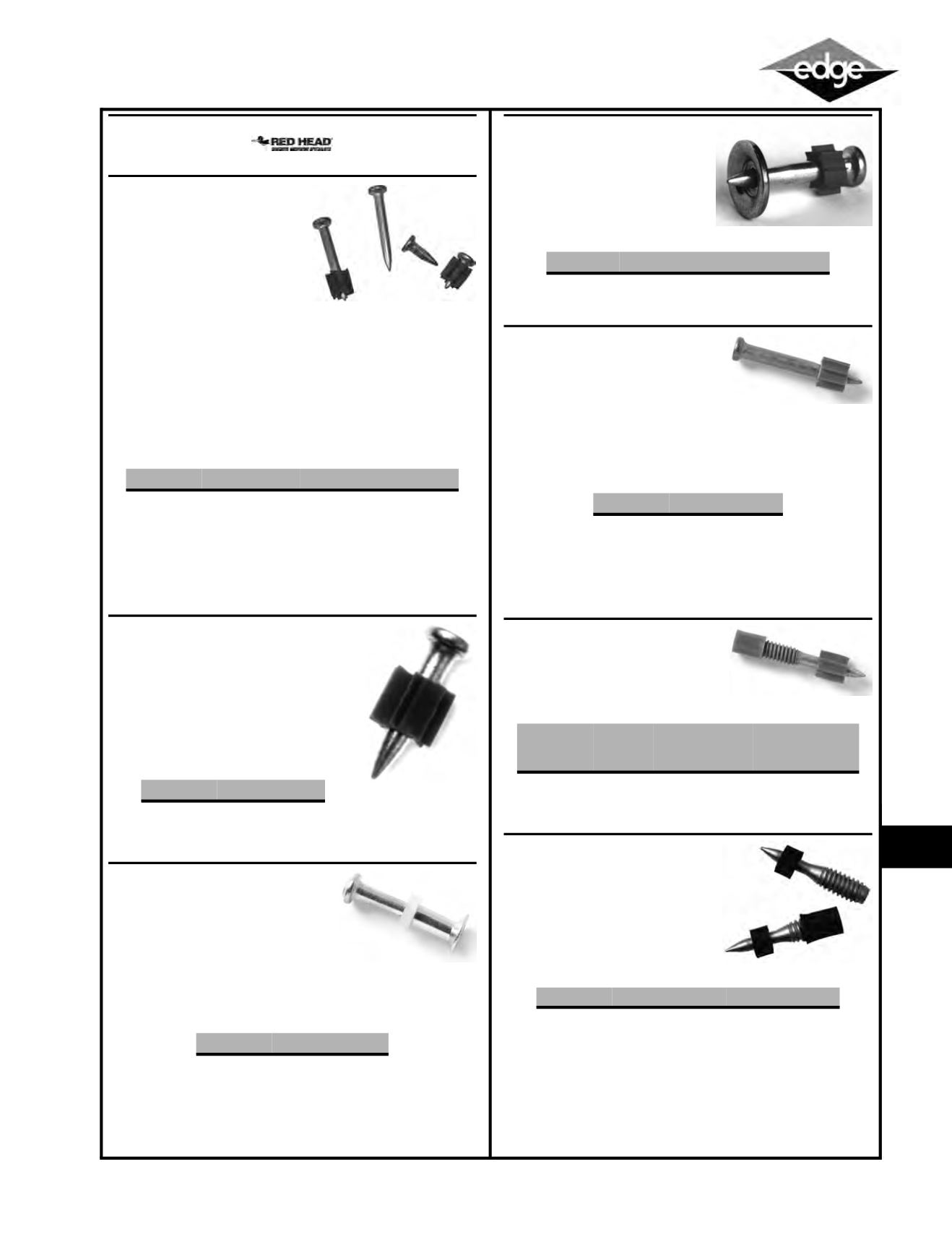

ITW REDHEAD
.157 True Embedment
Pin
The Ramset® .157 True
Embedment Pin is sized to provide
you with True Embedment depths in
track up to 14 gauge. You are
assured to meet the required
embedment depths into concrete or
steel without compensating for the track depth. The pin heads are
also stamped for easy identification after installation.
•
No more increasing pin size to achieve required embedment
•
Less wear and tear on tools and manpower
•
Head stamps make for easy inspection
•
Embedment depth is easily identifiable by headstamps
How They Work:
•
For example, using the 1” .157 TE Pin, the actual embedment
depth into the concrete is 1”; there is no longer a need to use a
1-1/4” pin for 1” embedment
ITW REDHEAD
Hard Concrete and Steel Pins
Standard Powder Actuated
PowerPoint™
•
Used for fastening into harder steel and
concrete, premium steel and hard concrete
pin
•
100 per box
•
Shank diameter = .150
Head diameter = .300
ITW REDHEAD
Top Hat Drive Pins
Powder Actuated
•
Increases bearing surface against
material to be fastened for improved
attachment to inconsistent base
materials
•
100 per box
•
Shank diameter = .145 (SP58TH = .150) Head diameter = 8 mm
(SP58TH = .300)
ITW REDHEAD
Hybrid Pin
Powered Fasteners
•
For general purpose attachments
to concrete
•
500 per box
•
Shank diameter = .125 /.150 Head
diameter = .300
ITW REDHEAD
Hard Concrete
and Steel Pins
Step Shank Powder Fastener
PowerPoint™
•
Used for fastening into harder steel and concrete. Premium steel
and hard concrete pin
•
100 per box
•
Shank diameter = .150 / .180 Head diameter = .300
ITW REDHEAD
1/4”-20 Threaded Studs
For applications that require
removability, where shimming is
required.
•
Shank diameter = .145
ITW REDHEAD
Threaded Stud 1/4-20
Gas Tool Fasteners
•
Used to attach electrical
components to concrete where
removability of the component is
required
•
Plated pin with top hat (500 per box)
•
Shank diameter = .125
Item # Pin Length (in.)
Desc.
RATE12
0.545
¹⁄₂
” Premium Steel Pin
RATE34
¹³⁄₁₆
³⁄₄
” True Embedment Pin
RATE100
1
¹⁄₁₆
1” True Embedment Pin
RATE114
1
⁵⁄₁₆
1
¹⁄₄
” True Embedment Pin
RATE112
1
⁹⁄₁₆
1
¹⁄₂
” True Embedment Pin
Item # Shank Length (in.)
RASP58
⁵⁄₈
RASP34
³⁄₄
Item # Shank Length (in.)
RASP58TH
⁵⁄₈
RA1906
³⁄₄
RA1908
1
Item #
Desc
RAM100BB 1" PowerPoint step shank pin
with
¹⁄₂
" domed washer & flute
Item # Shank Length (in.)
RASP100
1
RASP114
1
¹⁄₄
RASP112
1
¹⁄₂
RASP178
1
⁷⁄₈
Item #
Thread
Length
in. (mm)
Shank Length
in. (mm)
Viper Nosepiece
Required
RA1623WK
³⁄₄
(19.1)
¹⁄₂
Knurled (12.7)
2VP4125
RA1643W
³⁄₄
(19.1)
1 (25.4)
2VP4200
Item # Thread Length (in.) Shank Length (in.)
RA14STUD
¹⁄₂
³⁄₄
