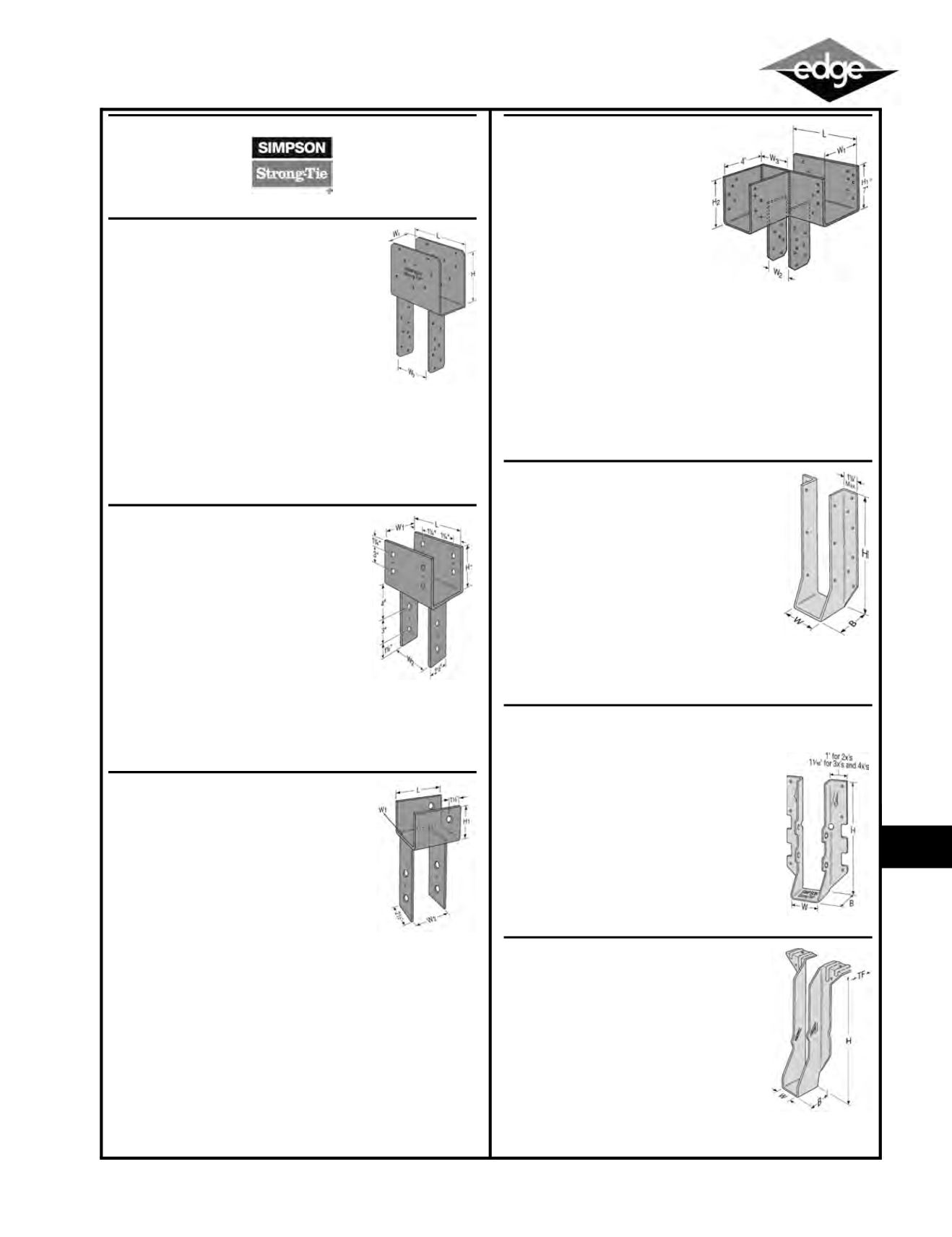

603
SIMPSON STRONG-TIE®
ECCQ Column Caps
•
Column caps provide a high capacity
connection for column- beam combinations.
This design uses Simpson Strong-Tie®
Strong-Drive® SDS screws to provide faster
installation and provides a greater net section
area of the column compared to bolts. The
SDS screws provide for a lower profile
compared to standard through bolts
•
Material: 7 ga.
•
Finish: Simpson Strong-Tie® gray paint,
available in HDG
•
For rough cut lumber sizes, provide dimensions. An optional W2
dimension may be specified with any column size given. (Note that
the W2 dimensions on straps rotated 90° is limited by the W1
dimension)
•
Straps may be rotated 90° where W1ŠW2
SIMPSON STRONG-TIE®
CC Column Caps
•
Column caps provide a high capacity
connection for column-beam combinations
•
Material: CC3-1/4, CC44, CC46, CC48,
CC4.62, CC64, CC66, CC68, CC6-7-1/2
7gauge, all others 3 gauge
•
Finish: Simspon Strong-Tie® gray paint,
may be ordered HDG, CCO, ECCO-no
coating
Options:
•
Straps my be rotated 90° where W1ŠW2
•
For special, custom, or rough cut lumber sizes, provide
dimensions. An optional W2 dimension may be specified with any
column size given (note that the W2 dimension on straps rotated
90° is limited by the W1 dimension)
SIMPSON STRONG-TIE®
ECC Column Caps
The industry standard column cap. Precision
factory gang-punched holes speed installation
on this product line.
Material: 3 gauge.
Finish: Simpson gray paint.
1. Post sides are assumed to lie in the same
vertical plane as the beam sides.
2. Loads may not be increased for short-term
loading.
3. ECC downloads assume a post of W1 x W2.
4. Spliced conditions must be detailed by the specifier to transfer
tension loads between spliced members by means other than the
column cap.
5. Uplift loads do not apply to splice conditions.
Dimension W1: 5 1/4, Dimension W2: 5 1/2, Dimension L CC: 13,
Dimension L ECC: 9 1/2, Dimension H: 8, Fasteners Beam Qty: 4,
Fasteners Beam Dia: 3/4, Fasteners Post Qty: 2, Fasteners Post Dia:
3/4, Allowable Loads Uplift CC (133): 6275, Allowable Loads Uplift
CC (160): 6690, Allowable Loads Down CC (100): 37310, Allowable
Loads Down ECC (100): 15785
SIMPSON STRONG-TIE®
ECCLQ Column Caps
•
The ECCLQ column caps provide
high capacity, multiple beam to
column connection options. The
design uses Simpson
Strong-Tie® Strong-Drive®
screws (SDS) to provide faster
installation and a lower profile
compared to standard through
bolts. Screws are configured to
provide high uplift design values
•
Material: 7 gauge
•
Finish: Simpson Stron-tie® gray paint, also available in HDG
Ordering:
•
The L dimension varies depending on the width of the side stirrup
(W3 or W4). Contact Simpson Strong-Tie for exact dimensions
•
Main beam stirrup height is 7”. Side beam stirrups (H2 or H3) can
vary in height with the minimum height of 7”. Specify the side
stirrup height from the top of the cap
•
Example order: 4x Main beam, 6x Post, 4x Side beam (oriented to
the left) is ordered as an ECCLLQ464SDS
SIMPSON STRONG-TIE®
HU Standard Joist Hangers
•
Most Models have triangle and round holes
•
T achieve maximum loads, fill both round and
triangle holes with common nails
•
These heavy-duty connectors are designed for
schools and other structures requiring
additional strength, longevity and safety factors
•
Finish: Galvanized. Some products available in
ZMAX® coating
•
HU hangers available with the header flanges
turned in for 2-5/16 width and larger, with no
load reduction - order HUC hanger
•
HU only - rough beam sizes available by special order
SIMPSON STRONG-TIE®
LUS Double Shear Joist Hangers
•
All hangers in this series have double shear
nailing. This innovation distributes the load
through two points on each joist nail for greater
strength. It also allows for the use of fewer
nails, faster installation, and the use of standard
nails for all connections (Do not bend or
remove tabs)
•
Finish: Galvanized. Some product available in
stainless steel or ZMAX® coating
•
Z suffix indicates ZMAC® coating, ask about
availability
•
LUS hangers cannot be modified
SIMPSON STRONG-TIE®
LB Top Flange Hangers
Joist Beam and Purlin HAngers
•
Finish: Galvanized, can be ordered in HDG
