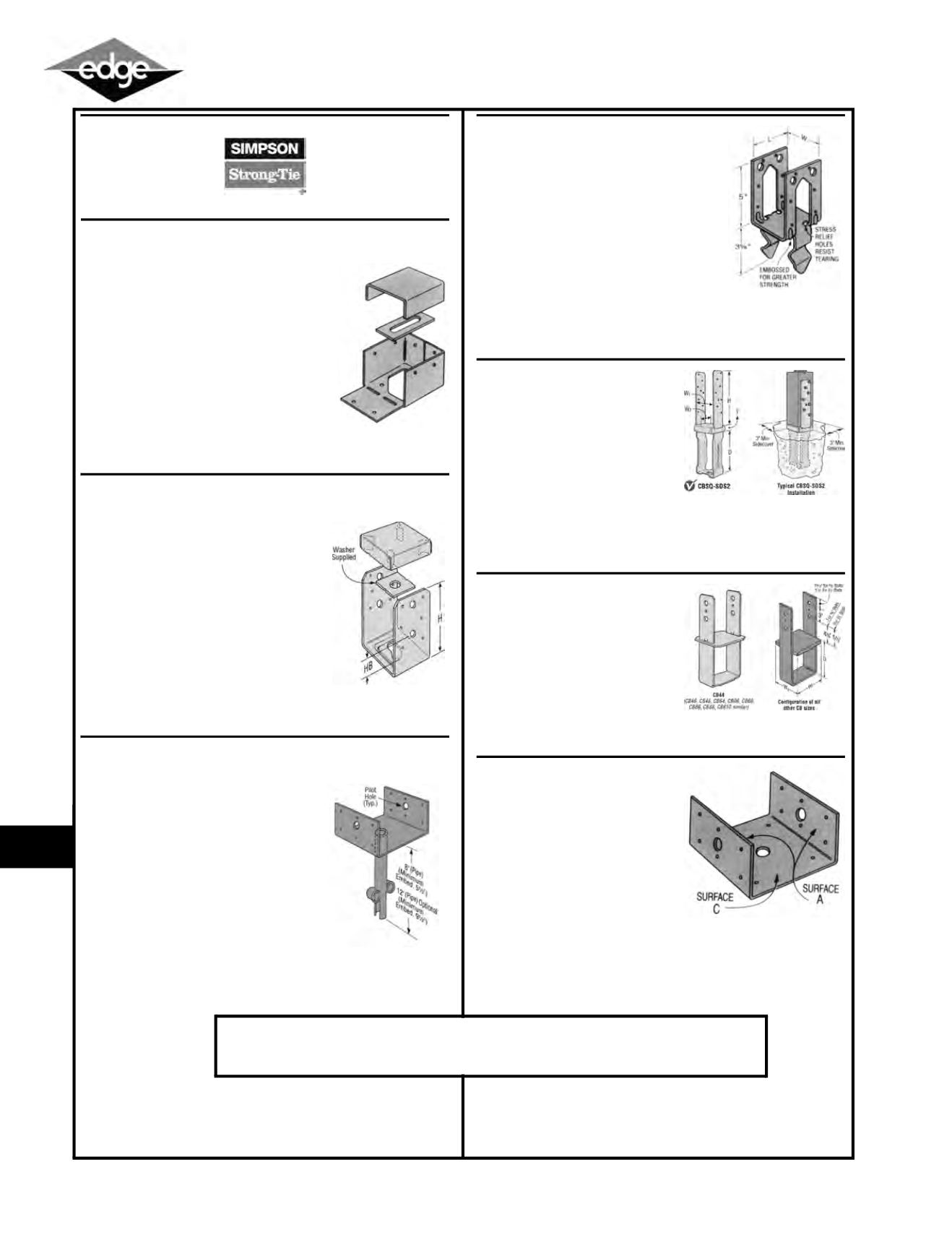

SIMPSON STRONG-TIE®
AB Adjustable and Standoff Post Bases
The AB is a fully-adjustable post base which
offers moisture protection and finished
hardware appearance.
Post bases provide tested capacity. They
feature 1" standoff height above concrete
floors, code-required when supporting
permanent structures that are exposed to the
weather or water splash, or in basements.
They reduce the potential for decay at post
and column ends.
Material: 12 ga plates; 16 ga base cover.
Finish: Galvanized.
1. Loads may not be increased for short-term loading.
SIMPSON STRONG-TIE®
ABU Adjustable and Standoff Post Bases
•
The AB is an adjustable post base which
offers moisture protection and finished
hardware appearance
•
These post bases feature 1” standoff
height above concrete floors,
code-required when supporting
permanent structures that are exposed to
the weather or water splash, or in
basements
•
They reduce the potential for decay at
post and column ends
•
Material: 12 gauge plates-16 gauge base
cover
•
Finish: Galvanized. Some materials available in ZMAX®
SIMPSON STRONG-TIE®
EPB Elevated Post Bases
Material: 12 ga. base plate, 1 1/16" OD x 8"
pipe.
1. Loads may not be increased for
short-term loading.
2. EPB46 have extra nail holes; only eight
must be filled to achieve table loads.
3. Specifier to design concrete for shear
capacity.
Width: 5 1/2
Height: 3
Allowable Loads (133) and (160) F1: 985
Allowable Loads (133) and (160) F2: 1135
Allowable Loads Down (100): 3465
SIMPSON STRONG-TIE®
PB Post Bases
Locking prongs inserts into concrete. The
one-piece design assures maximum
strength.
Material: 12 gauge.
Codes: BOCA, ICBO, SBCCI NER-443; City
of LA RR 25149.
1. Allowable loads have been increased 33%
and 60% for earthquake or wind loading,
with no further increase allowed.
Allowable Loads 12-16d Nails (133 & 160)
F1: 765
Allowable Loads 12-16d Nails (133 & 160) F2: 1325
SIMPSON STRONG-TIE®
CBSQ Column Bases
•
The CBSQ uses Simpson
Strong-Tie® Strong-Drive® SDS
screws, which allow for fast
installation, reduced reveal and
high capacity, provides a greater
net section area of the column
compared to bolts
•
Finish: Galvanized, available in
HDG with HDG screws
•
Ordering: To order with screws, specify CBSQ-SDS2. To order
without screws, specify CBSQ
SIMPSON STRONG-TIE®
CB Column Bases
•
Finish: CB44, CB46, CB48,
CB66, CB68, CB610,
CB86- galvanized, all other
CB - Simpson Strong-Tie® gray
paint or HDG
•
Available in rough size. Other
sizes available for CB specify W1
and W2 dimensions. Consult
Simpson Strong-Tie for bolt sizes and allowable loads
SIMPSON STRONG-TIE®
BC Post Caps
The BC series offers dual purpose
post cap/base for light cap or base
connections.
Material: 18 gauge.
Finish: Galvanized.
1. Allowable loads have been
increased 33% and 60% for
earthquake or wind loading with no
further increase allowed; reduced for
other load durations according to the code.
Dimensions W1: 5 1/2
Fasteners (Each Side) Surface A: 6-16d
