ANVIL
Pipe Supports

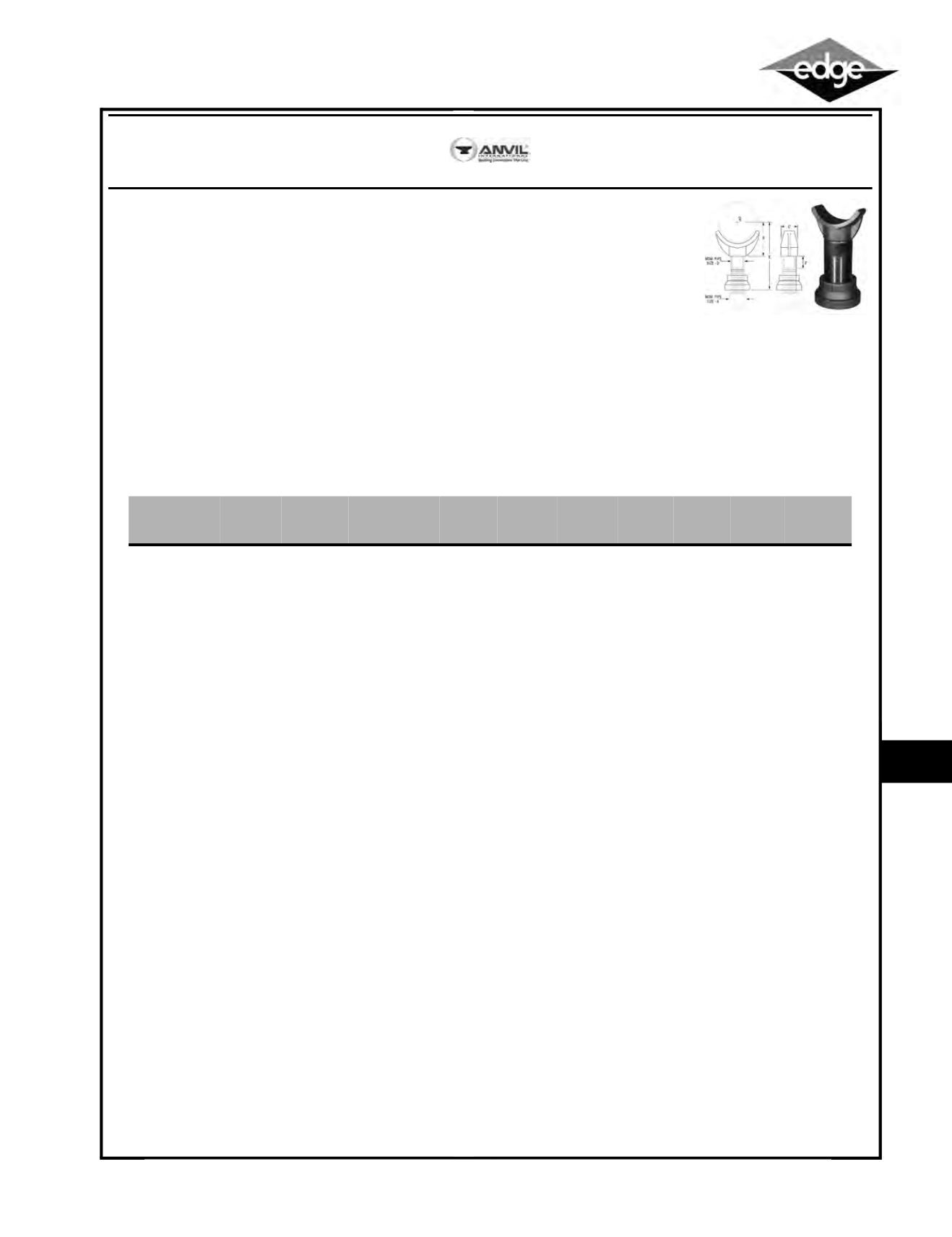

Figure 264 Adjustable Pipe Saddle Support
•
Size Range: 2-1⁄2" through 36"
•
Material: Cast iron saddle, locknut nipple and special cast iron reducer, assembled
•
Finish: Plain or Galvanized
•
Stanchion type support where vertical adjustment of
stationary pipe is required
•
Complies with Federal Specification A-A-1192A (Type 38),
WW-H-171-E (Type 39), ANSI/MSS SP-69 and MSS SP-58 (Type 38)
•
Installation: Adjustment is obtained by turning the locknut nipple. The lower end of the nipple is staked, upsetting
the threads to prevent separation of nipple and coupling during adjustment
•
Features: Vertical adjustment of approximately 4-1⁄2"
•
Saddle supports a broad range of pipe sizes
•
Specify pipe size to be supported, figure number, name and finish
Item #
Pipe Size
(in.)
Weight
Complete
(lbs.)
Weight Saddle
Only (lbs.)
A (in.)
B (in.)
D (in.)
E Min.
(in.)
E Max.
(in.)
Width C
(in.)
Max Load
(lbs.)
AV264-2-1/2
2
¹⁄₂
9.0
4.8
2
¹⁄₂
3
¹⁄₂
1
¹⁄₂
8
13
3
1,800
AV264-3
3
9.2
5.0
2
¹⁄₂
3
³⁄₄
1
¹⁄₂
8
¹⁄₄
13
¹⁄₄
3
1,800
AV264-3-1/2
3
¹⁄₂
9.4
5.2
2
¹⁄₂
4
1
¹⁄₂
8
¹⁄₂
13
¹⁄₂
3
1,800
AV264-4
4
15.0
7.6
3
4
¹⁄₄
2
¹⁄₂
9
¹⁄₄
14
3
⁵⁄₈
3,800
AV264-5
5
16.7
8.3
3
4
⁷⁄₈
2
¹⁄₂
10
14
³⁄₄
3
⁵⁄₈
3,800
AV264-6
6
17.7
10.3
3
5
¹⁄₂
2
¹⁄₂
10
¹⁄₂
15
¹⁄₄
3
⁵⁄₈
3,800
AV264-8
8
20.2
12.8
3
6
⁷⁄₈
2
¹⁄₂
11
³⁄₄
16
¹⁄₂
3
⁵⁄₈
3,800
AV264-10
10
25.2
17.8
3
8
¹⁄₂
2
¹⁄₂
13
¹⁄₂
18
¹⁄₄
3
⁵⁄₈
3,800
AV264-12
12
29.0
21.6
3
9
⁵⁄₁₆
2
¹⁄₂
15
19
³⁄₄
3
⁵⁄₈
3,800
AV264-14
14
40.2
38.0
4
10
¹⁵⁄₁₆
3
16
¹⁄₄
20
³⁄₄
4
⁵⁄₈
5,300
AV264-16
16
53.2
42.0
4
12
³⁄₈
3
17
³⁄₄
22
¹⁄₄
4
⁵⁄₈
5,300
AV264-18
18
70.8
51.0
6
13
⁷⁄₈
3
¹⁄₂
19
¹⁄₂
24
4
⁵⁄₈
6,700
AV268-20
20
104.8
85.0
6
15
³⁄₈
3
¹⁄₂
21
25
¹⁄₂
6
³⁄₄
6,700
AV264-22
22
121.0
98.0
6
15
¹⁄₂
4
21
⁵⁄₁₆
25
¹³⁄₁₆
6
³⁄₄
7.300
AV264-24
24
137.0
110.0
6
17
¹⁵⁄₁₆
4
23
³⁄₄
28
¹⁄₄
6
³⁄₄
7.300
AV264-26
26
154.0
130.0
6
18
¹⁄₂
4
24
⁵⁄₁₆
28
¹³⁄₁₆
6
³⁄₄
7.300
AV264-30
30
170.0
150.0
6
21
⁵⁄₁₆
4
27
31
¹⁄₂
6
³⁄₄
7.300
AV264-32
32
181.0
161.1
6
22
¹⁄₂
4
28
¹⁄₄
32
³⁄₄
8
³⁄₄
7.300
AV264-36
36
249.0
229.0
6
24
¹⁄₂
4
30
¹⁄₄
34
³⁄₄
8
³⁄₄
7.300
