Unistrut, Pipe Hangers & Caddy
Spokane, WA 509-535-9841
Billings, MT 406-248-7196
Yakima, WA 509-248-1144
Gillette, WY 307-682-8522

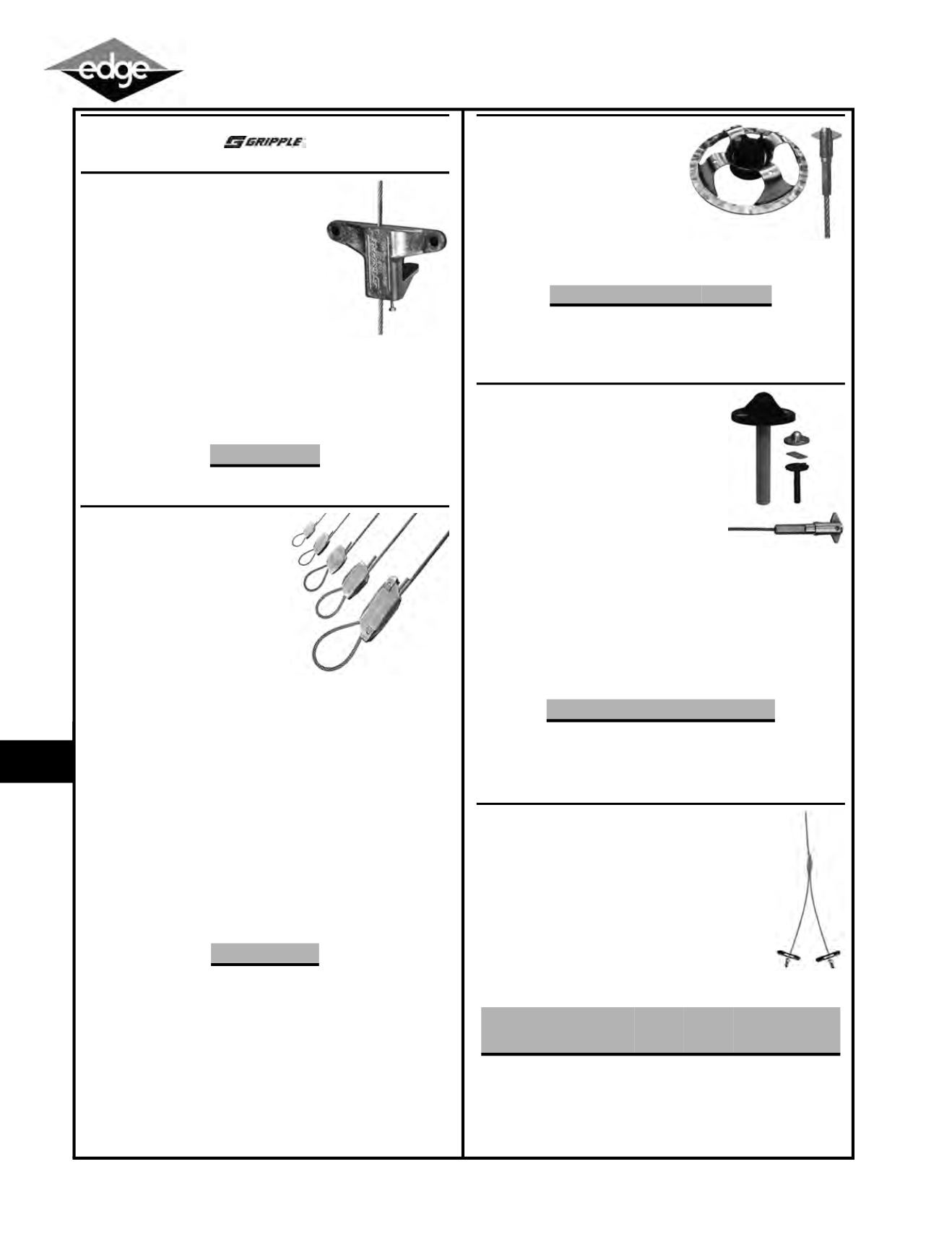

GRIPPLE
Gripple Duct Trapeze
•
Eliminates channel support
•
3 attachment points use self-drilling
screws to equalize the load
•
Pin allows rapid adjustment
•
Supplied as a ready-to-use kit
•
Available with a wide range of end fixings
Please indicate When ordering:
•
CS
(Cable Size): 1 (25 lb. rated), 2 (100
lb. rated), 3 (200 lb. rated), 4 (495 lb. rated)or 5 (715 lb. rated)
•
EF
(End Fixing): LG (loop), TG (toggle), TQG (1/4” toggle), HG
(hook), SQG (1/4” stud), SQ2G (1/4” stud, 2” length), EYQG
(Eyelet), EY90QG (90° 1/4” eyelet), BQG (1/4” barrel), B3/8G (3/8”
barrel) or CHG (cladding hook)
•
L
(Length): 5’, 10’, 15’, 20’ or 30’
GRIPPLE
Standard Gripple
HF Hanger
Used to suspend a variety of
mechanical and electrical services
from different substrates
•
Up to 6 times faster to install than
traditional hanging systems
•
Versatile
•
Simple to use
•
Strong, safe and industry
approved
•
Discreet and lightweight
•
Supplied in ready-to-use kits, comprising a length of wire,
pre-crimped End fixing, Gripple and setting key
•
5:1 safety factor
Please indicate When ordering:
•
CS
(Cable Size): 1 (25 lb. rated), 2 (100 lb. rated), 3 (200 lb. rated),
4 (495 lb. rated)or 5 (715 lb. rated)
•
EF
(End Fixing): LG (loop), TG (toggle), TQG (1/4” toggle),
EG (end stop), HG (hook), MHG (mini hook), SQG (1/4” stud),
SQ2G (1/4” stud, 2” length), S3/8G (3/8” stud), EYQG (Eyelet),
EY453/8G (45° eyelet), EY90QG (90° 1/4” eyelet), EY903/8G
(90° 3/8” eyelet), EY90HG (90° 1/2” eyelet), BQG (1/4” barrel),
B3/8G (3/8” barrel), CHG (cladding hook) or MPG (magnetic pad)
•
L
(Length): 5’, 10’, 15’, 20’ or 30’
GRIPPLE
Gripple Spider Hanger
•
A cast-in-place concrete insert
solution for hanging a variety of
fixtures and services
•
Swivel Toggle hanger inserts into
Gripple Spider from below
•
200 lb. load rating
•
Kit includes Gripple Spider, Swivel
Toggle Hanger (No.3 size), and Gripple fastener
•
Other lengths, load ratings and end fasteners available
GRIPPLE
Metal Deck Insert
Hanger Kit
•
Specifically designed for pre-inserting into
metal decks prior to the concretebeing
poured
•
Rubber head prevents the entry hole from
being blocked with concrete and saves
time required to clean the entry hole
•
Tube allows for easy insertion of the end
fixing from below
•
Swivel toggle designed end fixing enables
the installation of the hanger to be quick, easy and 100% guaran-
teed successful
attachment every time
•
Supplied as a ready-to-use kit which includes the metal deck
insert, cable hanger with swivel toggle end fixing, and Gripple
fastener
•
200 lb. load rating
•
5:1 Safety rating
•
Other lengths, load ratings, and end fasteners available
GRIPPLE
Gripple Y-Fit Hanger
•
Single hanger with double hanging points,
improves stability and center of gravity
•
One leg can be detached to allow access to cables,
etc.
•
Ideal for cable trays or basket, or where access to
services is required
•
Lengths available: 5’, 10’ and 15’
•
Cable sizes available: No.1 (25 lbs.), No.2 (100 lbs.)
and No.3 (200 lbs.)
•
End fixings available: Hook, Toggle and 1/4” toggle
•
Leg lengths available: 6”, 12” and 18”
Item #
GPDT
CS
-
EF
-
L
FT
Item #
GPHF
CS
-
EF
-
L
FT
Item #
Length (ft.)
GPHF3-STG-5FT-SBK
5
GPHF3-STG-10FT-SBK
10
GPHF3-STG-15FT-SBK
15
Item #
Length
GPHF3-STG--5FT-MDI-Y
5
GPHF3-STG--10FT-MDI-Y 10
GPHF3-STG--15FT-MDI-Y 15
Item #
Length
(ft.)
Leg
Length
(in.)
End
Fixing
Cable
Size
GPYHF2-TG-5FT-460MM 5
18 Toggle No. 2
(100 lbs.)
GPYHF2-TG-10FT-460MM 10
18 Toggle No. 2
(100 lbs.)
