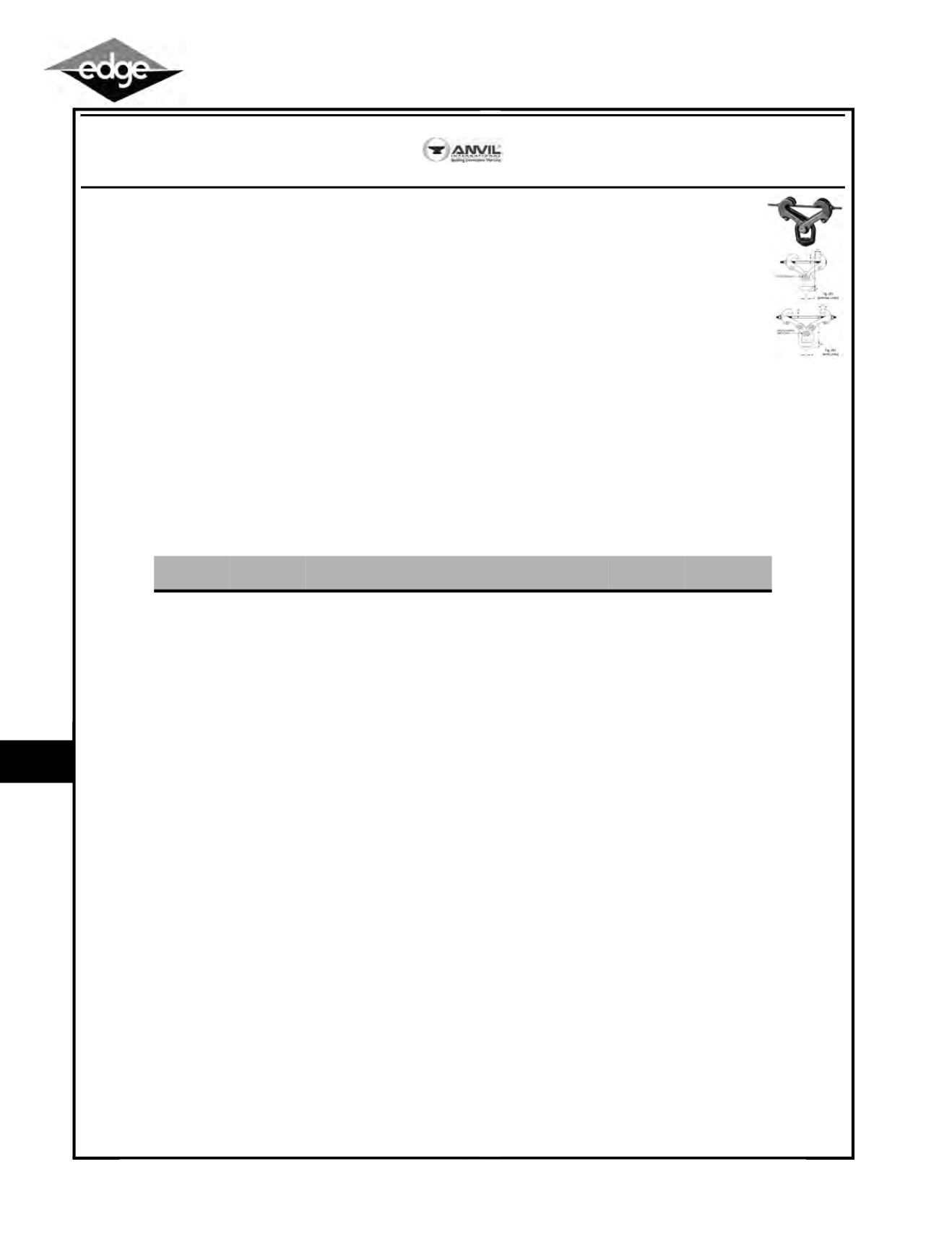

Fig. 292, 292L Universal Forged Steel Beam Clamp with Weldless Eye Nut
•
Material: Forged steel
•
Finish: Plain or Galvanized
•
Service: For suspension of heavy loads from beams with flange widths to 15” and flange thickness to 1.031
•
Approvals: Complies with Federal Specification A-A-1192A (Type 28 without links; Type 29 with links), WW-H-171-E (Type 28
without links; Type 29 with links), ANSI/MSS SP-69 and MSS-SP-58 (Type 28 without links; Type 29 with links)
•
Installation: Fit jaws over edges of lower beam flange and tighten nuts on tie rod to lock clamp in place
Features:
•
Weldless eye nut provides for horizontal pipe movement without binding
•
Weldless eye nut is furnished tapped top any specified rod size up to the maximum rod size
•
Tie rod assures a tight non-slip fit to the beam
Ordering:
•
Specify clamp size, figure number, name, rod size and finish
Note:
•
The application of a load to a structural beam by means of a beam clamp produces a traverse stress, perpendicular to the axis of the beam,
in the flange to which the load is applied
•
Clamp sizes 3,5 and 7 furnished with links
Item #
Clamp Size
No.
Max Rod
Size A (in.)
Max Load
(lbs.)
Weight
(lbs.)
Z Max (in.)
B (in.)
Jaw and Eye
Nut Size (in.)
Right Handed Thread
AV292-1
1
³⁄₄
3,230
3.9
.60
1
¹⁄₄
292-1/1
AV292-2
2
1
5,900
9.2
.60
1
¹¹⁄₁₆
292-2/2
AV292-3
3
1
5,900
13
.60
1
¹¹⁄₁₆
292-2/2
AV292-4
4
1
5,900
21.7
1.031
1
¹⁄₂
292-3/2
AV292-5
5
1
5,900
33.9
1.031
1
¹⁄₂
292-3/2
AV292-6
6
1
¹⁄₂
11,500
23.9
1.031
2
¹⁄₈
292-3/3
AV292-7
7
1
¹⁄₂
11,500
35.8
1.031
2
¹⁄₈
292-3/3
AV292-8
8
2
11,500
36.8
1.031
4
⁹⁄₁₆
292-3/4
Left Handed Thread
AV292L-1
1
³⁄₄
3,230
3.9
.60
1
¹⁄₄
292-1/1
AV292L-2
2
1
5,900
9.2
.60
1
¹¹⁄₁₆
292-2/2
AV292L-3
3
1
5,900
13
.60
1
¹¹⁄₁₆
292-2/2
AV292L-4
4
1
5,900
21.7
1.031
1
¹⁄₂
292-3/2
AV292L-5
5
1
5,900
33.9
1.031
1
¹⁄₂
292-3/2
AV292L-6
6
1
¹⁄₂
11,500
23.9
1.031
2
¹⁄₈
292-3/3
AV292L-7
7
1
¹⁄₂
11,500
35.8
1.031
2
¹⁄₈
292-3/3
AV292L-8
8
2
11,500
36.8
1.031
4
⁹⁄₁₆
292-3/4
