514
ERICO/CADDY

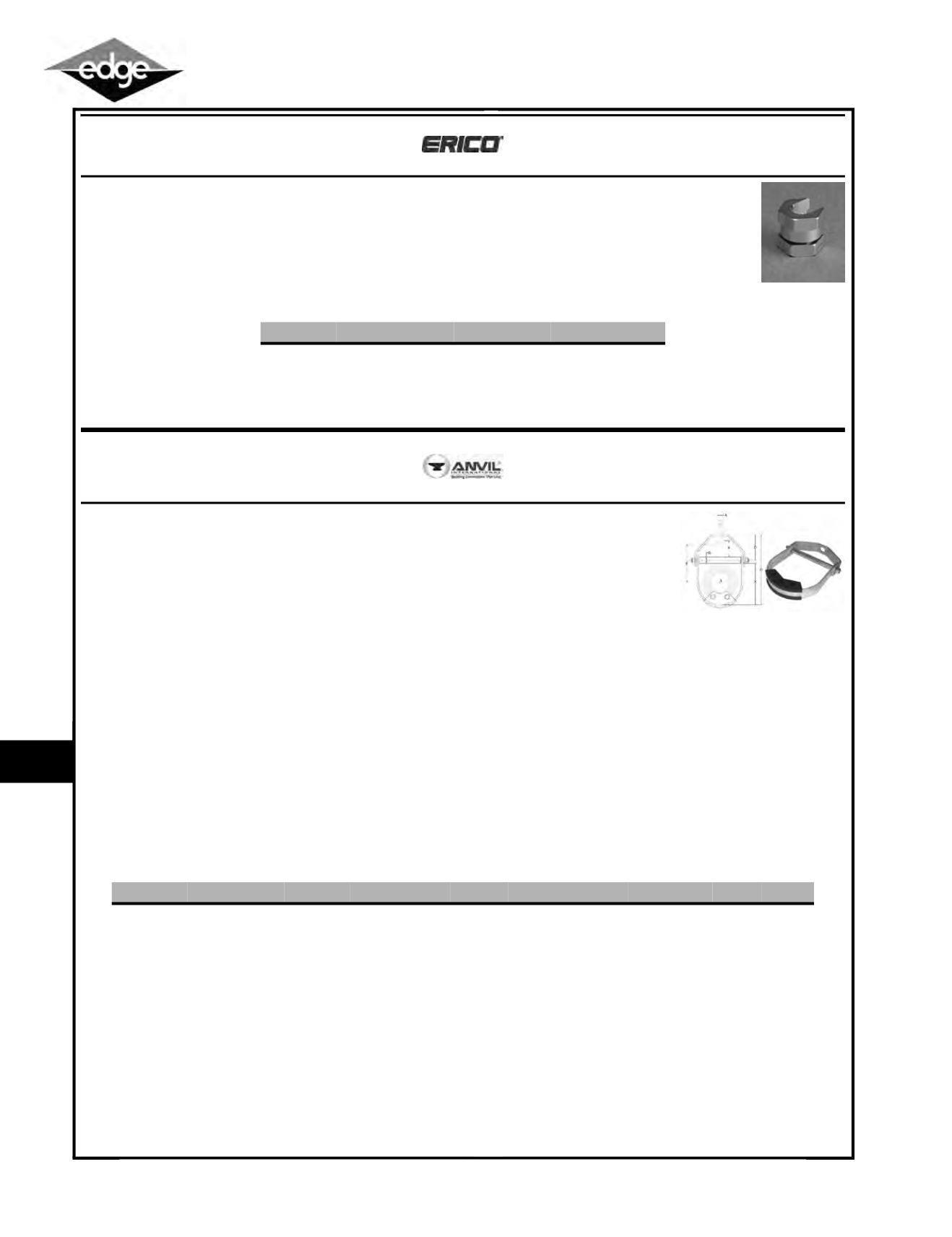

SN Series Nut
The SN Series Nut, an accessory to the CADDY® ROD LOCK system, can be positioned anywhere on threaded rod, reducing
the need for threading compared to standard nuts and washers
•
Reduces the need for threading compared to standard nuts and washers
•
Offers up to 50% installation time savings
•
Ideal for retrofit projects, such as trapeze installations (simply add on as needed)
•
Can be used on threaded rod with slightly damaged threads or minor burrs
•
Electro-galvanized finish
ANVIL
Clevis Hangers
Fig 260ISS Clevis Hanger with Insulation Saddle System
•
Size Range: 2” through 16” clevis hanger with saddle system, 1/2” through 12” pipe diameter
•
Material: Carbon steel with high impact glass reinforced polypropylene saddle and carbon steel spacer
•
Finish: Plain or galvanized clevis hanger
•
Service: Recommended for the suspension of stationary insulated chilled or hot water pipe lines
•
Maximum Temperature: 40° F to 200° F
•
Approvals: The 260ISS has been independently tested by ASTM & UL for flame spread (FSI), smoke development (SD) and drip ratings; the
product has been approved by both agencies and has qualified for an ASTM E84 Class 1 25/60 rating, as well as a UL E94 VO rating which
are the highest rating for this type of product by either agency
•
Installation: Hanger load nut above clevis must be tightened securely to assure proper performance; install the pipe on the saddle, cope or
notch one section of insulation to securely fit around the saddle, notch should be deep enough to extend 1/8” to 1/4” beyond the saddle,
square cut adjoining insulation section and butt the mating end to the notched section; apply mastic to all mating insulation edges, caulk all
seams between insulation and saddle as applicable to chilled or hot water systems to assure positive vapor barriers, finish via standard taping
methods
•
Adjustment: Vertical adjustment without removing the hanger may be made 7/8” through 2-3/8” varying with the size of the clevis
Features:
•
Clevis hanger with high impact saddle eliminates costly hanger adjustments required during the installation of piping insulation
•
Wood blocks and shields are not required for use with this product
•
V-Block design cradles the pipe during and after installation
•
Low thermal conductivity calculated at .77(BTU-In/Sq. Ft-Hr°F)
•
Flammability rating of V-O UL 94
Ordering:
•
Specify size number, insulation thickness, and finish
Item #
Desc.
Rod Size (in.)
Static Load (N1)
CASN25
¹⁄₄
” SN Series Nut
¹⁄₄
500 lbs.
CASN37
³⁄₈
” SN Series Nut
³⁄₈
1350 lbs.
CASN50
¹⁄₂
” SN Series Nut
¹⁄₂
2250 lbs.
Item # Max Load (lbs.)
Weight
Rod Size A (in.)
C (in.) Rod Take Out E (in.) Adjust F (in.) G (in.) X (in.)
AV260-2
550
.73
³⁄₈
4
¹⁄₂
2
⁵⁄₈
⁷⁄₈
¹⁄₄
2
³⁄₈
AV260-3
550
1.32
¹⁄₂
6
¹⁄₂
4
¹⁄₁₆
1
⁷⁄₁₆
³⁄₈
3
⁵⁄₈
AV260-4
550
1.83
⁵⁄₈
7
¹³⁄₁₆
4
¹⁄₂
1
¹⁄₂
³⁄₈
4
¹⁄₂
AV260-5
750
2.44
⁵⁄₈
8
¹⁵⁄₁₆
5
¹⁄₂
1
³⁄₄
³⁄₈
5
¹¹⁄₁₆
AV260-6
750
3.81
³⁄₄
10
¹⁄₄
5
³⁄₄
1
¹⁄₂
¹⁄₂
6
¹¹⁄₁₆
AV260-8
1100
5.60
³⁄₄
12
¹¹⁄₁₆
7
³⁄₁₆
1
³⁄₄
¹⁄₂
8
¹³⁄₁₆
AV260-10
1100
9.73
⁷⁄₈
15
¹⁄₄
8
⁷⁄₁₆
1
⁷⁄₈
⁵⁄₈
10
³⁄₄
AV260-12
1700
13.80
⁷⁄₈
17
¹⁵⁄₁₆
10
¹⁄₈
2
⁹⁄₁₆
⁵⁄₈
12
⁷⁄₁₆
AV260-14
1700
15.60
1
19
⁹⁄₁₆
10
¹¹⁄₁₆
2
¹⁄₂
³⁄₄
14
⁷⁄₁₆
AV260-16
1700
26.81
1
22
12
2
³⁄₈
1
16
⁵⁄₁₆
