ANVIL
Clevis Hangers

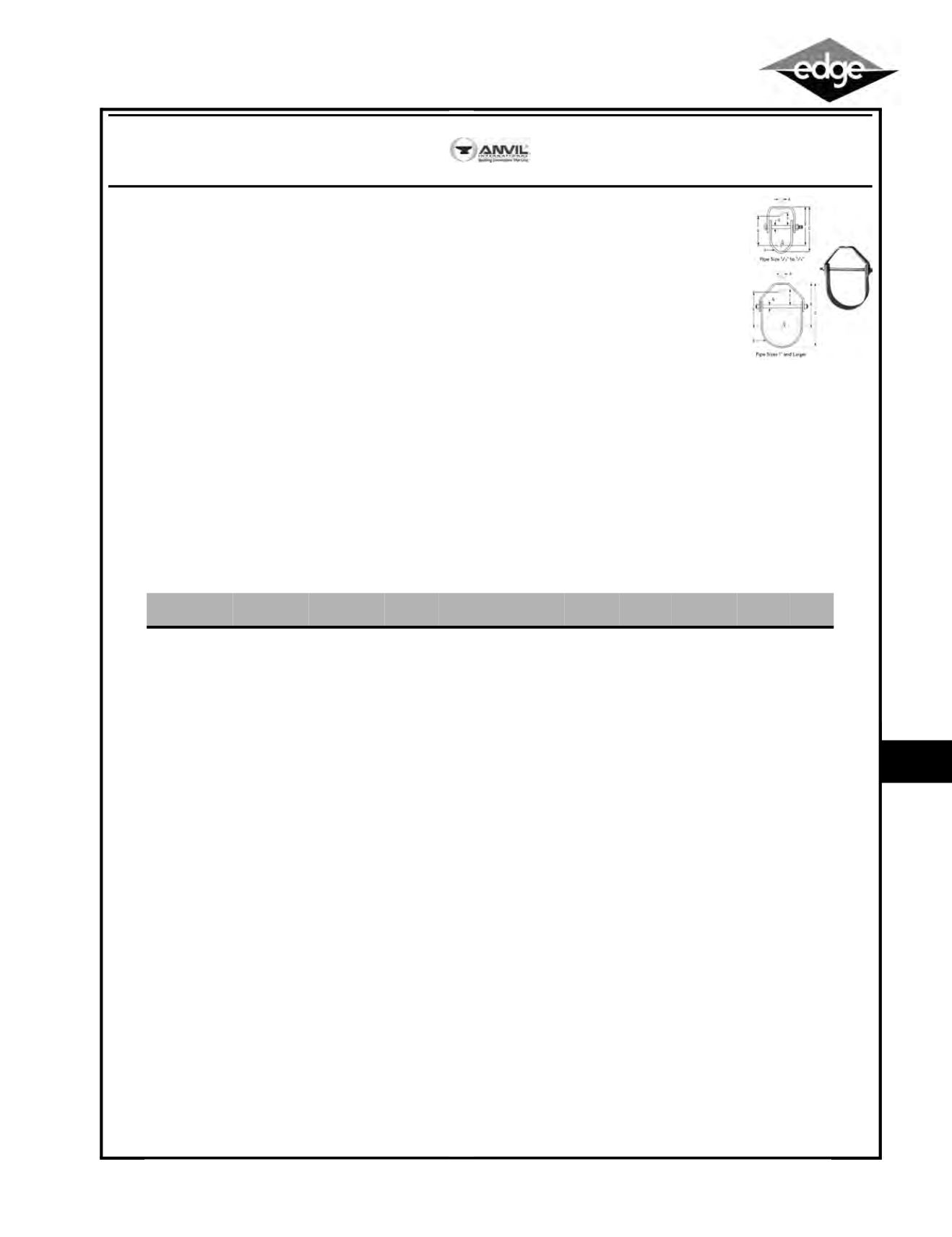

Fig. 260 Adjustable Clevis Hanger
•
Size Range: 1/2”-30”
•
Material: Carbon steel
•
Finish: Plain or Galvanized, also available plastic or epoxy coated
•
Service: Recommended for the suspension of stationary pipe lines
•
Maximum Temperature: Plain 650° F, Galvanized and Epoxy 450° F
•
Approvals: Complies with Federal Specifications A-A-1192A (Type 1), UL, ULC Listed and FM Approved
(Sizes 3/4” through 8”)
•
Installation: Hanger load nut above clevis must be tightened securely to assure proper hanger performance
•
Adjustment: Vertical adjustment without removing pipe may be made from 3/8 through 5-1/8”, varying with the size of
the clevis; tighten upper nut after adjustment
Features:
•
Design has yoke on outside of lower U-strap so yoke cannot slide toward center of bolt, thus bending of bolt is minimized
•
Sizes 5” and up have rod and two nuts instead of bolt and nut, thread length on clevis rod is such that the thread locks the nuts in place, and
threads are not in shear plane
Ordering:
•
Specify pipe size, figure number, name and finish
Notes:
•
Punched forming holes may be present on certain sizes of this clevis hanger; these holes are solely for the purpose of manufacturing, and do
not effect the structural integrity or load carrying capacities of these hangers
•
For insulated line options without shields, see Figures 260ISS and 300 - for insulated line options with shields, see Figures 167 and 168 - for
ductile iron pipe sizes, see Figure 590
Caution:
•
When an oversize clevis is used, a pipe spacer or multispacer should be placed over clevis bolt to ensure that the lower U-strap will not move
in on the bolt
Item #
Pipe Size
(in.)
Max Load
(lbs.)
Span
(ft.)*
Weight
(lbs.)
Rod Size A
(in.)
B (in.)
C (in.)
Rod Take
Out E (in.)
AdjustF
(in.)
G (in.)
AV260-1/2
¹⁄₂
610
7
.34
³⁄₈
2
³⁄₁₆
2
¹¹⁄₁₆
1
¹⁄₂
⁵⁄₈
¹⁄₄
AV260-3/4
³⁄₄
610
7
.34
³⁄₈
2
2
¹¹⁄₁₆
1
⁵⁄₁₆
⁵⁄₈
¹⁄₄
AV260-1
1
730
7
.35
³⁄₈
2
⁵⁄₁₆
3
1
⁵⁄₈
⁵⁄₈
¹⁄₄
AV260-1-1/4
1
¹⁄₄
730
7
.40
³⁄₈
2
³⁄₈
3
¹⁄₄
1
¹¹⁄₁₆
⁵⁄₈
¹⁄₄
AV260-1-1/2
1
¹⁄₂
730
9
.45
³⁄₈
2
¹³⁄₁₆
3
¹³⁄₁₆
2
¹⁄₈
⁷⁄₈
¹⁄₄
AV260-2
2
730
10
.50
³⁄₈
3
⁵⁄₁₆
4
¹⁄₂
2
⁵⁄₈
1
¹⁄₈
¹⁄₄
AV260-2-1/2
2
¹⁄₂
1,350
11
.65
¹⁄₂
4
¹⁄₁₆
5
¹⁄₂
3
³⁄₁₆
1
⁵⁄₁₆
³⁄₈
AV260-3
3
1,350
12
.85
¹⁄₂
4
³⁄₄
6
¹⁄₂
4
¹⁄₁₆
1
⁵⁄₈
³⁄₈
AV260-3-1/2
3
¹⁄₂
1,350
13
1.10
¹⁄₂
5
¹⁄₁₆
7
¹⁄₁₆
4
³⁄₁₆
1
¹³⁄₁₆
³⁄₈
AV260-4
4
1,430
14
1.51
⁵⁄₈
5
⁹⁄₁₆
7
¹³⁄₁₆
4
¹⁄₂
1
¹¹⁄₁₆
³⁄₈
AV260-5
5
1,430
16
1.70
⁵⁄₈
6
⁹⁄₁₆
8
¹⁵⁄₁₆
5
¹⁄₂
1
¹⁵⁄₁₆
³⁄₈
AV260-6
6
1,940
17
3.10
³⁄₄
6
¹⁵⁄₁₆
10
¹⁄₄
5
³⁄₄
1
¹¹⁄₁₆
¹⁄₂
A260-8
8
2,000
19
4.75
³⁄₄
8
³⁄₈
12
¹¹⁄₁₆
7
³⁄₁₆
2
¹⁄₂
AV260-10
10
3,600
22
8.60
⁷⁄₈
9
⁷⁄₈
15
¹⁄₄
8
⁷⁄₁₆
2
¹⁄₈
⁵⁄₈
AV260-12
12
3,800
23
11.20
⁷⁄₈
11
⁹⁄₁₆
17
¹⁵⁄₁₆
10
¹⁄₈
2
¹³⁄₁₆
⁵⁄₈
AV260-14
14
4,200
25 12.50
1
12
⁹⁄₁₆
19
⁹⁄₁₆
10
¹¹⁄₁₆
2
¹¹⁄₁₆
³⁄₄
AV260-16
16
4,600
27 19.85
1
14
22
12
2
³⁄₄
1
AV260-18
18
4,800
28 22.25
1
15
¹⁵⁄₁₆
24
¹⁵⁄₁₆
13
¹⁵⁄₁₆
3
¹³⁄₁₆
1
AV260-20
20
4,800
30 40.33
1
¹⁄₄
17
⁹⁄₁₆
27
⁹⁄₁₆
15
³⁄₁₆
3
⁷⁄₈
1
¹⁄₄
AV260-24
24
4,800
32 49.83
1
¹⁄₄
19
¹³⁄₁₆
31
¹³⁄₁₆
17
⁵⁄₁₆
3
⁷⁄₈
1
¹⁄₄
AV260-30
30
6,000
33 70.18
1
¹⁄₄
24
³⁄₁₆
39
³⁄₁₆
21
⁹⁄₁₆
5
¹⁄₈
1
¹⁄₄
Span represents the maximum recommended distance between hangers on a continuous and straight run of horizontal
standard weight steel pipe filled with water. In all cases, verify that chosen location of hangers does not subject hangers
to a load greater than the maximum recommended load shown above
