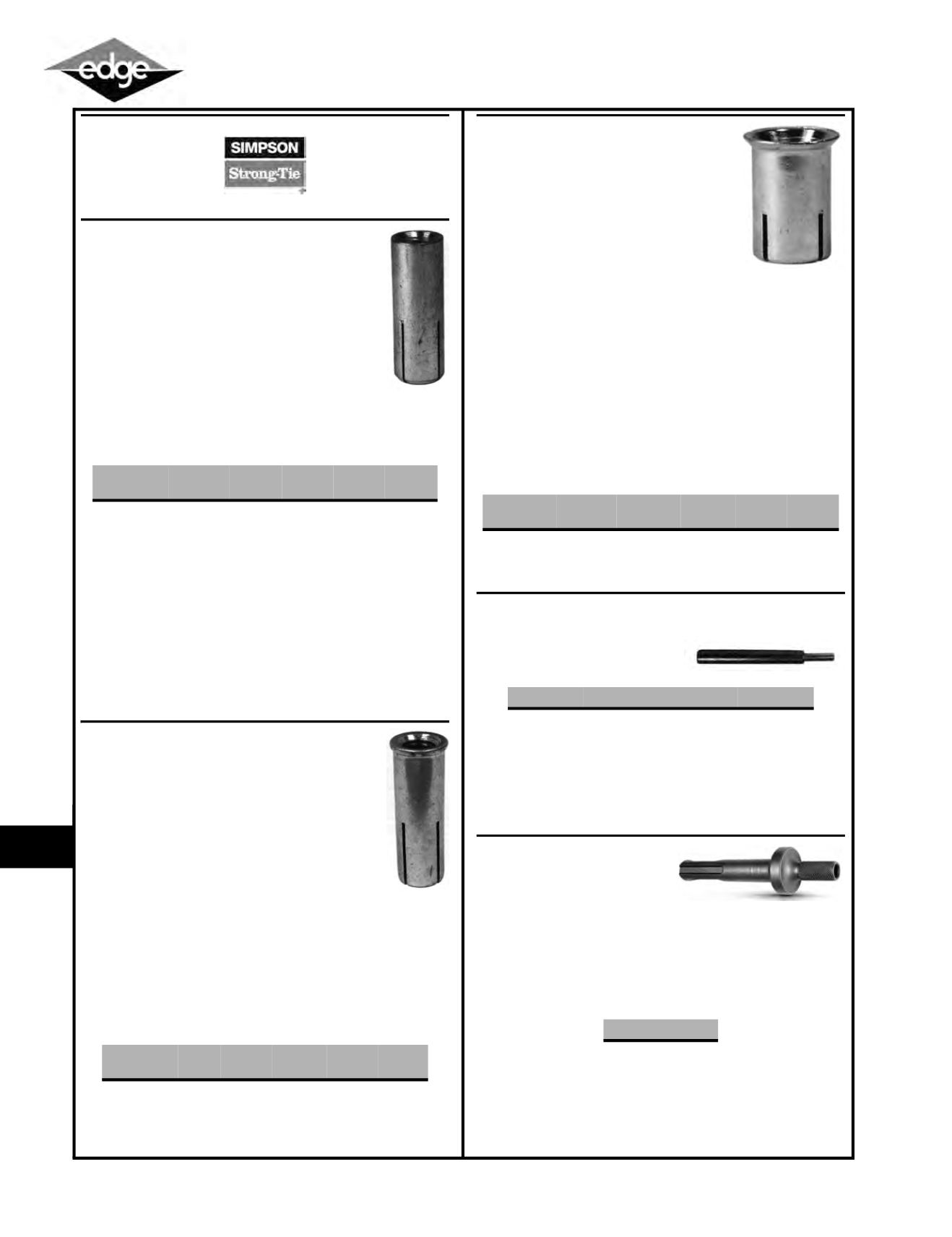

Anchors & Fastener Systems
Spokane, WA 509-535-9841
Billings, MT 406-248-7196
Yakima, WA 509-248-1144
Gillette, WY 307-682-8522
SIMPSON STRONG-TIE®
Internally Threaded
Expansion Shell Anchor
DROP-IN
•
Drop-in anchors are internally-threaded,
deformation-controlled expansion anchors with a
pre-assembled expander plug, suitable for flush
mount applications in solid base materials
•
The anchor is set by driving the expansion plug
towards the bottom of the anchor using the setting
tool
MATERIAL: Carbon and stainless steel
FINISH: Carbon steel: Zinc plated
Code Approvals: Drop-In: City of L.A. RR24682; Factory Mutual
3017082; Underwriters Laboratories File Ex3605. Meets
requirements of Federal Specifications A-A-55614, Type I
SIMPSON STRONG-TIE®
Internally Threaded
Expansion Shell Anchor
Lipped DROP-IN Anchor
•
Drop-in anchors are internally-threaded,
deformation-controlled expansion anchors with a
pre-assembled expander plug, suitable for flush
mount applications in solid base materials
•
The anchor is set by driving the expansion plug
towards the bottom of the anchor using the setting
tool
•
The Lipped Drop-In (DIAL) features a lip at the top of the anchor
body that keeps the top of the anchor flush with the concrete. This
eliminates the need for precisely drilled hole depths and allows for
easier flush installation, consistent embedment and uniform rod
lengths
MATERIAL: Carbon steel
FINISH: Carbon steel: Zinc plated
Code Approvals: Drop-In: City of L.A. RR24682; Factory Mutual
3017082; Underwriters Laboratories File Ex3605. Meets
requirements of Federal Specifications A-A-55614, Type I
SIMPSON STRONG-TIE®
Internally Threaded
Expansion Shell Anchor
Short DROP-IN Anchor
•
Ask about using a stop drill bit
•
Drop-in anchors are internally-threaded,
deformation controlled expansion anchors
with a pre-assembled expander plug, suitable
for flush mount applications in solid base
materials
•
The anchor is set by driving the expansion plug towards the
bottom of the anchor using the setting tool
•
The 3/8" Short Drop-In Anchor (DIA37S) is for use in solid and
hollow concrete. The short length permits shallow embedment,
thus avoiding drilling into rebar or prestressing strands. The wide
surface flange allows the DIA37S to be installed in deep or
bottomless holes
MATERIAL: Carbon steel
FINISH: Carbon steel: Zinc plated
Code Approvals: Short Drop-In: Factory Mutual 3017082 &
Underwriters Laboratories File Ex3605
•
A dedicated setting tool is included with each box.
SIMPSON STRONG-TIE®
Drop-In Setting Tool
For use with carbon and stainless
steel Drop-In anchors.
SIMPSON STRONG-TIE®
Heli-Tie™ Fastener
Installation tool
Heli-Tie™ Fastener Installation Tool
- Model HELITOOL37A Required for correct installation of Heli-Tie
wall ties. Speeds up installation and automatically countersinks the
tie into the facade material. The updated one-piece design with no
moving parts drastically reduces the cost of the tool, improves
longevity and prevents the Heli-Tie fasteners from jamming.
Installation tools sold separately.
Item # Rod Size
Drill Bit
Dia.
Bolt
Thread
Body
Length
Qty per
Box
Carbon Steel
SNDIA25
¹⁄₄
”
³⁄₈
”
20
1”
100
SNDIA37
³⁄₈
”
¹⁄₂
”
16
1
¹⁄₂
”
50
SNDIA50
¹⁄₂
”
⁵⁄₈
”
13
2”
50
SNDIA62
⁵⁄₈
”
⁷⁄₈
”
11
2
¹⁄₂
”
25
SNDIA75
³⁄₄
”
1”
10
3
¹⁄₈
”
20
303 Stainless Steel
SNDIA37SS
³⁄₈
”
¹⁄₂
”
16
1
¹⁄₂
”
50
SNDIA50SS
¹⁄₂
”
⁵⁄₈
”
13
2
50
Item #
Rod
Size
Drill Bit
Dia.
Bolt
Thread
Body
Length
Qty per
Box
SNDIAL37
³⁄₈
”
¹⁄₂
”
16
1
¹⁄₁₆
”
50
SNDIAL50
¹⁄₂
”
⁵⁄₈
”
13
2”
50
Item # Rod Size
Drill Bit
Dia.
Bolt
Thread
Body
Length
Qty per
Box
SNDIA37S
³⁄₈
”
¹⁄₂
”
16
³⁄₄
”
100
SNDIA50S
¹⁄₂
”
⁵⁄₈
”
13
50
Item #
For Use With
Box Qty.
SNDIAST25
DIA25, DIAL25
10
SNDIAST37
DIA37, DIAL37
10
SNDIAST50 DIA50, DIA50C, DIAL50
10
SNDIAST62
DIA62
5
SNDIAST75
DIA75, DIA75C
5
Item #
SNHELITOOL37A
