Anchors & Fastener Systems
Spokane, WA 509-535-9841
Billings, MT 406-248-7196
Yakima, WA 509-248-1144
Gillette, WY 307-682-8522

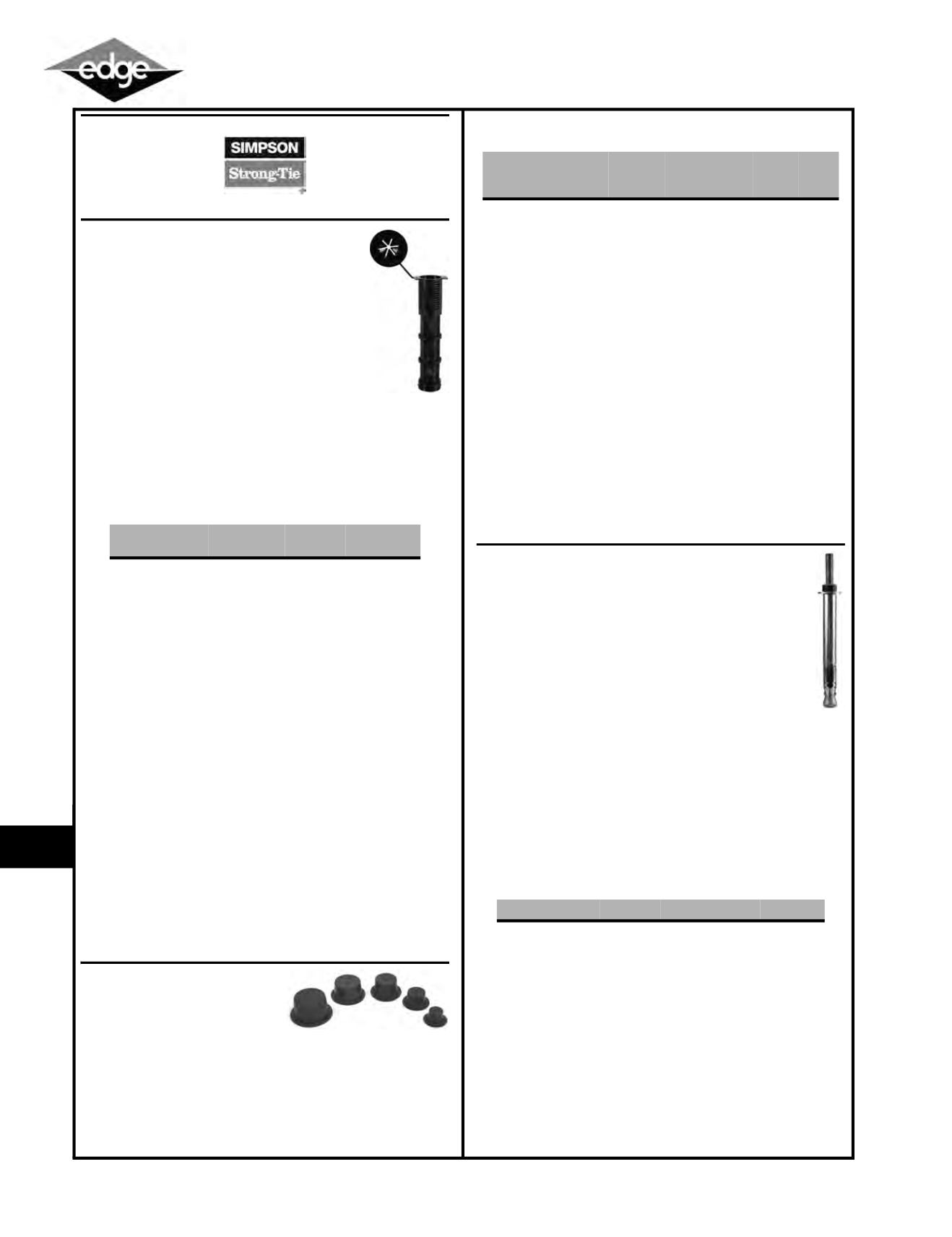

SIMPSON STRONG-TIE®
Opti-Mesh®Adhesive-Anchoring
Screen Tubes
•
Screen tubes are tested and written into many
code reports-make sure to use as reccomended
•
Screen tubes are vital to the performance of
adhesive
anchors in base materials that are hollow, or
contain voids,
such as hollow block and brick. The Simpson
Strong-Tie®
•
Opti-Mesh® screen tube provides the
economical advantage of a plastic screen tube while providing
performance comparable to steel screen tubes and better than
competitive plastic screen tubes
Caution: Screen tubes are designed for a specific adhesive type.
Epoxy-Tie® screen tubes must be used with SET or ET formulations
and Acrylic-Tie® screen tubes must be used with AT Acrylic-Tie®
adhesive. Do not use SET1.7KT or SET1.7KTA with screen tubes
SIMPSON STRONG-TIE®
Adhesive Retaining
Caps
Adhesive retaining caps make
overhead and horizontal installation easier by preventing the
adhesive from running out of the hole. They also center the rod in the
hole, making them ideal for applications where precise anchor
placement is required. It may be necessary to provide support for the
insert during cure time. Adhesive retaining caps are not designed to
support the weight of the insert in overhead installations.
SIMPSON STRONG-TIE®
Self-Undercutting Anchor for Cracked
or Un-cracked Concrete
Torq-Cut™
•
The Torq-Cut™ self-undercutting anchor is a heavy-duty,
high-capacity anchor designed and tested for use in
CRACKED AND UNCRACKED concrete under static and
seismic loading conditions. It is designed to meet the
stringent requirements of the 2006 and 2009 IBC for
post-installed anchors
•
The built-in ring with hardened cutters expands with
installation torque forming undercut grooves in the
concrete. This interlocking connection between the anchor and
the concrete provides superior load carrying capacity
•
FINISH: Zinc plated
•
Code Approvals: ICC_ES ESR2705, Florida FL15731
•
TEST CRITERIA: The Torq-Cut anchor has been tested in
accordance with ICC-ES's Acceptance Criteria for Mechanical
Anchors in Concrete Elements (AC193) and ACI 355.2 for the
following:
•
Static tension and shear loading in cracked and uncracked
concrete
•
Seismic and wind loading in cracked and uncracked concrete
•
Performance in cracked concrete
Item #
For Rod Dia.
(in.)
HoleSize
(in.)
Screen
Length (in.)
Epoxy (SET & ET-HP) Screen Tubes
SNETS506P
¹⁄₂
³⁄₄
6
SNETS5010P
¹⁄₂
³⁄₄
10
SNETS6210P
⁵⁄₈
⁷⁄₈
10
SNETS626P
⁵⁄₈
⁷⁄₈
6
SNETS6213P
⁵⁄₈
⁷⁄₈
13
SNETS758P
³⁄₄
1
8
SNETS7513P
³⁄₄
1
13
SNETS7517P
³⁄₄
1
17
Acrylic Screen Tubes
SNATS376P
³⁄₈
⁹⁄₁₆
6
SNATS503P
¹⁄₂
³⁄₄
3
¹⁄₂
SNATS506P
¹⁄₂
³⁄₄
6
SNATS5010P
¹⁄₂
³⁄₄
10
SNATS623P
⁵⁄₈
⁷⁄₈
3
¹⁄₂
SNATS626P
⁵⁄₈
⁷⁄₈
6
SNATS6210P
⁵⁄₈
⁷⁄₈
10
SNATS758P
³⁄₄
1
8
SNATS7513P
³⁄₄
1
13
Item #
For Rod
Dia. (in.)
Required Hole
Diameter (in.)
Cap
Depth
(in.)
Pkg.
Qty.
Adhesive Retaining Caps For Epoxy Tie
SNARC37-RP25
³⁄₈
¹⁄₂
⁷⁄₁₆
25
SNARC50-RP25
¹⁄₂
⁵⁄₈
¹⁄₂
25
SNARC62-RP25
⁵⁄₈
³⁄₄
⁹⁄₁₆
25
SNARC75-RP25
³⁄₄
⁷⁄₈
⁹⁄₁₆
25
SNARC87-RP25
⁷⁄₈
1
¹¹⁄₁₆
25
SNARC100-RP25
1
1
¹⁄₈
¹¹⁄₁₆
25
SNARC125-RP25
1
¹⁄₄
1
³⁄₈
⁷⁄₈
25
Adhesive Retaining Caps For Acrylic-Tie
SNARC37A-RP25
³⁄₈
⁷⁄₁₆
25
SNARC50A-RP25
¹⁄₂
⁹⁄₁₆
¹⁄₂
25
SNARC62A-RP25
⁵⁄₈
¹¹⁄₁₆
⁹⁄₁₆
25
SNARC75A-RP25
³⁄₄
¹³⁄₁₆
⁹⁄₁₆
25
SNARC87A-RP25
⁷⁄₈
1
¹¹⁄₁₆
25
SNARC100A-RP25
1
1
¹⁄₁₆
¹¹⁄₁₆
25
SNARC125A-RP25 1
¹⁄₄
1
³⁄₈
⁷⁄₈
25
Item #
Size (in.) Drill Bit Dia. (in.) Box Qty.
SNTCAP370600
³⁄₈
X6
⁵⁄₈
10
SNTCAP500834
¹⁄₂
X8
³⁄₄
⁷⁄₈
5
SNTCAP500912
¹⁄₂
X9
¹⁄₂
⁷⁄₈
5
SNTCAP621112
⁵⁄₈
X11
¹⁄₂
1
4
SNTCAP621212
⁵⁄₈
X12
¹⁄₂
1
4
SNTCAP751458
³⁄₄
X14
⁵⁄₈
1
¹⁄₄
4
SNTCAP751658
³⁄₄
X16
⁵⁄₈
1
¹⁄₄
4
