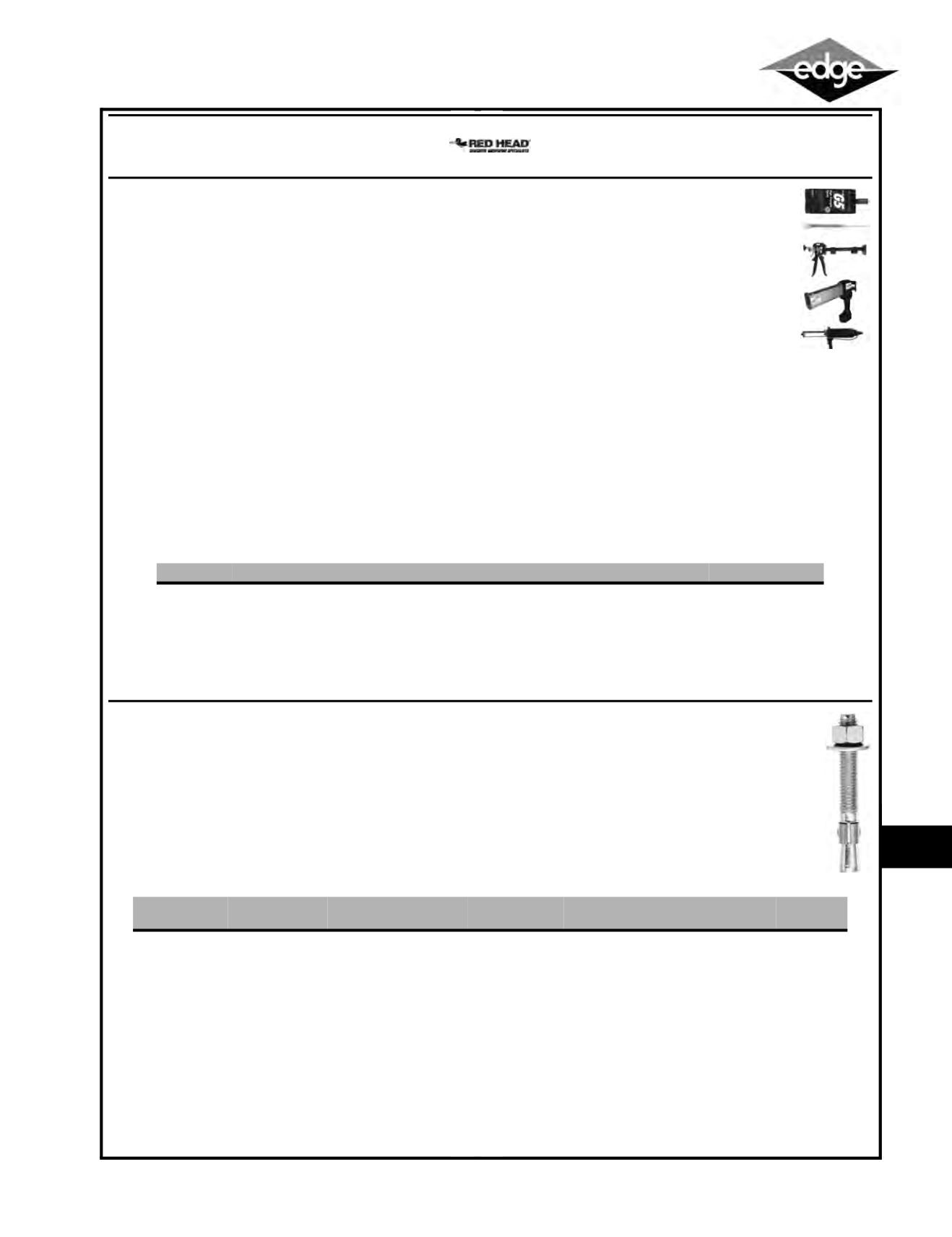

ITW REDHEAD
G5 Epoxy Adhesives
Completely Mixed
Epcon
The epoxy resin and hardener are completely mixed as they are dispensed from the dual cartridge through a static mixing
nozzle, directly into the anchor hole. G5 can be used with threaded rod or rebar.
Advantages
•
Nozzles last longer-saves money
•
Gives more time to install anchors
•
Easier to install anchors in hot weather
•
Easier installation of larger diameter anchors and deeper embedments
•
Odorless
Features
Anchorage to solid concrete
Rebar or threaded rod (carbon or stainless steel) supplied by
contractor
G5 adhesives completely fills area between rod and hole creating a stress-free, high load anchorage
Pre-drilled hole in concrete
•
Now for cracked, uncracked and seismic conditions
Description: G5 adhesive, 22 fluid oz. cartridge, Box/Bag Qty: 1,
Carton Qty: 12
•
Meets ASTM C881-90, Type II, Grade 3, Classes A, B, and C with the exception of band strength
•
Compressive strength, ASTM D695: 9170 psi minimum
•
Shelf life: 2 years minimum
•
Water solubility: None
ITW REDHEAD
Wedge Anchors
Type 316 Stainless Steel
Trubolt®
Typical applications-Pumps, diffusers, gates, weir plates, etc.
Environment-Industrial (moderate to heavy atmospheric pollution)
Level of corrosion-Medium to high
Typical applications-Tunnels, dams, tiles, lighting fixtures, etc.
Environment-Marine (heavy atmospheric pollution)
Level of corrosion-High
Contains more nickel and chromium than Type 304, and 2%-3% molybdenum, which gives it better corrosion resistance. It is
especially more effective in chloride environments that tend to cause pitting.
Item #
Description
Box/Bag Qty
RAG5-22
G5 Adhesive, 22 Fl. Oz. Cartridge
6
RAE55
Mixing Nozzle for G5-22 Cartridge (
³⁄₈
-
⁵⁄₈
in. Outside Diameter)14 in. long
24
RAE102 Hand Dispenser for G5-22 Cartridges-Dispenses both 18 oz. and 22 oz. Cartridges
1
RAE202
Pneumatic Tool for G5-22 Cartridges
1
RARH7020
Cordless Dispensing tool for the G5-22 Cartridge
1
Item #
Thread Length
in. (mm)
Anchor Dia. & Drill Bit
Size (Threads) Per (in.)
Overall Length
in. (mm)
Max. Thickness of Material to be
Fastened in. (mm)
Qty/Wt. per
Box (lbs.)
RASWW-1422 1
¹⁄₄
(31.8)
¹⁄₄
- 20
2
¹⁄₄
(57.2)
⁷⁄₈
(22.2)
100/3.7
RASWW-1432
2
¹⁄₄
(57.2)
¹⁄₄
- 20
3
¹⁄₄
(82.6)
1
¹⁄₈
(28.6)
100/4.8
RASWW-3826 1
⁵⁄₈
(41.3)
³⁄₈
- 16
2
³⁄₄
(69.9)
⁷⁄₈
(22.2)
50/4.8
RASWW-3830 1
⁷⁄₈
(47.6)
³⁄₈
- 16
3 (76.2)
1
¹⁄₈
(28.6)
50/5.2
RASWW-3836 2
⁵⁄₈
(66.7)
³⁄₈
- 16
3
³⁄₄
(95.5)
1
⁷⁄₈
(47.6)
50/6.0
RASWW-1226 1
¹⁄₄
(31.8)
¹⁄₂
- 13
2
³⁄₄
(69.9)
¹⁄₈
(3.2)
25/4.7
RASWW-1236
2
¹⁄₄
(57.2)
¹⁄₂
- 13
3
³⁄₄
(95.3)
1 (25.4)
25/5.8
RASWW-1242 2
³⁄₄
(69.9)
¹⁄₂
- 13
4
¹⁄₄
(108.0)
1
¹⁄₂
(38.1)
25/6.5
RASWW-1254
3 (76.2)
¹⁄₂
- 13
5
¹⁄₂
(139.7)
2
³⁄₄
(69.9)
25/7.8
RASWW-5850 3
¹⁄₄
(82.6)
⁵⁄₈
- 11
5 (127.0)
1
⁵⁄₈
(41.3)
10/4.8
